Φ225mm Round Led Recessed Lights , Warm White 70lm/W Ultra Thin Led Recessed Light
Φ225mm Round Led Recessed Lights , Warm White 70lm/W Ultra Thin Led Recessed Light
Φ225mm Round Led Recessed Lights , Warm White 70lm/W Ultra Thin Led Recessed Light
Φ225mm Round Led Recessed Lights , Warm White 70lm/W Ultra Thin Led Recessed Light
Φ225mm Round Led Recessed Lights , Warm White 70lm/W Ultra Thin Led Recessed Light
Φ225mm Round Led Recessed Lights , Warm White 70lm/W Ultra Thin Led Recessed Light
Φ225mm Round Led Recessed Lights , Warm White 70lm/W Ultra Thin Led Recessed Light
Φ225mm Round Led Recessed Lights , Warm White 70lm/W Ultra Thin Led Recessed Light
Specifications
Brand Name :
Xiangteng
Model Number :
XT-BLAZ-SQ
Certification :
BIS CE
Place of Origin :
China
MOQ :
2000pcs
Supply Ability :
5000pcs/day
Delivery Time :
30 days
Packaging Details :
color box, standard export carton
Power :
18watt
Warranty :
2 years
Color Temperature :
pure white warm white
Product name :
LED panel
Ligth Efficiency :
70lm/w
Operating Voltage :
AC 85-265V
Description

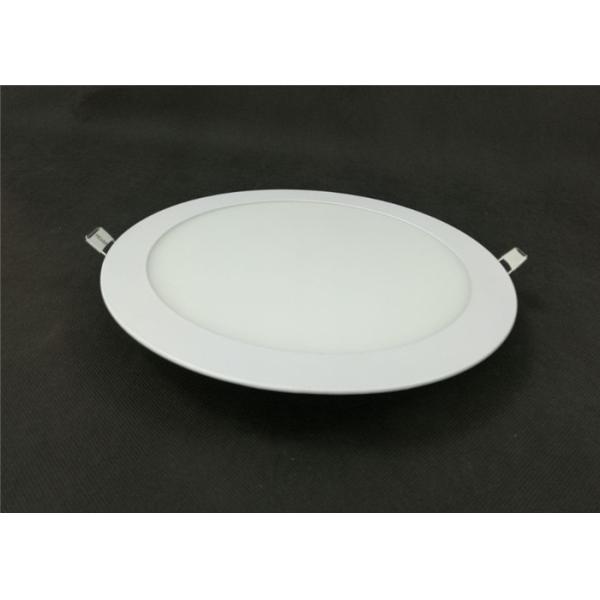

18W Φ225mm round recessed lighting super slim 70lm/W LED pane light

18W LED Panel Light , 1250 Lumens Description


With its stylish white gloss finish, this 18W LED panel light will definitely complement any ceiling in which you choose to install it .

It boasts a 120° beam angle that will provide excellent light coverage , especially given the light 1250 of Lumens of brightness it produces .

You’ll need to cut a 200mm hole in your ceiling to accommodate this light fitting , and it’ll fit quickly and easily into place , thanks to its two metal butterfly clips .

Depending upon the size of your space , you may require more or less illumination . That’s why we have such a wide variety of differently proportioned LED panel lights on offer .

These include surface mount panel lights, recessed panel lights . Also , to ensure your lights are correctly and neatly fitted , we have a wide selection of panel light mounting kits .

It’ll be a good idea for you to be aware of exactly how many LED ceiling lights you’ll need to provide the perfect level of illumination for your particular space .


Specification Table

Frame:
 White Gloss
Lumens:
 1250lm
Power:
 18w
Input Voltage:
 85-265V
Height (mm):
 18.8mm

Diameter (mm):

 225mm
Cutting Hole (mm):
 200mm
Life Hours:
 40,000
IP Rating:
 IP20
Warranty:
 2 Years



Data Parameters

Shape Type Model
(inch)		 Watt Actual watt
(±5%)		 Dimmesion
(mm)		 Cut Size
(mm)		 LED QTY
(pcs)		 Input Output
Voltage
(V)		 Output Current
(mA)		 PF CRI
(Ra)		 Lumen
(lm)		 lm/w
(±10%)
Round Recessed 2.5" 3W 2.8W Φ88*18.8 Φ70 15 85-265V 9-12V 250-260 0.4-0.55 70 115-141 45
3" 4W 3.8W Φ110*18.8 Φ90 20 12-24V 260-270 154-188 45
3.5" 6W 5.7W Φ120*18.8 Φ100 30 12-24V 260-270 257-314 50
4" 9W 8.6W Φ145*18.8 Φ130 45 18-36V 270-280 423-517 55
5" 12W 11.5W Φ170*18.8 Φ150 60 24-50V 270-280 667-815 65
6" 15W 14.5W Φ190*18.8 Φ170 75 36-63V 280-290 834-1019 65
8" 18W 17W Φ225*18.8 Φ200 90 36-63V 280-290 1077-1317 70
9.5" 20W 19W Φ240*20 Φ225 100 45-80V 280-290 1197-1463 70
12" 24W 23W Φ300*25 Φ275 120 54-84V 280-290 1436-1756 70



Applications

• General room lighting in ceilings , Suspended Ceilings , Soffits
• Damp locations
• Architectural lighting for corridors , pathways , and archways
• Display case lighting , Wall wash/accent lighting
• Coffered ceiling lighting
• Under cabinet lighting
• Marine and RV lighting
• Elevator lobby areas
• Sculpture and statue illumination
