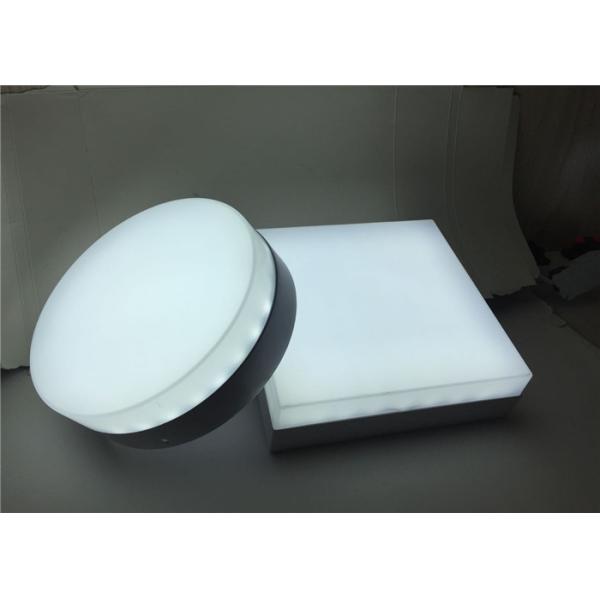

Surface Mounted Frameless LED Panel Light Warm White With Aluminum Alloy Shell
Surface Mounted Frameless LED Panel Light Warm White With Aluminum Alloy Shell
Surface Mounted Frameless LED Panel Light Warm White With Aluminum Alloy Shell
Surface Mounted Frameless LED Panel Light Warm White With Aluminum Alloy Shell
Surface Mounted Frameless LED Panel Light Warm White With Aluminum Alloy Shell
Surface Mounted Frameless LED Panel Light Warm White With Aluminum Alloy Shell
Surface Mounted Frameless LED Panel Light Warm White With Aluminum Alloy Shell
Surface Mounted Frameless LED Panel Light Warm White With Aluminum Alloy Shell
Specifications
Brand Name :
Xiangteng
Model Number :
XT-SSM
Certification :
BIS
Place of Origin :
China
MOQ :
500pcs
Supply Ability :
5000pcs/day
Packaging Details :
color box, standard export carton
Delivery Time :
30 days
Item Type :
panel lights
Installation :
Surface mounted
Shape :
round / square
Material :
aluminium alloy + PMMA
Power :
6W 12W 18W 24W 36W
Driver :
Isolated
Place of origin :
Guangdong China
IP rating :
IP44 Non warterproof
Description

300×300 Surface Mounted Frameless LED Panel Light , 36W LED Round Square Panel Light

Description for Frameless LED Panel Light

It is quite different from LED panel with normal aluminum frame , people can only see a piece of optical PC diffuser under the panel , so we call it "frameless led panel"
The frameless design fully change the conventional aesthetic conception of LED panel light , It is widely used for the office lighting , conference halls , hospitals , hotels, shopping malls , bar , coffee , house , restaurant , housing , workshop , showroom , counter , outdoor decoration , school , church etc

Benefits of Frameless LED panel lights

Full lighting , no frame visible when lighting

High quality 2835 SMD LED , Aluminum alloy shell
Widen light distribution area , reduce the dark area blocked by frame
Enhanced light guide panel , much higher light transmission rate
Edge-lit , even and soft light output
Instant start , even and soft light beam , without the feeling of dazzling , anti-glare
Over 40,000 hours lifetime , 50%-80% energy saving than fluorescent light
Solid-state , high shock or vibration resistant

Technical Descriptions

Type : panel light

Shell material : Aluminium alloy + Acrylic cover

Working temperature : -20°C ~ -65°C

Beam angle : 120 degree

input voltage : AC85-265V 50/60HZ

LED type : 2835 SMD LED
Emitting Colors : White(4000-7000K) , Warm white(2500-4000K)

Power consumption : 6W 12W 18W 24W 36W

Product Parameters

Model No

Power

Size (mm)

Luminous Flux

Voltage

(V)

CRI

CCT

Beam Angle

XT-LL-6W.R

6W

Ø90×55

480lm

AC85-265

≥70/80

2700-6500K

120º

XT-LL-12W.R

12W

Ø120×55

960lm

AC85-265

≥70/80

2700-6500K

120º

XT-LL-18W.R

18W

Ø180×55

1440lm

AC85-265

≥70/80

2700-6500K

120¤

XT-LL-24W.R

24W

Ø220×55

1920lm

AC85-265

≥70/80

2700-6500K

120º

XT-LL-36W.R

36W

Ø300×55

2880lm

AC85-265

≥70/80

2700-6500K

120º

XT-LL-6W.SQ

6W

90×90×55

480lm

AC85-265

≥70/80

2700-6500K

120º

XT-LL-12W.SQ

12W

120×120×55

960lm

AC85-265

≥70/80

2700-6500K

120º

XT-LL-18W.SQ

18W

180×180×55

1440lm

AC85-265

≥70/80

2700-6500K

120º

XT-LL-24W.SQ

24W

220×220×55

1920lm

AC85-265

≥70/80

2700-6500K

120º

XT-LL-36W.SQ

36W

300×300×55

2880lm

AC85-265

≥70/80

2700-6500K

120º

Surface Mounted Frameless LED Panel Light Warm White With Aluminum Alloy Shell
