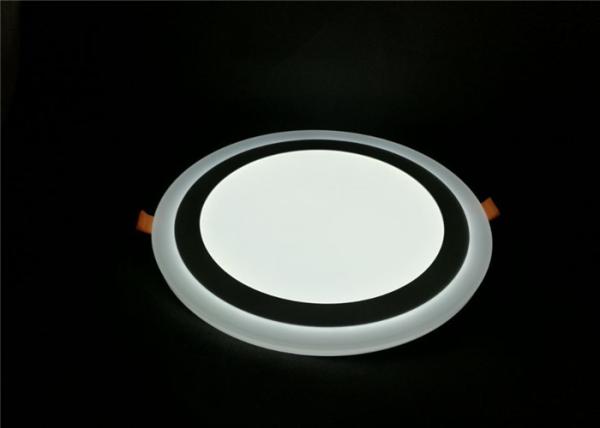

White+White 24W Round Recessed Two Color Led Panel for South America market
All in one fitting : 18W + 6W Recessed White+White LED Panel Light
This special light combination white edge and white central light fitting , which designed specially for the consumers from South America and Central America . They profer the double color white+white or white + warm white. Due to their own traditional culture.
Of course there are another color combination such as white + warm white combination , we can match the colors according to your requirements.
It is customized just for you ,unique light affect brings you a new lease of life . You can choose the light mode as you like just by simply turn the panel off and then back on and you'll cycle through the modes . Once you find the mode you want , just leave it.
it is perfect lighting solution for your home , office or commerical premises . Widely used for bedroom, sitting rooms , living room, guest room, gallery , corridor etc, sure it is also best for commercial lighting such as hotel , restaurant , club , bar , meeting room, exibition room, super market , department store etc.
A nice replacment for tradtional halogen and CFLs
It will also save you a great deal of money when you use it as a replacement for your existing halogen or fluorescent fittings . It consumes a total of just 24 Watts yet is able to generate the 1500 lumen equivalent of a 100 Watt traditional light – an 80% reduction to your lighting energy bill right there!
It is 40,000 hours life span , much longer traditional light sources . It shall work for your 14 years , even if switched on for 8 hours every day!
High CRI gives your the true color of the objects , and light evenly to protect your eyes . More important is that provides you three light choice from one light fitting , you can alter from one to the other freely..
Specification Table
Product Name | 18W+6W Recessed Mount Round Double Color LED Panel Light |
Central Light Lumens: | 1260-1440 Lumens |
Power: | 24W |
Light Color: | White (18W) + White (6W) |
Input Voltage: | AC 85-265V |
Dimension (mm): | Ø240*30mm |
Cut-out (mm): | Ø210mm |
Life Time : | 40,000 hrs |
Beam Angle: | 120º |
Dimmable: | No |
Edge Lit Colour: | Blue / Red / White / Pink / Yellow / Green |
Colour Rendering Index (CRI): | ≥ Ra 70/80 |
Power Factor | ≥0.5 |
IP Rating: | IP40 |
Warranty: | 2 Years |
Driver: | Isolated dirver |
Parameter Data
Shape | Install Type | Item No | Wattage | Dimension( mm) |
Round |
Surface |
XT-SSM-3+3W.R | 6W (3W+3W) | Ø105×30 |
XT-SSM-6+3W.R | 9W (6W+3W) | Ø145×30 | ||
XT-SSM-12+4W.R | 16W (12W+4W) | Ø190×30 | ||
XT-SSM-18+6W.R | 24W (18W+6W) | Ø240×30 | ||
XT-SSM-24+12W.R | 36W(24W+12W) | Ø320×40 | ||
XT-SSM-36+36W.R | 72W(36W+36W) | Ø390×40 | ||
Square |
Surface |
XT-SSM-3+3W.SQ | 6W (3W+3W) | 105×105×40 |
XT-SSM-6+3W.SQ | 9W (6W+3W) | 145×145×40 | ||
XT-SSM-12+4W.SQ | 16W (12W+4W) | 190×190×40 | ||
XT-SSM-18+6W.SQ |
24W (18W+6W) | 240×240×40 | ||
XT-SSM-24+12W.SQ | 36W(24W+12W) | 320×320×40 | ||
XT-SSM-36+36W.SQ | 72W(36W+36W) | 390×390×40 |
How to Install the Surface Panel
