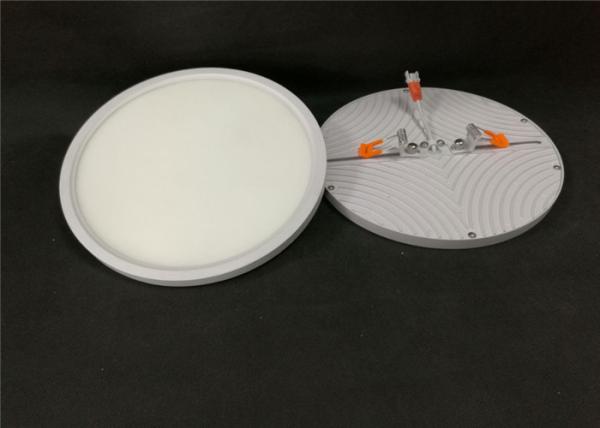

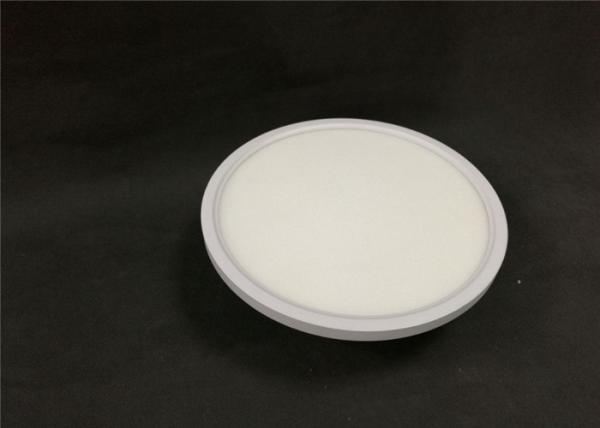

24W Recessed Led Panel Light Free Hole Cut Out Ceiling Slim Warm White AC 85-265V
24W Recessed Led Panel Light Free Hole Cut Out Ceiling Slim Warm White AC 85-265V
24W Recessed Led Panel Light Free Hole Cut Out Ceiling Slim Warm White AC 85-265V
24W Recessed Led Panel Light Free Hole Cut Out Ceiling Slim Warm White AC 85-265V
24W Recessed Led Panel Light Free Hole Cut Out Ceiling Slim Warm White AC 85-265V
24W Recessed Led Panel Light Free Hole Cut Out Ceiling Slim Warm White AC 85-265V
24W Recessed Led Panel Light Free Hole Cut Out Ceiling Slim Warm White AC 85-265V
24W Recessed Led Panel Light Free Hole Cut Out Ceiling Slim Warm White AC 85-265V
Specifications
Brand Name :
Xiangteng
Model Number :
XT-KD-24.R
Certification :
BIS CE
Place of Origin :
China
MOQ :
3000pcs
Supply Ability :
5000pcs/day
Delivery Time :
30 days
Packaging Details :
color box, standard export carton
Style :
modern
Country of origin :
China
Type :
LED panel light
Color :
day light / warm white / cool white
Dimmension :
225mm *35mm
Cut hole :
40-200 mm
Life time :
40000 hrs
Work voltage :
85-265V
Description

Adjustable Cutting Hole Size 24W Round Recessed Led Panel Light​

Product Features

This is the recessed led ceiling light , we have suggestions on the room you could use it which ranges from bedroom , play room , living room , dining room , laundry room , bathroom to kitchen , hallway , office , garage , study , porch , etc . Sometimes you may worry about a fixture alone is not enough to light up the whole room , an easy solution for this is to assemble multiple fixtures .　

　

What varies this product from the others is that this product can flexibly fit in the cut-out hole . if you are not quite accuracy in cutting holes, don't worry, we have a wider range of cut-out size from 40-200mm as long as you meet the range.

Product Specification

• Model : LED panel light

• Voltage : AC 85-265V

• Color : Paint white

• SMD : 2835

• Watt: 9W 18W 24W

• Craft die cast aluminium

• Brightness: 90lm/w

• Color rendering index (Ra): >70/80

• Power factor : >0.5

• Installation : recessed cut-out

• Life span : 40000 hrs

• Warranty : 2 years

How to Install

24W Recessed Led Panel Light Free Hole Cut Out Ceiling Slim Warm White AC 85-265V


Technical Parameters

Model No Shape Style Wattage Dimmension
(mm)		 Cut Size
(mm)
XT-KD-9W.R Round Recessed 9W Φ120*35 40-100
XT-KD-18W.R 18W Φ170*35 40*150
XT-KD-24W.R 24W Φ225*35 40*200
XT-KD-9W.SQ Square Recessed 9W 120*120*35 40-100
XT-KD-18W.SQ 18W 170*170*35 40*150
XT-KD-24W.SQ 24W 225*225*35 40*200

Application

Public places : exhibition , stage , stadiums , airports , theaters ,railway station , shopping malls , supermarkets , convenience stores , bars , cafes , restaurants etc.

24W Recessed Led Panel Light Free Hole Cut Out Ceiling Slim Warm White AC 85-265V
