Specifications
Brand Name :
Xiangteng
Model Number :
XT-TDAZ-18+18W-1COB
Certification :
BIS
Place of Origin :
China
MOQ :
500pcs
Supply Ability :
5000pcs/day
Delivery Time :
30 days
Packaging Details :
color box, standard export carton
Light Color :
white+yellow
Power Consumption :
36W (18W+18W)
Shape :
Round
Installation :
Recessed
Product Name :
COB downlights
Frequency :
50/60Hz
Power Factor :
>0.5
Housing Material :
die cast aluminium
Description

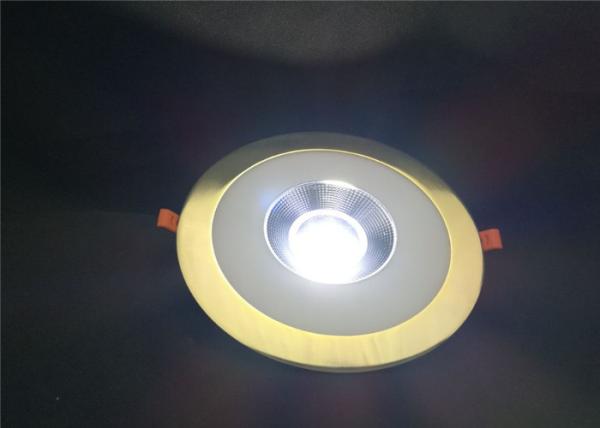

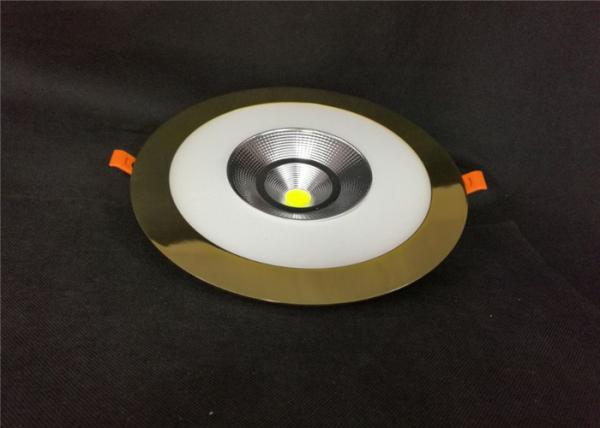

White+Yellow Double Color Recessed Round 18W+18W COB LED Downlight Golden Edge


Description For 36 Watt Recessed Double Color LED COB Downlight 1400lm


Sometimes a simple product that does all the hard work for you is the order of the day – and our 18W +18W Recessed LED COB Downlight fits the bill perfectly.

This double color COB downlight packs everything you need into one unit – downlight and panel light . multiple colors optional at the same time . There are many colors combination for your choice , they are white + blue , white + yellow , white + green , white + red , white + pink , and white +white also available.

You're not just stuck to the one mode however , if you just want the yellow circle light on for an effect and not much general illumination , you can do . Also, if you want just the white COB light on , you can do that also.

Your can match the light color for your COB downlight freely according to your lighting abience demands . They are widely used both for commerial and domestic lighting , such as hotel , restaurant , KTV , club , bar , exhibition display , department store , fashion shop , jewlery store , corridor , gallery , kitchen and study room etc.

The single 18W COB (chip on board) uses just 18W of energy to provide 1400 lumens of light. An equivalent halogen would use over 13 times more energy – a whopping 200W!

It’s easy to install too – as it uses standard 85-265V mains input voltage and only requires a 205mm cutting hole to use.

The narrow 60º COB beam angle makes it ideal for feature and accent lighting , giving it a clearly defined purpose.

Can I Customise My Downlight?


There are a couple of options you can change on your COB downlight to make it perfect for your needs .

The first is what kind of colour temperature you would like the COB to emit . This is simply a measure of how warm the light looks , and uses Kelvins as the unit of measurement .

Warm white appears close to how traditional halogens look , and help create a cosy atmosphere which works great in the living room and bedroom.

Cool white is very different in that it is brighter and icier . This works much better in places like the office or kitchen.

Why Should I Use LEDs?


There are loads of reasons to make the switch to LEDs . Chief among these are the money saving benefits.

It starts with how energy efficient LEDs are compared to traditional bulbs . Incandescent lights lose up to 80% of their energy to heat wastage alone , making them massively inefficient.

LEDs on the other hand only lose around 10% - making them up to 10 times more efficient . As a result, they use far less energy – so your electricity bills come for considerably less.

The cooler operating temperature also means that there is less wear and tear on your LEDs , and this results in much longer life – up to 40,000 hours on this downlight . Ultimately , this means you’ll spend a lot less on replacement bulbs , giving you even more savings.

Data Sheet For 36W Double Color LED Downlight

Item No: XT-TDMZ-18+18W-1COB
Item Name: Double Color Recessed COB LED Downlight
Lamp Power: 18W(cool white) + 18W(red)
Diameter: Ø225mm
Cutting Size Ø205mm
Colours Combination: white+pink / white+green / white+red / white+warm white
white+blue / white+white
Material: Die Cast Aluminium + PS
Luminous Flux: COB : 1400-1500lm
Input Voltage: AC85-265V
Frequency Range: 50/60Hz
Light Source: COB Chip / SMD 2835
Color Rendering Index(CRI): Ra=70
Power Factor(PF): >0.5
Beam Angle: 120°
Working Lifetime(Hour) : >40000 hrs
IP Rating : IP20
Color Temperature: 3000K-6000K
Luminous Efficiency: >80lm/w
TC: 80°C
TA: 50°C (max)
Warranty: 2 years

Depending on where you need to use your recessed COB downlight , 1400 lumens may be too bright . Don’t worry, as we have a whole range of COB LED downlights to choose from, varying in design , power and brightness

Shape Type Item No Wattage Diameter( mm) Cut-Out(mm)

Round

Recessed

XT-TDAN-6+6W.R 6W+6W Ø120 Ø105
XT-TDAN-12+12W.R 12W+12W Ø180 Ø160
XT-TDAN-18+18W.1COB 18W+18W Ø220 Ø205
XT-TDAN-18+18W.3COB 18W+18W Ø220 Ø205

Round

Surface

XT-TDMZ-6+6W.R 6W +6W Ø120
XT-TDMZ-12+12W.R 12W+12W Ø180
XT-TDAN-18+18W.1COB 18W+18W Ø225
XT-TDAN-18+18W.3COB 18W+18W Ø225


Recommended Applications


1. Illumination lighting for homes , offices , restaurants , hotels , malls , casinos , bars etc
2. Display lighting for museums , galleries , stores , malls , shop windows , exhibitions etc
3. Landscape accent , spot Lighting , architectural Lighting , display case accent , artwork lighting, mood
lighting, amusement park accent.
