Specifications
Brand Name :
XENTER
Model Number :
XT-FCDTY-20W
Certification :
BIS CE RoHS IP65
Place of Origin :
China
MOQ :
500pcs
Supply Ability :
5000pcs/day
Delivery Time :
25-30 days
Packaging Details :
color box, standard export carton
Place of orign :
China
Housingd Materials :
PP + Alloy PP
Lighting Source :
2835 SMD
OEM :
Yes
Work Voltage :
100-265V AC
Power Consumption :
15 waa / 20 watt
Guarantee :
3 years / 2 years / 1 year
Color Rendering Index :
>80
Power Factor :
>0.5
Weatherproof :
IP65
Application :
Interior / Exterior Lighting ,
Lamp Shape :
Oval
Base Color :
white / black
Description

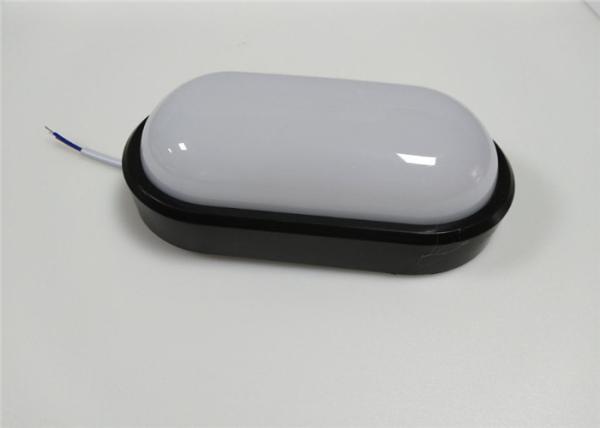

Waterproof 20W LED Luminaire (IP65) Oval Bulkhead for all Exterior Applications

Weatherproof Bulkhead Lights Features

• Easy installation , just twist on/off the lamp.

• 120° beam angle

• Optional base colours: black and white

• SMD 2835 light source, more energy saving

• Perfect replacement of traditional luminaires and bulkheads

• All plastic housings, light in weight , more economical and practical

• Built in driver, bobust construction tested up to IP65 impact resistance
• Sealed to IP65 for protected exterior applications
• Color temperature: white , natural white, and warm white available
• 2 finish colours: white and black
• White PP diffuser ensuring homogeneous light effect and visual comfort
• Three luminous efficicency optional: 120lm/w (3 years warranty), 100lm/w (2 years warranty), 80lm/w (1 year warranty)

About LED Luminaire (IP65) Bulkhead Lamp


IP65 LED Bulkhead luminaires are designed specially for all exterior applications, with eye-catching design to replace most traditional bulkheads , wall lights , and ceiling lights, or as the main security/comfort lighting in residential and commercial exterior applications.

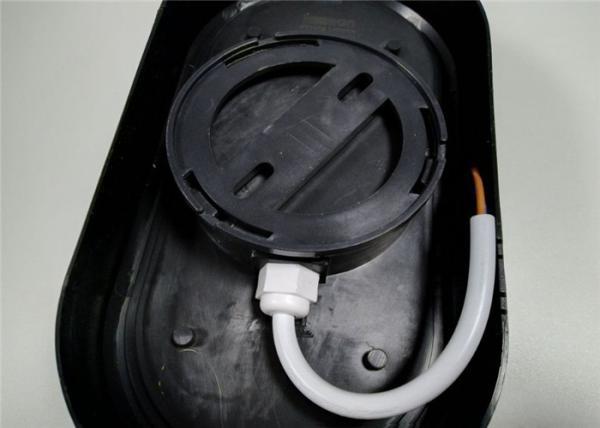

With no visible screws design, this unique design make it super-fast installation, just by twist on/off the light once you fixed the plastic bracket by two screws.
More suitable for coastal environments , or damp circumstances such as bathroom, or steam room , Kitchen etc. Also perfect lighting for some places such as tunnels, countyard where there are more dust and insects , it sealed design is effective to stop the dust and mosquitos.


IP65 Oval Bulkhead Light

Model No. XT-FCDTY-15W /20W
Dimmension (mm) 214*112*69mm / 270*143*78mm
Shape Oval
Light Source LED 2835 SMD
Power Consumption 15 watt / 20 watt
Luminous Efficency 120lm/w 100lm/w 80lm/w
Working Voltage AC100-265V
Working Frequency 50/60Hz
Power Efficiency >95%
Power Factor >0.5
Color Temperature WW:3000-3500K / NW: 4000-4500K / W:6000-6500K
Color Rendering Index Ra>80
Beam Angle 120º - 140º
Color of Base Black / White
Housing Materials PP Diffuser + Alloy PP Base
IP Rate IP65
Equal to Incandescent Lamp 150W / 200W
Working Temperature -20℃ to +60℃
Working Humidity 10-70% RH
Dimmable No
Warranty 3 years / 2 years / 1 year
Certificate IP65 CE RoHS BIS
Application Indoor / Outdoor Lighting
PCS/CTN 40pcs / 20pcs
CTN Size 50*37*46cm / 62*42*29.5cm


Application
Perfect for practically all indoor and outdoor areas and tested rigorously to ensure water resistance for protection against high levels of dust and splashing water, such as Bath Rooms , Bed Rooms, Dinning Rooms , Restaurants , Office , Kitchen, Hallway , Corridor , Utility , Garden , Shed , Workshop, Patio , Car Washing Stations, Parking Lot , Tunnels , Warehouse , Store , Amenity, Healthcare , Social Housings,, Communal Areas, Apartments & Residential , Exteriors etc.

Caution
1. Cut off the power before installation
2. Cant be used as emergency light
3. To keep them away for the flammable objects.
4. The environment temperature of the lamp operation: -20Ċ~+60Ċ
5. Do not try to open this unit ,they are sealed completely.
6. To install it by professional electrician.
