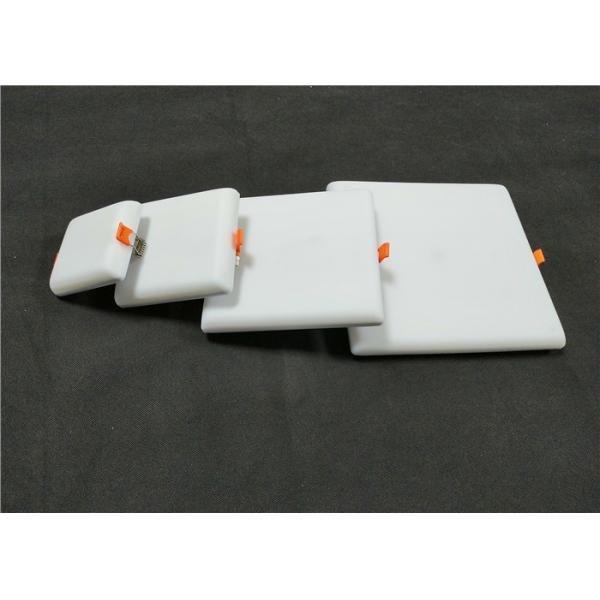

Slim Frameless Square LED Panel Light 18 W Suspended Natural White
Slim Frameless Square LED Panel Light 18 W Suspended Natural White
Slim Frameless Square LED Panel Light 18 W Suspended Natural White
Slim Frameless Square LED Panel Light 18 W Suspended Natural White
Slim Frameless Square LED Panel Light 18 W Suspended Natural White
Slim Frameless Square LED Panel Light 18 W Suspended Natural White
Slim Frameless Square LED Panel Light 18 W Suspended Natural White
Slim Frameless Square LED Panel Light 18 W Suspended Natural White
Specifications
Brand Name :
XENTER
Model Number :
XT-WBFY-18W
Certification :
BIS CE RoHS IP65
Place of Origin :
China
MOQ :
500pcs
Supply Ability :
5000pcs/day
Delivery Time :
25-30 days
Packaging Details :
color box, standard export carton
Commodity Description :
Rimless Adjusatable Ceiling Light
Wattage :
18 Watts
Dimmension :
120mm*120mm*40mm(H)
Cut Out :
50-110mm
Shape :
Square
Style :
Suspended
Lighting Application :
Indoor
Case Material :
Die Cast Aluminium
Diffusor Material :
PP
Output Light :
Warm White, Natural White, Cool White
Dimmable :
No
Driver :
Isolated / Non Isolated
Description


Slim Frameless Square 18W LED Panel Light with Adjustable Cut Hole Ceilihg Lamp

• 18W Led downlight , slim panel with 1400 lumens.
• Adjustable clamping clips allow installation in holes from 5 to 11 cm, thus avoiding problems when fitting the downlight in existing holes.
• The rimless shape allow to reach 180º beam angle, better light effect , more bright to decorate the space

• New design backlit panel light, super bright, luminous efficiency 90lm/w

• High efficiency constant currency driver, making the products can work under unstable voltage.
• Instant start, no flickering, no humming.
• Environmental friendly, no mercury and lead-free.Energy saving,green lamp.
• Long Lifespan 30000 hours.



Product Specification

Wattage 18 Watt
Mount Type Concealed Mount
Shape Square
Dimmension (L*W) 120mm*120mm
Cut Out 50-110mm
Input Voltage AC85-265V
Lamp Type LED SMD2835
Housing Materials Die Cast ALuminium
Luminous Efficiency 90lm/w
Lumens 1400lms
Diffusor Mateiral PP
Frequency 50/60Hz
LED Driver Isolated / Non Isolated available
Power Factor >0.5
Colour Rendering Index (CRI) Ra>70/80
Dimmable Non-Dimmable
Colour Temperature 3000K 4000K 6000K 8000k
Warranty 2 years


Slim Frameless Square LED Panel Light 18 W Suspended Natural White

Lighting Application

• General room lighting in ceilings , Suspended Ceilings
• Damp locations
• Architectural lighting for corridors , pathways , and archways
• Coffered ceiling lighting
• Under cabinet lighting
• Marine and RV lighting
• Elevator lobby areas
• Sculpture and statue illumination


Warnings

1. Cut off the power before installation
2. Cant be used as emergency light
3. To keep them away for the flammable objects.
4. The environment temperature of the lamp operation: -20Ċ to +60Ċ
5. Do not try to open this unit , they are sealed completely
6. To install it by professional electrician
