Specifications
Brand Name :
XENTER
Model Number :
XT-WBYX-18W
Certification :
BIS CE RoHS IP65
Place of Origin :
China
MOQ :
500pcs
Supply Ability :
5000pcs/day
Delivery Time :
25-30 days
Packaging Details :
color box, standard export carton
Product Description :
Frameless Free Cutout Panel
Power Consumption :
18 Watts
Panel Size :
Dia: 120mm
Cut Hole Size :
Dia: 50-110mm
Shape :
Round
Install Type :
Concealed
Application :
Indoor Lighting
Housing Material :
Die Cast Alu+PP
Dimmable :
No
CCT :
Warm White, Neutral White, Cool White , Bicolor
Used for :
Replacement of damaged lighting fixture
Warranty :
2 years
Description

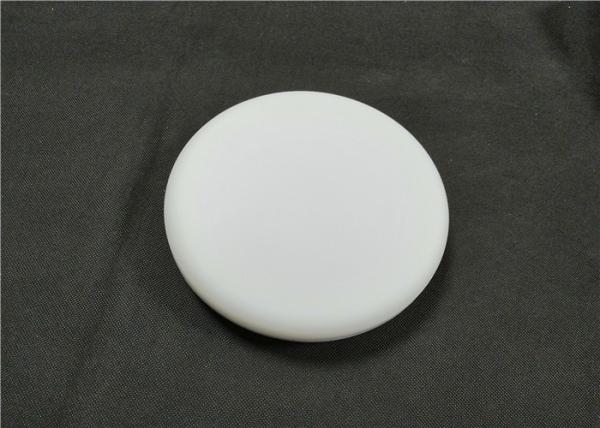

18W Round Frameless Adjustable Indoor Lamp Die Cast Aluminium LED Panel Light


About 18W Ajustable No Frame Design LED Panel Light

New version panel light no opening size restrict, outer size 12cm pop , cut size is adjustable between 5cm and 11cm, .

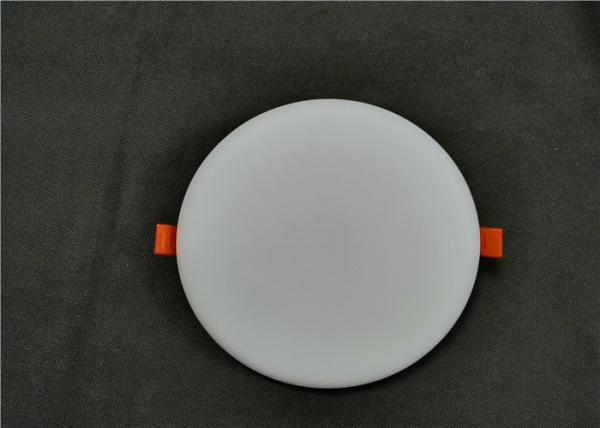

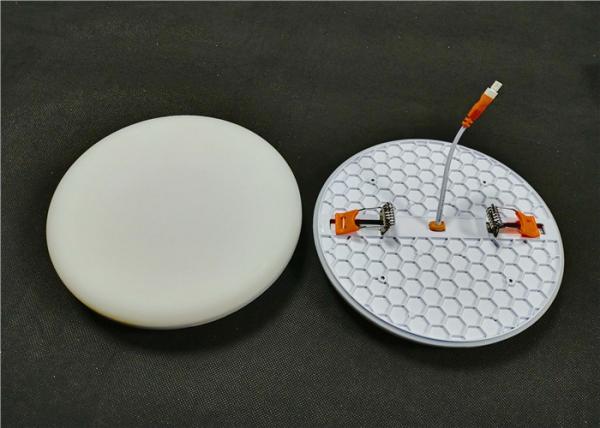

Two adjustable movable buckles can solve your hole size worry The LED downlight can be installed perfectly in the mounting hole larger than 5cm and up to 11cm , it can cover any shape of the downlight body.
Ultra-thin downlight body design the thickness of the edge is about 2cm, die cast aluminum lamp body, anti-rust and anti-color, impact resistance, long life, more stable high quality PP frosted lampshade, strong light transmission, no dark areas.
High quality material made of high quality die cast aluminum , to assure of high grade panel light
Back lit , larger beam angle 180º High luminous efficiency 90lw/w , total 1600 lumens
Output light colour white colour, warm white , natural white , can be also double color




Product Specification

Power Consumption 18 watts
Install Type Recessed
Lamp Shape Round
Dimmension (D*H) Ø120mm*H40mm
Cut Out Size Ø50-110mm
Work Voltage AC85-265V
Lamp Type LED SMD2835
Housing Materials Die Cast ALuminium + PP
Luminous Efficiency >90lm/w
Lumens 1600lms
Diffusor Mateiral PP
Frequency 50/60Hz
LED Driver Isolated / Non Isolated available
Power Factor >0.5
Colour Rendering Index (CRI) Ra>70/80
Dimmable Non-Dimmable
Colour Temperature 3000K 4000K 6000K 8000k, Bi Color
Beam Angle 180º


18 Watt Indoor Ceiling LED Panel Light Warm White 90lm/w Ra>70

Lighting Application


LED panel light is a high-grade indoor lighting lamps, its outer frame is made of aluminum alloy anodized, the light source is LED, the whole lamp design is beautiful and simple, luxurious atmosphere, not only good lighting effect, but also can give people the feeling of beauty.
LED panel lamp design is unique, the light after the high transmittance of the light guide plate to form a kind of uniform plane luminous effect, illumination uniformity is good, the light is soft, comfortable and bright, can effectively alleviate eye fatigue.LED panel lights also protect against radiation and do not irritate the skin of pregnant women, the elderly or children.



Warnings

1. Cut off the power before installation
2. Cant be used as emergency light
3. To keep them away for the flammable objects.
4. The environment temperature of the lamp operation: -20Ċ to +60Ċ
5. Do not try to open this unit , they are sealed completely
6. To install it by professional electrician
