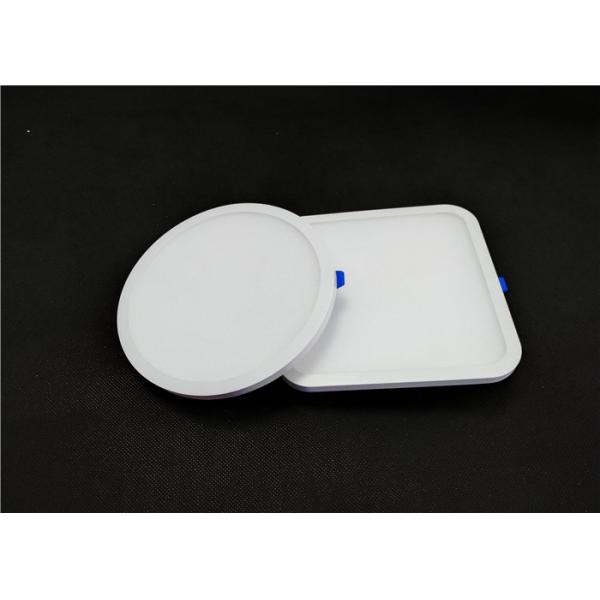

12 W Slim Border Flat Led Recessed Light Super Bright 1200lm PF>0.9
12 W Slim Border Flat Led Recessed Light Super Bright 1200lm PF>0.9
12 W Slim Border Flat Led Recessed Light Super Bright 1200lm PF>0.9
12 W Slim Border Flat Led Recessed Light Super Bright 1200lm PF>0.9
12 W Slim Border Flat Led Recessed Light Super Bright 1200lm PF>0.9
12 W Slim Border Flat Led Recessed Light Super Bright 1200lm PF>0.9
12 W Slim Border Flat Led Recessed Light Super Bright 1200lm PF>0.9
12 W Slim Border Flat Led Recessed Light Super Bright 1200lm PF>0.9
Specifications
Brand Name :
Xiangteng
Model Number :
XT-AZZB-RD-18W
Certification :
BIS CE RoHS, EMC
Place of Origin :
China
MOQ :
2000pcs
Supply Ability :
5000pcs/day
Delivery Time :
30 days
Packaging Details :
color box, standard export carton
Material :
Poly Carbonate+Aluminium Plate
Power Factor :
>0.9
Style :
Concealled
Built-in Driver :
Yes
Luminous Flux :
1200lm
Luminous Efficiency :
100lm/w
Description
Side Emitting 12W All PC Integrated Slim Border Round Panel Light super bright 100lm/w PF>0.9​
Competitve Advantages
• Super slim border, wide light angle.
• Built in driver, integarted design as BIS standard
• CE standard design, with LED driver separately
• All poly carbonate housings, with auminium reflective cup inside
• Luminous efficiency >100lm/w , luminous flux >1200lm
• High PF design >0.9
• Work Voltage: AC100-265V
• LED driver: non isolated / isolated
Specifications

Power: 12W
Work Voltage: 85-265V AC, 110-265V AC

Color Rendering Index (CRI): >70

SMD Type: 2835

Housing Materials: Poly Carbonate + Aluminium Reflective Cup

Dimmension: Ø130mm

Cut Hole: Ø100mm

Power Factor: >0.9

CRI: Ra>70
CCT: 3000-6500K

Technical Parameters

Shape

Style

Watt

Dimension Cutout

Luminous Efficiency

Housing

 SMD

CRI

Driver

Voltage

PF

Round

Recessed

 12W ø130mm ø100mm

100lm/w

PC+Alu Cup

2835

Ra>70

Non Isolated

100-265V

>0.9
18W ø185mm ø160mm
22W ø225mm ø200mm

Square

Recessed

 12W 130*130mm 100*100mm

100lm/w

PC+Alu Cup

2835

Ra>70

Non Isolated

100-265V

>0.9
18W 185*185mm 160*160mm
22W 225*225mm 200*200mm

Round

Surface

 12W ø130mm /

100lm/w

PC+Alu Cup

2835

Ra>70

Non Isolated

100-265V

>0.9
18W ø185mm /
22W ø225mm /

Square

Surface

 12W 130*130mm /

100lm/w

PC+Alu Cup

2835

Ra>70

Non Isolated

100-265V

>0.9
18W 185*130mm /
22W 225*225mm /

12 W Slim Border Flat Led Recessed Light Super Bright 1200lm PF>0.9

Applicable For

• It is perfect option for low plenum clearance for indoor lighting, such as residential, hospitality, school, underground park, restaurant, hotel, supermarket, showroom, meeting room , workshop, office , exhibition hall , commercial and multifamily

• applications with confined, hard to reach spaces such as closets, attics, hallways, stairwells, elevators, soffits, porches and entry ways.

Attention
1. Cut off the power before installation
2. Cant be used as emergency light
3. To keep them away for the flammable objects.
4. The environment temperature of the lamp operation: -20Ċ to +60Ċ
5. Do not try to open this unit , they are sealed completely
6. To install it by professional electrician
