IP20 6 Watt Led Panel Light Built In Driver LED Ceiling Light PC+Alu 28lm/W
IP20 6 Watt Led Panel Light Built In Driver LED Ceiling Light PC+Alu 28lm/W
IP20 6 Watt Led Panel Light Built In Driver LED Ceiling Light PC+Alu 28lm/W
IP20 6 Watt Led Panel Light Built In Driver LED Ceiling Light PC+Alu 28lm/W
IP20 6 Watt Led Panel Light Built In Driver LED Ceiling Light PC+Alu 28lm/W
IP20 6 Watt Led Panel Light Built In Driver LED Ceiling Light PC+Alu 28lm/W
IP20 6 Watt Led Panel Light Built In Driver LED Ceiling Light PC+Alu 28lm/W
IP20 6 Watt Led Panel Light Built In Driver LED Ceiling Light PC+Alu 28lm/W
Specifications
Brand Name :
Xiangteng
Model Number :
XT-CBAM-RD-6W
Certification :
BIS CE RoHS, EMC
Place of Origin :
China
MOQ :
2000pcs
Supply Ability :
5000pcs/day
Delivery Time :
30 days
Packaging Details :
color box, standard export carton
Item Type :
LED Lights
Shape :
Round
Power Factor :
0.5 / 0.9
Light Guide Plate :
PS
IP Rating :
IP20
LED Source :
26-28lm/w
Description
Ultra-Thin LED Round Light Panels Built In Driver LED Ceiling Light 6W PC+Alu Housing
Description
Ultra Thin LED Light Panels from Environmental Lights create a bright and uniform light surface. The Ultra Thin LED Light Panels
are energy efficient, light weight, easy to configure, customizable.
Built in driver makes it integrated design, more safe and cost save

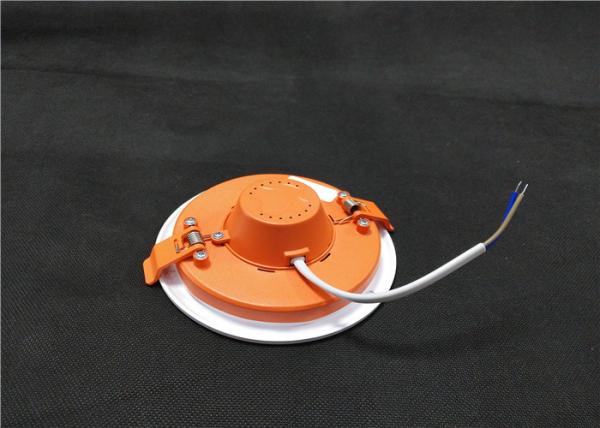

With the PC switch bracket, to realize your demand from concealed panel light to surface panel light. PC switch bracket design specially for 6W 12W 18W panels, which are popular models.

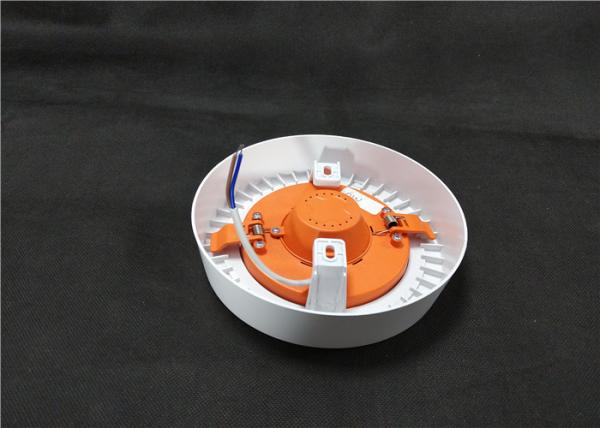

Poly carbonate housings with aluminium cup inside, to release the interior heat effectively.
Advanced Features
• BIS, CE, EMC approvals
• With switch bracket for 6W 12W 18W specially
• Ultra Slim edge in thickness: 0.5cm
• Edge-lit , soft light distribution evenly, makes comfortable circumstances
• Non isolated driver and isolated driver design
• Low PF:0.5 and High PF:0.9
• AC85-265V and AC100-265V, to light all over the world
• Poly carbon and aluminium cup inside, it is effectively to release heat consumption
Technical Parameters

Shape

Size
(Inch)

Watt

Style

 Dimmension (mm)

PF

CRI

LGP

Housing Materials
Out Size
±1		 Cut Size
±1		 Height
±1

RD

 3.5〃 6W

Recessed

 Ø118 Ø100 33

0.5/0.9

>70

PS

PC+Alu
4〃 9W Ø143 Ø128 33
5〃 12W Ø170 Ø150 33
6〃 15W Ø193 Ø170 33
8〃 18W Ø223 Ø200 33

SQ

 3.5〃 6W

Recessed

 118*118 100*100 33

0.5/0.9

>70

PS

PC+Alu
4〃 9W 146*146 128*128 33
5〃 12W 170*170 150*150 33
6〃 15W 193*193 170*150 33
8〃 18W

223*223

 200*200 33

RD

 3.5〃 6W

Surface

 Ø150 / 35

0.5/0.9

>70

PS

PC+Alu
5〃 12W Ø199 / 35
8〃 18W Ø250 / 35

SQ

 3.5〃 6W

Surface

 150*150 / 35

0.5/0.9

>70

PS

PC+Alu
5〃 12W 199*199 / 35
8〃 18W 250*250 / 35

IP20 6 Watt Led Panel Light Built In Driver LED Ceiling Light PC+Alu 28lm/W

Applicable For

• It is perfect option for low plenum clearance for indoor lighting, such as residential, hospitality, school, underground park, restaurant, hotel, supermarket, showroom, meeting room , workshop, office , exhibition hall , commercial and multifamily

• applications with confined, hard to reach spaces such as closets, attics, hallways, stairwells, elevators, soffits, porches and entry ways.

Attention
1. Cut off the power before installation
2. Cant be used as emergency light
3. To keep them away for the flammable objects.
4. The environment temperature of the lamp operation: -20Ċ to +60Ċ
5. Do not try to open this unit , they are sealed completely
6. To install it by professional electrician
