Ova LED Bulkhead Lamp With Pir Black / White Case 15W IP65 High Impact Resistance
Ova LED Bulkhead Lamp With Pir Black / White Case 15W IP65 High Impact Resistance
Ova LED Bulkhead Lamp With Pir Black / White Case 15W IP65 High Impact Resistance
Ova LED Bulkhead Lamp With Pir Black / White Case 15W IP65 High Impact Resistance
Ova LED Bulkhead Lamp With Pir Black / White Case 15W IP65 High Impact Resistance
Ova LED Bulkhead Lamp With Pir Black / White Case 15W IP65 High Impact Resistance
Ova LED Bulkhead Lamp With Pir Black / White Case 15W IP65 High Impact Resistance
Ova LED Bulkhead Lamp With Pir Black / White Case 15W IP65 High Impact Resistance
Ova LED Bulkhead Lamp With Pir Black / White Case 15W IP65 High Impact Resistance
Ova LED Bulkhead Lamp With Pir Black / White Case 15W IP65 High Impact Resistance
Ova LED Bulkhead Lamp With Pir Black / White Case 15W IP65 High Impact Resistance
Ova LED Bulkhead Lamp With Pir Black / White Case 15W IP65 High Impact Resistance
Specifications
Brand Name :
XENTER
Model Number :
XT-FCDOV-15W
Certification :
BIS CE RoHS IP65
Place of Origin :
China
MOQ :
500pcs
Supply Ability :
5000pcs/day
Delivery Time :
25-30 days
Packaging Details :
color box, standard export carton
Construction Materials(Lighting) :
Plastic
Color Temperature Descripation :
White / Warm White
Color Temperature Value :
3000K / 4000K / 6000K
Dimmable :
Non Dimmable
IP Rating :
IP65
Lamp Type :
LED
Manufacturer Guarantee :
3 Years / 2 Years / 1 Year
PCS in Pack :
1 PC
Product Type :
Bulkhead
Power Voltage Supplied :
AC 100-265V
Housing Color :
White / Black
Product Depth :
69mm
Dimmension :
214*112*69mm
Description

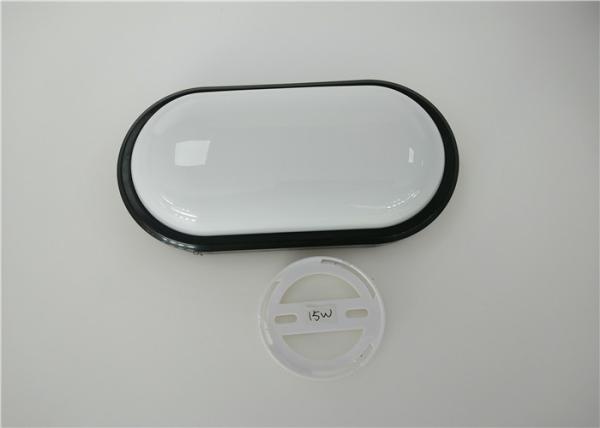

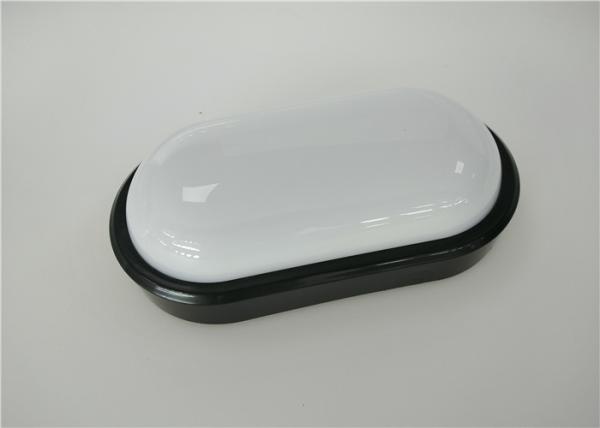

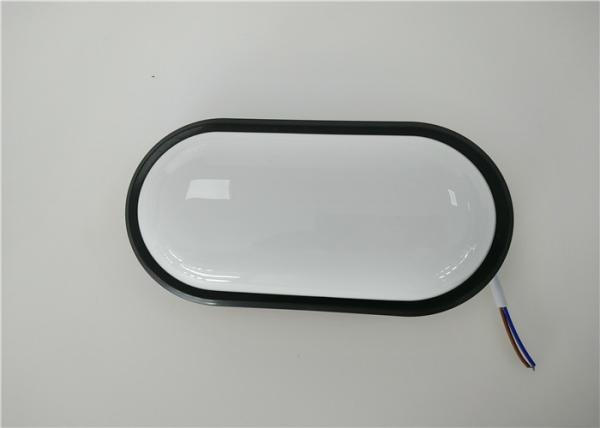

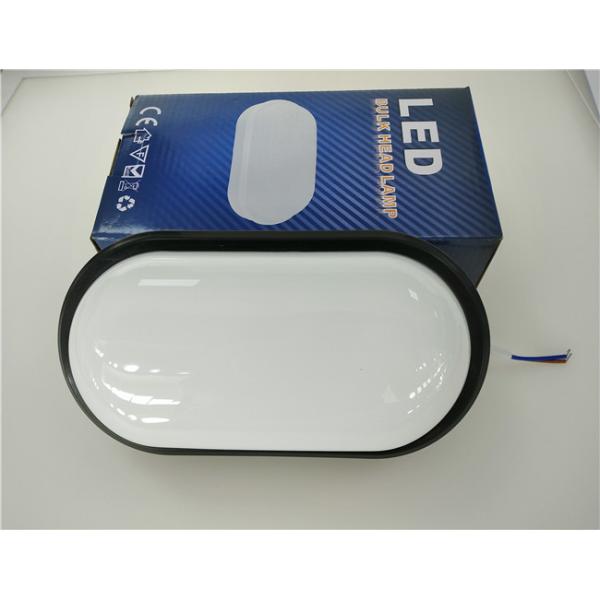

Oval LED Outdoor Bulkhead Wall Lights With Pir Black/White Case 15W IP65​

Product Features

Oval bulkhead supplied with both black and white trims. A low energy LED replacement for traditional incandescent wall and ceiling light fittings. All plastic construction , PP diffusor and alloy PP case with a high impact resistance of moisture.

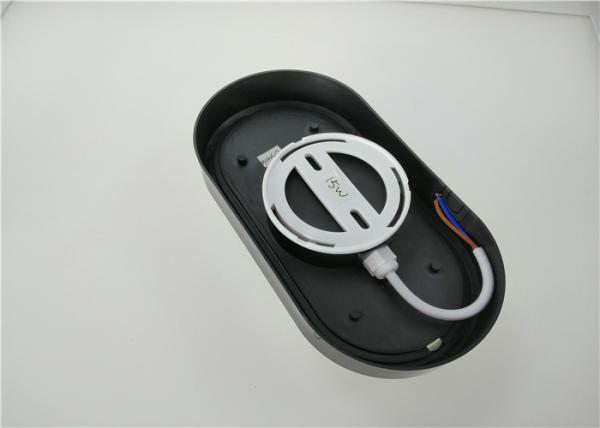

Large connector block with 2 cable entry points for ease of loop-in/loop-out.

Ideal for use in sheltered outdoor common areas, gardens, hotels, pubs and restaurant walkways.

Can be installed on a wall, patio or porch.

• IP65
• Opal PP diffusor / alloy PP case
• Energy Efficient
• 15W per Lamp
• Guarantee opitional : 3 Years , 2 Years and 1 year

• Luminous efficiency opitional : 120lm/w , 100lm/w and 80lm/w
• High Efficacy
• High Impact Resistance


Oval Bulkhead Lights Specifications

Model No. XT-FCDOV-15W / 20W
Type Wall mount
Shape Oval
Dimmension (mm) 214*112*69 / 270*143*78
Voltage Rating AC100-265V
Light Source LED 2835 SMD
Rated Wattage 15W /20W
Actual Wattage 15W / 20W (±5%)
Luminous Efficency 120lm/w 100lm/w 80lm/w
Output Colour 3000K 4000K 6500K
Work Frequency 50/60Hz
Power Efficiency >95%
Power Factor >0.5
CRI Ra>70/80
Beam Angle 120° - 140º
Base Colour Black / White
Housing Materials Diffuser:PP+ Base:Alloy PP
IP Rate IP65
Working Temperature -20℃ to +60℃
Working Humidity 10-70% RH
Dimmable No
Guarantee 3 years / 2 years / 1 year
Certificate IP65 CE RoHS BIS
Application Interior / Exterior
PCS/CTN 40pcs / 20pcs
CTN Size 50*37*46cm / 62*42*29.5cm

Ova LED Bulkhead Lamp With Pir Black / White Case 15W IP65 High Impact Resistance


Application

Perfect for interior wall and exterior wall and ceiling lighting , ideal lighting for Tunnels , Parkinig lots , the Subway Stations , Workshops , Corridors , Community , Bath Rooms , Bed Rooms , Dinning Rooms , Restaurants , Office , Kitchen , Hallway , Utility , Staircase , Garden , Countyard , Bus Station , Shed , Patio , Car Washing Stations etc.

Attention
1. Cut off the power before installation
2. Cant be used as emergency light
3. To keep them away for the flammable objects.
4. The environment temperature of the lamp operation: -20Ċ to +60Ċ
5. Do not try to open this unit , they are sealed completely
6. To install it by professional electrician
