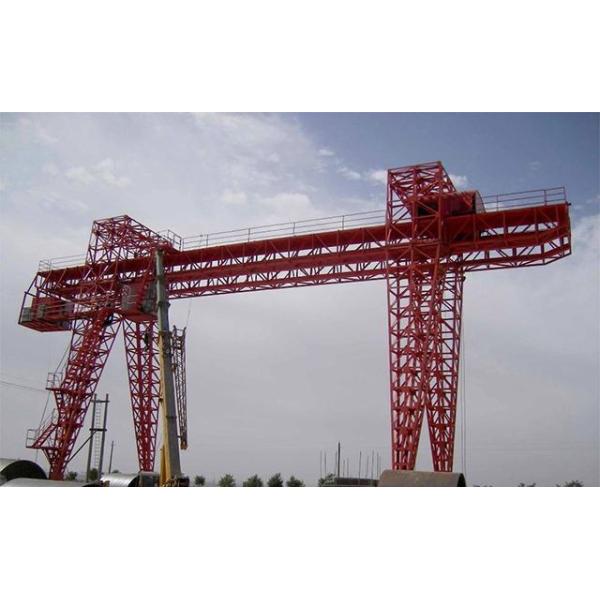

Outdoor Steel Heavy Duty Double Gantry Crane 5 - 50t With Electric Hoist
Outdoor Steel Heavy Duty Double Gantry Crane 5 - 50t With Electric Hoist
Outdoor Steel Heavy Duty Double Gantry Crane 5 - 50t With Electric Hoist
Outdoor Steel Heavy Duty Double Gantry Crane 5 - 50t With Electric Hoist
Outdoor Steel Heavy Duty Double Gantry Crane 5 - 50t With Electric Hoist
Outdoor Steel Heavy Duty Double Gantry Crane 5 - 50t With Electric Hoist
Outdoor Steel Heavy Duty Double Gantry Crane 5 - 50t With Electric Hoist
Outdoor Steel Heavy Duty Double Gantry Crane 5 - 50t With Electric Hoist
Specifications
Brand Name :
Bestaro
Model Number :
BT-20T
Certification :
CE
Place of Origin :
Henan,China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
500 sets per year
Delivery Time :
45 workdays
Packaging Details :
Export standard packaging
Keywords :
RMG / Rail Mounted Gantry Crane
Span :
5-40m or on request
Max. lifting height :
9m,12m,6m
Lifting load :
5~20T
working level :
A3 - A5
Crane feature :
Easy Operated Girder Bridge Crane
Application :
Bridge Construction
Condition :
New
Lifting mechanism :
Electric Winch,Electric Hoist
Power source :
3 Phase 380V 50hz
Feature :
Gantry Crane
Description

Outdoor Steel Heavy Duty 5 - 50t Double Gantry Crane With Electric Hoist

Introduction:

The gantry crane runs on the track laid on the ground, and the lifting capacity ranges from 5 tons, 10 tons, 16 tons, 20 tons to 600 tons.

Gantry cranes are widely used in various industries, including manufacturing, construction, shipping, and logistics. They are capable of lifting and moving heavy loads with precision and efficiency. The lifting capacity of a gantry crane can range from a few tons to several hundred tons, depending on its design and configuration.

Gantry cranes are typically operated by a combination of manual controls and electrical or hydraulic systems. They can be equipped with various lifting mechanisms, such as wire rope hoists or electric chain hoists, to handle different types of loads.

Technical Parameter:

Capacity (ton) 5 10 16/3.2 20/5 32/5 50/10
Span (m) 18, 22, 24, 26, 30, 35
Lifting height (m) 10, 11, 12
Working class A5
Control way Cabin control or remote control
Power source 380V 50HZ 3phase (Could supply it as yours)
Trolley lifting mechanism

Lifting speed

(m/min)

 Main hook 11.3 8.5 7.9 7.2 7.5 5.9
Auxiliary hook - - 14.6 15.4 15.4 10.4
Trolley traveling mechanism
Traveling speed (m/min) 37.3 35.6 36.6 36.6 37 36
Crane traveling mechanism
Traveling speed (m/min) 37.3 39.7 37.3 39.7 39.4 38.5
Motor power(KW) 40.8-51.8 41.5-52.8 80-77 84-81 99.3-117.3 126.5
Rail track recommended 43kg/m 43kg/m or QU70

Advantages:

1. Module control speed, micro-speed and double speed;

2. Traveling and lifting smoothly;

3. The power for trolley moving adopts flat cable, sliding smoothly;

4. Control box layout is reasonable, easy to repair;

5. Protection class IP55;

6. Optional main power source ;

7. All external cable line number with mark;

8. Safety smooth touch line, high conductivity, small pressure drop;

9. Light weight, installation convenience;

10. Set electric taxi speed is high, ensure continuing power supply;

11. Optional speed control module, and can realize the micro speed and double speed.

Types

1.Single Girder Gantry Crane: This type of gantry crane has a single beam or girder running along the top, supported by vertical legs on each end.

2.Double Girder Gantry Crane: In a double girder gantry crane, there are two beams or girders running parallel to each other, providing increased lifting capacity and stability.

3.Rubber Tyre Gantry Crane (RTG): RTGs are gantry cranes that are equipped with rubber tires, allowing them to move independently without the need for a track system. They are commonly used in container terminals and port yards.

4.Rail Mounted Gantry Crane (RMG): RMGs are gantry cranes that are mounted on rails, enabling them to move along a fixed track system. They are often used in container handling operations at ports and rail terminals.

Outdoor Steel Heavy Duty Double Gantry Crane 5 - 50t With Electric Hoist

How to choose:

1. Selection of gantry crane

2. Span and cantilever length

3. The principle of determining the wheelbase

4. The gantry crane spacing size is determined

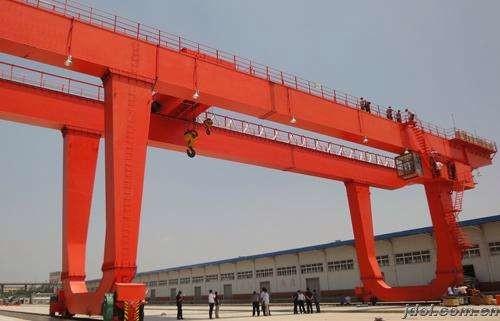

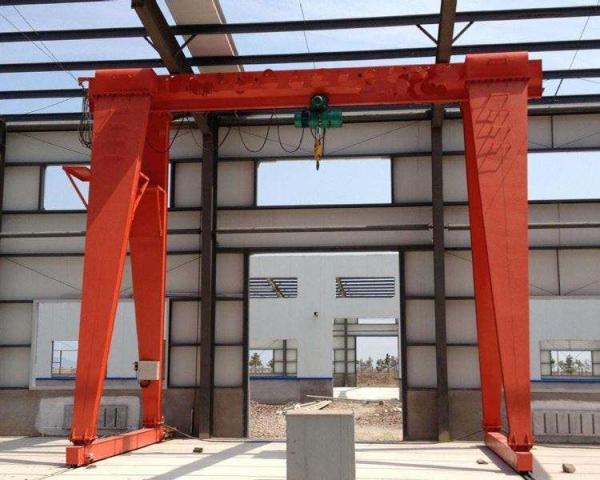

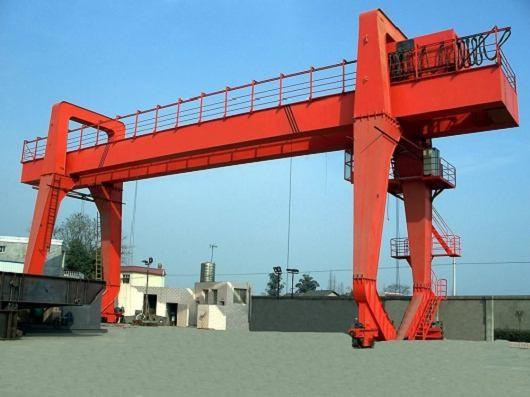

Photo:

Outdoor Steel Heavy Duty Double Gantry Crane 5 - 50t With Electric Hoist

Outdoor Steel Heavy Duty Double Gantry Crane 5 - 50t With Electric Hoist
