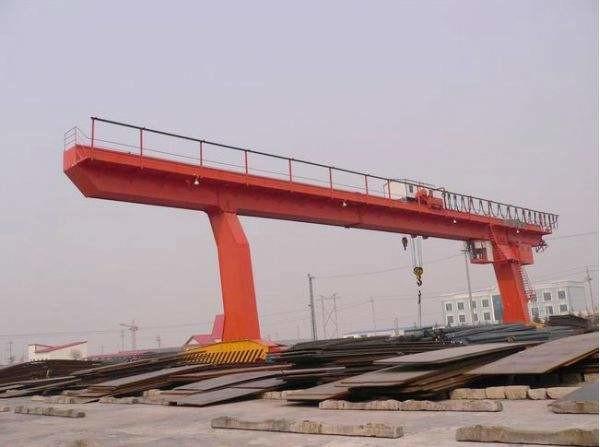

Easy Install L Type Workshop 200 Ton Gantry Crane Single Girder
Easy Install L Type Workshop 200 Ton Gantry Crane Single Girder
Easy Install L Type Workshop 200 Ton Gantry Crane Single Girder
Easy Install L Type Workshop 200 Ton Gantry Crane Single Girder
Specifications
Certification :
CE ISO GOST
Place of Origin :
Henan,China
MOQ :
Negotiation
Price :
Negotiation
Packaging Details :
Export standard packaging
Delivery Time :
30 workdays
Payment Terms :
L/C, T/T
Supply Ability :
5000 sets per year
Keywords :
Single Beam Gantry Crane
Condition :
New
Feature :
Easy To Manufacture And Install
Span :
5-40m or on request
Max. lifting load :
10 ton
Max. lifting height :
9m,12m,6m
Power source :
3 phase 380V 50hz or accord your requirements
Application :
Workshop
Description

Easy To Manufacture And Install Single Girder Workshop Gantry Crane

Introduction:

The single main girder gantry crane has a simple structure, is easy to manufacture and install, and has a small weight. The main girder is mostly an off-track box frame structure. Compared with the double main girder gantry crane, the overall stiffness is weaker. Therefore, when the lifting weight Q≤50t and the span S≤35m, this form can be adopted. Single main girder gantry crane gantry legs are available in two forms: L type and C type. The L-type is easy to manufacture and install, has good stress condition, and its own quality is small, but the space where the goods are lifted through the outriggers is relatively small. The legs of the C-type are inclined or curved in order to have a large lateral space so that the goods can pass through the legs smoothly.

Product Features:

1. Simple and compact structure, steady performance.

2. Easy to install and high efficiency.

3. Overload, low voltage protective device.

4. Pendent control and remote control.

5. Easy maintenance.

Technical Parameter:

Load Capacity (ton)

Span /Rail Gauge

(m)

Max. Lifting height-H2

(m)
5 5~35 5~25
10 5~35 5~25
16 10~50 5~25
20 10~50 5~35
25 10~50 5~35
32 10~50 5~35
50/10 10~50 5~35
70 10~50 5~35
100 10~50 5~35
120 10~50 5~35
150 10~50 5~35
200 15~50 10~35
250 15~50 10~35
300 15~50 10~35
350 15~50 10~35
400~800 15~50 10~35
Customizable Customizable Customizable

Easy Install L Type Workshop 200 Ton Gantry Crane Single Girder

Application:

Gantry cranes are mainly used for the loading and unloading of outdoor cargo yards, stockyards and bulk cargoes. Its metal structure is like a door-shaped frame, and two feet are installed under the bearing main beam, which can walk directly on the track on the ground, and the two ends of the main beam can have outrigger cantilevers. Gantry cranes have the characteristics of high site utilization, large operating range, wide adaptability and strong versatility, and are widely used in port cargo yards.

Photos:

Easy Install L Type Workshop 200 Ton Gantry Crane Single Girder
