ODM Heavy Duty 16 Ton Single Leg Gantry Crane 3.5m/Min Lifting Speed
ODM Heavy Duty 16 Ton Single Leg Gantry Crane 3.5m/Min Lifting Speed
ODM Heavy Duty 16 Ton Single Leg Gantry Crane 3.5m/Min Lifting Speed
ODM Heavy Duty 16 Ton Single Leg Gantry Crane 3.5m/Min Lifting Speed
Specifications
Certification :
CE ISO GOST
Place of Origin :
Henan,China
MOQ :
Negotiation
Price :
Negotiation
Packaging Details :
Export standard packaging
Delivery Time :
30 workdays
Payment Terms :
L/C, T/T
Supply Ability :
5000 sets per year
Keywords :
Single Beam Gantry Crane
Condition :
New
Feature :
Easy To Manufacture And Install
Span :
5-40m or on request
Max. lifting load :
16 ton
Max. lifting height :
9m,12m,6m
Power source :
3 phase 380V 50hz or accord your requirements
Application :
Workshop
Description

Easy To Manufacture And Install Single Girder Workshop Gantry Crane

Introduction:

The single main girder gantry crane has a simple structure, is easy to manufacture and install, and has a small weight. The main girder is mostly an off-track box frame structure. Compared with the double main girder gantry crane, the overall stiffness is weaker. Therefore, when the lifting weight Q≤50t and the span S≤35m, this form can be adopted. Single main girder gantry crane gantry legs are available in two forms: L type and C type. The L-type is easy to manufacture and install, has good stress condition, and its own quality is small, but the space where the goods are lifted through the outriggers is relatively small. The legs of the C-type are inclined or curved in order to have a large lateral space so that the goods can pass through the legs smoothly.

Technical Parameter:

Capacity T 3 5 10 16 20
Span m 12,16,20,24,30
Operational method Pendent Line With Press Button /Cabin/ Remote
Speed Lifting

m/min

 8 ,8/0.8 8,8/0.8 7,7/0.7 3.5 3.5
Cross travelling 20 20 20 20 20
Long travelling Ground 20 20 20 20 20
Cabin 20, 30,45 20, 30,40 30,40 30,40 30,40
Motor Lifting Type /kw ZD41-4/4.5
ZDS1-4/0.4/4.5		 ZD141-4/7.5 ZDS10.8/4.5 ZD151-4/13 ZDS11.5/4.5 ZD151-4/13 ZD152-4/18
Cross travelling ZDY12-4/0.4 ZDY121-4/0.8 ZDY21-4/0.8×2 ZDY121-4/0.8×2 YZD-4/0.8×4
Long travelling Ground ZDY21-4/0.8×2
ZDY21-4/1.5×2		 YZY22-4/1.5×2
YZR132M2-6/3.7×2		 YZR22-4/1.5×2 YZR160M1-6/6.3×2
YZR160M2-6/8.5×2		 YZR160M1-6/6.3×2
YZR160M2-6/8.5×2
Cabin ZDR100-4/1.5×2
ZDR112-4/2.1×2		 YZR112L1-4/2.1×2
YZR160M1-6/2.1×2		 YZR112L1-4/2.1×2
YZR160M2		 YZR160M2-6/8.5×2
YZR160L2-6/11×2		 YZR160M2-6/8.5×2
YZR160L2-6/11×2
Electric hoist Model CD1/MD1 CD1/MD1 CD1/MD1 CD1 HC
Lifting height m 6,9
Working duty A3
Power supply 380V 60HZ 3phase AC (According to your demand )

Gantry Crane Features:

1. Heavy Duty and High Efficient;
2. Suitable for any environment ( High Temperature, Explosion Proof and so on);
3. Long Life Span: 30-50years;
4. Easy for Installation and maintenance;
5. Reasonable structure and strong rigidity;
6. The speed can be frequency inverter speed control;
7. Control method is cabin control or remote control;
8. Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;
9. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.

Application:

Gantry cranes have the characteristics of high site utilization, large operating range, wide adaptability and strong versatility, and are widely used in port cargo yards.

Photos:

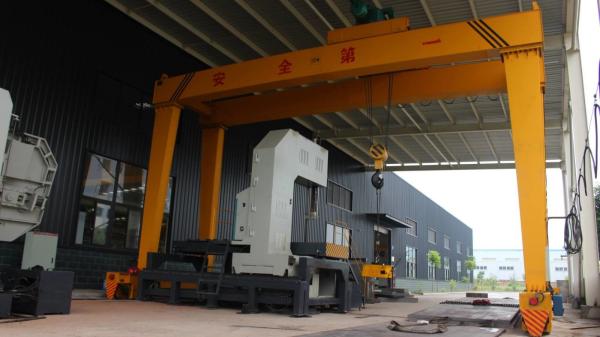

ODM Heavy Duty 16 Ton Single Leg Gantry Crane 3.5m/Min Lifting Speed

ODM Heavy Duty 16 Ton Single Leg Gantry Crane 3.5m/Min Lifting Speed
