Warehouse Single Girder Gantry Crane 10 Ton Bridge Crane OEM ODM
Warehouse Single Girder Gantry Crane 10 Ton Bridge Crane OEM ODM
Warehouse Single Girder Gantry Crane 10 Ton Bridge Crane OEM ODM
Warehouse Single Girder Gantry Crane 10 Ton Bridge Crane OEM ODM
Specifications
Certification :
CE ISO GOST
Place of Origin :
Henan,China
MOQ :
Negotiation
Price :
Negotiation
Packaging Details :
Export standard packaging
Delivery Time :
30 workdays
Payment Terms :
L/C, T/T
Supply Ability :
5000 sets per year
Keywords :
Gantry Crane Single Beam
Feature :
Wide Adaptability And Strong Versatility
Span :
5-40m
Max. lifting load :
10 ton
Max. lifting height :
9m,12m,6m
Control method :
Wireless Remote Control,Ground control
Power source :
3 phase 380V 50hz or accord your requirements
Application :
Warehouse
Description

Wide Adaptability And Strong Versatility Single Girder Gantry Crane 10 Ton For Warehouse

Introduction:

The gantry crane is a bridge-type crane in which the bridge is supported on the ground track through the outriggers on both sides. In structure, it consists of gantry, cart running mechanism, lifting trolley and electrical parts.

It is mainly used for the loading and unloading of outdoor cargo yards, stockyards and bulk cargoes. Gantry cranes have the characteristics of high site utilization, large operating range, wide adaptability and strong versatility, and are widely used in port cargo yards.

Technical Parameter:

Capacity T 3 5 10 16 20
Span m 12,16,20,24,30
Operational method Pendent Line With Press Button /Cabin/ Remote
Speed Lifting

m/min

 8 ,8/0.8 8,8/0.8 7,7/0.7 3.5 3.5
Cross travelling 20 20 20 20 20
Long travelling Ground 20 20 20 20 20
Cabin 20, 30,45 20, 30,40 30,40 30,40 30,40
Motor Lifting Type /kw ZD41-4/4.5
ZDS1-4/0.4/4.5		 ZD141-4/7.5 ZDS10.8/4.5 ZD151-4/13 ZDS11.5/4.5 ZD151-4/13 ZD152-4/18
Cross travelling ZDY12-4/0.4 ZDY121-4/0.8 ZDY21-4/0.8×2 ZDY121-4/0.8×2 YZD-4/0.8×4
Long travelling Ground ZDY21-4/0.8×2
ZDY21-4/1.5×2		 YZY22-4/1.5×2
YZR132M2-6/3.7×2		 YZR22-4/1.5×2 YZR160M1-6/6.3×2
YZR160M2-6/8.5×2		 YZR160M1-6/6.3×2
YZR160M2-6/8.5×2
Cabin ZDR100-4/1.5×2
ZDR112-4/2.1×2		 YZR112L1-4/2.1×2
YZR160M1-6/2.1×2		 YZR112L1-4/2.1×2
YZR160M2		 YZR160M2-6/8.5×2
YZR160L2-6/11×2		 YZR160M2-6/8.5×2
YZR160L2-6/11×2
Electric hoist Model CD1/MD1 CD1/MD1 CD1/MD1 CD1 HC
Lifting height m 6,9
Working duty A3
Power supply 380V 60HZ 3phase AC (According to your demand )

Warehouse Single Girder Gantry Crane 10 Ton Bridge Crane OEM ODM

Safety Features of Our Gantry Cranes:

1. Crane traveling limit switch

2. Weight overload protection device

3. Lifting height limit device

4. Voltage lower protection function

5. Phase sequence protection function

6. Warning indicator: flashing lights and warning sound.

7. Emergency stop function

8. Rain cover for outside hoist, driving units, electrical cubicle.

9. Wireless infra-detector for anti-collusion

Application:

Gantry cranes have the characteristics of high site utilization, large operating range, wide adaptability and strong versatility, and are widely used in port cargo yards.

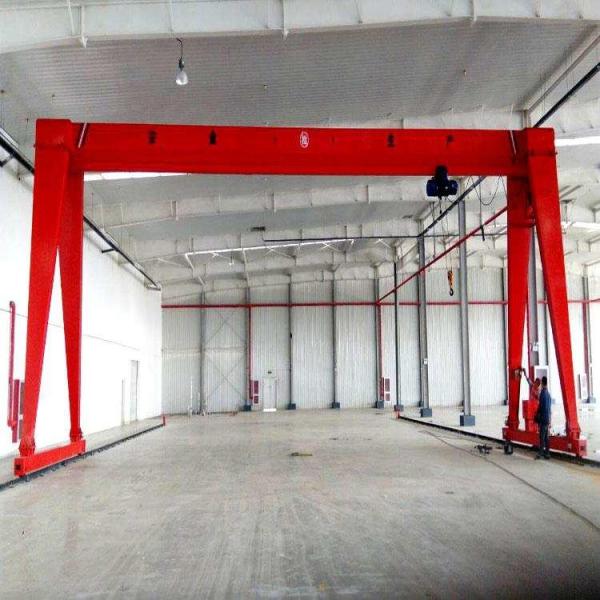

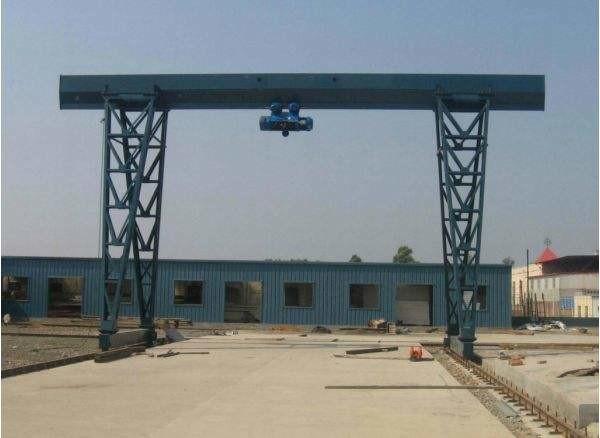

Photos:

Warehouse Single Girder Gantry Crane 10 Ton Bridge Crane OEM ODM
