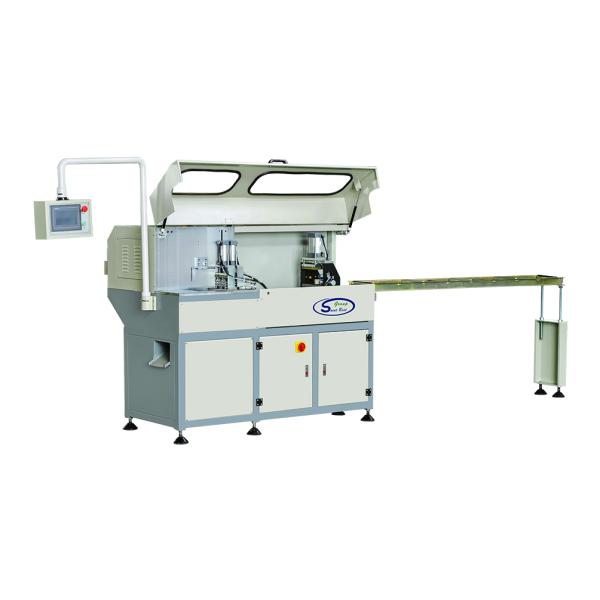

Low Noise Aluminium Window Machinery Automatic Corner Connector Cutting Saw Machine

Quick Details

• Brand Name: SAINT BEST
• Model Number: CLJJA-500B
• Product name: Aluminum window cutting saw / corner connector machine
• Service: Service Machinery Oversea
• Usage: Aluminum window corner connector cutting
• Power supply: 380V 50Hz
• Input power: 2.2(kW)
• Motor rotary speed: 2800r/min
• Working Air Pressure: 0.5-0.8mpa
• Auto feeding length: 3-380mm
• Saw Blade: dia500 *30
• Overall Dimension: 6000*1770*1840mm

Packaging & Delivery

Name: Aluminum Window Door Profile Corner Key Cutting Machine

Product Application

This machine is mainly used for corner connector of aluminum profile and plastic profile cutting.
A single clamping,can realize continuous cutting angle of 6 m code section.

-This machine is mainly used for corner connector of aluminum profile and plastic profile
cutting.Aluminum window corner connector cutting.
-The Angle adjustable voltage technology, quick adjustment, high efficiency.
-Feed movement adopts linear motion bearings, small resistance, high machining accuracy.
-Use carbide saw blade for Cutting tools, is of high cutting speed, easy operation, safe
and reliable.
-Make good use of the material during cutting.
-This machine is suitable for massive cutting of angle connectors.
-Motor phase sequence protector is installed in the motor system, To improve the security
of the system.

SPECIFICATIONS FOR CORNER KEY CUTTING SAW
Model	CLJJA-500B	Power Supply	380V 50Hz
Input Power	2.2Kw	Air Pressure	0.5~0.8MPa
Motor Rotary Speed	2800r/min	Saw Blade Specification	Φ500*Φ30*96
Feeding Length	3~380mm	Cutting Width*Height	140*200mm
Overall Dimension	6000*1770*1840mm	Weight	About 600Kg

Main Features

1.Used for aluminum corner connector cutting.
2.Imported carbide saw blade is of accurate processing and high efficiency.
3.Only one time clamping,can achieve 6 meters corner section bar continuous cutting.
4.The use of imported control system,control system adopts the man-machine interface,high accuracy.
5.Imported carbide saw blade is of accurate processing and high efficiency.
6.Feeding motion using linear motion bearing small movement resistance of high precision.
7.Feeding mechanism of automatic feeding system is stable and reliable with high efficiency.
8.Work clamping,cutting and uses the pneumatic control system,convenient operation,safely and reliability,high productively.

Detailed Images

Machine Parts

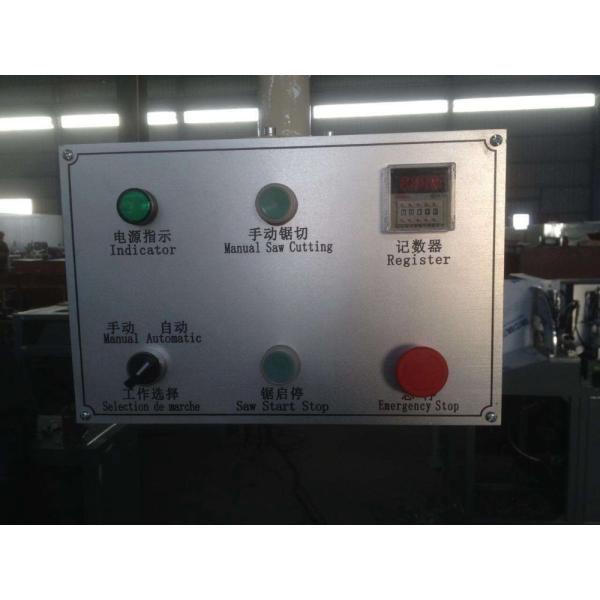

Name: Press button

Brand: Omron

Original: Japan

Main part

Name: low-voltage apparatus
Brand: Schneider
Original: France

Machine Parts

Name: Motor

Brand: Zhenyang

Pure copper motor,2.2KW

Main Parts

Name: solenoid valve
Brand: STNC

Our Service

Pre-sale service

●Free contact for the most suitable machine
●Free professional design for each customer especially.

After sale service

●24 hours technical support by phone, email or skype
●1years warranty period
●Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

Payment
●T/T, 30% deposit by T/T,70% payment before shipment.
●Western Union or Paypal.

Saint Best Group Factory Details:

+ Our factory has two large fabricating factories;

+ Our factory has our own office building and staff apartment;

+ Our factory has 25 fabricating workers which have more than 10 years window door and insulating glass fabricating experience;

+ Any more details, welcome to contact us our customer service department at any time on line.

1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines

3.Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.

4 How is Aluminum Window Door Corner Key Cutting Saw Machine guarantee?

4.1. Aluminum Window Door Corner Key Cutting Saw Machine warrenty period is 14 months after BL time;

4.2.12 hours technical support feedback;

4.3. Own window factory supply window fabrication support;

4.4. Own machining factory, which can control the spare parts quality at high quality;

4.5. Own accessories warehouse and user can enjoy the agent price.
