Glass Straight Line Double Edge Grinding Machine For Pencil Edge
Glass Straight Line Double Edge Grinding Machine For Pencil Edge
Glass Straight Line Double Edge Grinding Machine For Pencil Edge
Glass Straight Line Double Edge Grinding Machine For Pencil Edge
Glass Straight Line Double Edge Grinding Machine For Pencil Edge
Glass Straight Line Double Edge Grinding Machine For Pencil Edge
Glass Straight Line Double Edge Grinding Machine For Pencil Edge
Glass Straight Line Double Edge Grinding Machine For Pencil Edge
Glass Straight Line Double Edge Grinding Machine For Pencil Edge
Glass Straight Line Double Edge Grinding Machine For Pencil Edge
Specifications
Brand Name :
Saint Best
Model Number :
SBT-BYZ2525
Certification :
CE/ISO9001:2008
Place of Origin :
China
MOQ :
1Set
Price :
USD35000/Set@1 Set;USD30000/Set@more than 2 sets
Payment Terms :
T/T
Supply Ability :
12Sets/Month
Delivery Time :
60Days after getting prepayment;
Packaging Details :
Export Standard Package
Glass straight line double edger production line :
Glass double edging line
Min Glass Size :
55x55mm
Glass diagonal error: :
±0.5mm/㎡
Thickness of process glass :
Standard 3~25mm
Max Glass Size :
2500x2500mm
Description

Quick Details

  • Condition: New
  • Machine Type: Glass double edger production line for Pencil Edge
  • Production Capacity: 12 sets/month
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: SAINT BEST
  • Model Number: SBT-BYZ2525
  • Voltage: 220/380V/480 50Hz/60Hz 3P
  • Power(W): 103Kw
  • Dimension(L*W*H): 18500*10000*2800mm
  • Weight: 18000kg
  • Certification: CE
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Grinding motor supplier: Shanghai ABB
  • Glass transmission rate: 0.5~34m/min
  • Thickness of process glass: Standard 3~25mm
  • Width of glass chamfering: 0~3mm
  • Number of motors:20
  • Error of glass chamfering width: ±0.2mm/m
  • Error of glass paralle: ±0.2mm/m

Packaging & Delivery

Packaging Details: export standard package
Delivery Detail: Shipped in 60 days after payment
Product Description

SBT-BYZ2525(14motors)

1. The first machine:DOUBLE GLASS PENCIL EDGER SBT-BYY2514

and

2. The second machine:DOUBLE GLASS PENCIL EDGER SBT-BYY2514

the number of motors :14 motors (depends on the customer's requirement)

the width of glass chamfering : 0～3mm

Standard Thickness :0～12mm;Super small pieces:2-8mm
The error of glass parallel: ±0.2mm/m
Glass diagonal error : ±0.5mm/㎡

Width positioning error: ±0.1mm/㎡
Glass transmission rate : 0.5～8m/min

Maximum grinding bottom:3mm

Power source:380/3ph/50Hz ( depends on the customer's requirement)

Glass double pencil edger,6 motors glass double pencil round edge grinding machine,8 motors glass double pencil round edge grinding machine,10 motors glass double pencil round edge grinding machine,Glass double round edging machine,10 motors glass pencil round double edge grinding machine

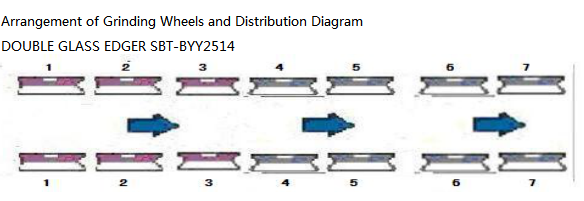

Arrangement of grinding wheels and distribution diagram of motor power

Glass Straight Line Double Edge Grinding Machine For Pencil Edge

Arrangement of grinding wheel and distribution diagram of motor power

No.1 No.2 No.3 No.4 No.5 No.6 No.7

100# 180# 240# BK 60# 60# 60#

Diamond Diamond Diamond polishing polishing polishing polishing

wheel wheel wheel wheel wheel wheel wheel

Glass Straight Line Double Edge Grinding Machine For Pencil Edge

Main Features

The minimal size of the common process glass is 160mm*160mm,minimal thickness 2mm.The thickest size depends on the requirements and the quality of grinding wheel..Glass double pencil edger,6 motors glass double pencil round edge grinding machine,8 motors glass double pencil round edge grinding machine,10 motors glass double pencil round edge grinding machine,Glass double round edging machine,10 motors glass pencil round double edge grinding machine,12 motors glass double pencil round edge grinding machine,14 motors glass double pencil round edge grinding machine.

This machine has the advanced structures,precision components,exquisite assembly technology,good fittings,stable property,excellent quality,easy operation and simply maintenance.

Processing glass diagonal error within 0.5 mm,parallelism error within 0.1mm,chamfering balance,clear angles,no collapse edge, round edge phenomenon.10 Motors Glass double pencil edger,8 motors Glass double pencil edger,6 motors Glass double pencil edger,12 Motors Glass double pencil edger,14 motors Glass double pencil edger.

It is suitable for processing all kinds of high-grade sealed insulating glass and appliances glass.Can be extended the laser code then identify the automatic control.Glass Straight-line Turning Table,Glass automatic Turning Table,Glass Automatic Turning Table.

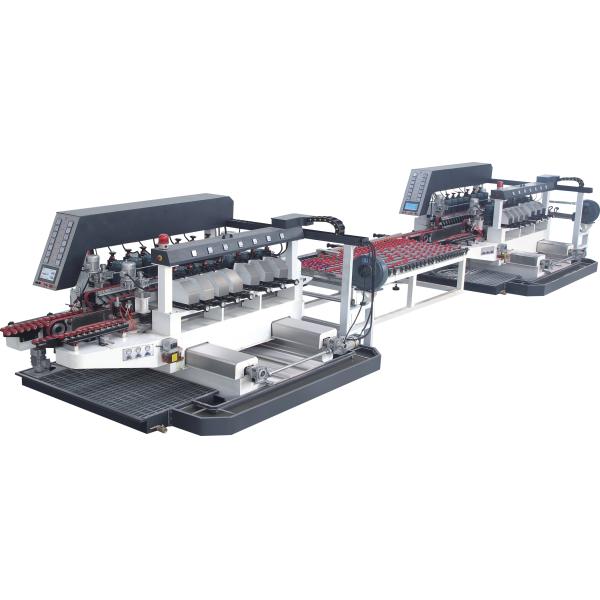

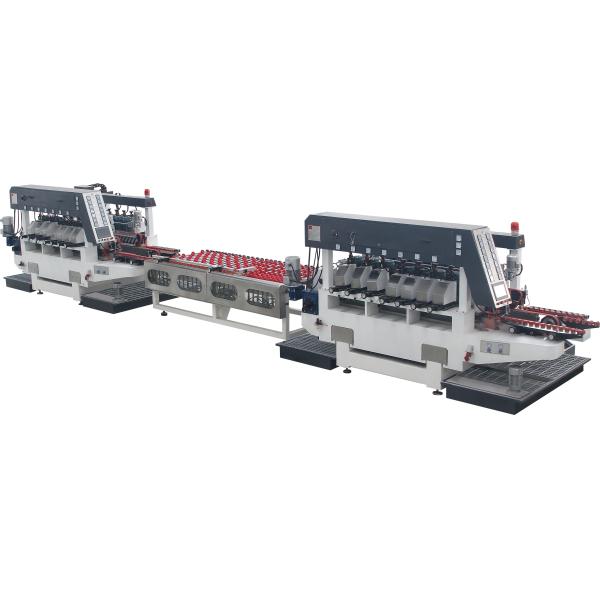

3. Glass Straight Edging Line Glass Transfer Table (SBT-BYZ2525)

SBT-BYZ2525 straight-line consists of 2 straight line of double edger and 1 transfer table.It can grinding 4 edges one-time.The machine of combinations and grinding numbers can be according to customer requirements.This production line of structure is simple and reliable,high production efficiency,transfer glass is fast,also can saving space and workers.It suitable for industrial glass(furniture,building,household appliances industry).

.glass tempering furnace,glass double edging machine,glass straight line beveling edging machine,glass straight line edging machine,glass straight line multilevel edging machine,glass washing machine,glass drilling machine,glass irregular shape machine,glass automatic sandblasting machine,glass chamfering machine and glass automatic cutting machine,glass automatic loading machine.

Main Technical Parameters:

No. Items Parameters Remarks
1 Max glass size/mm 2500×2500 Can be customized according to customer requirements
2 Min glass size/mm 55×55

3 Thickness of glass/mm 3-25mm
4 Glass transmission rate 0.5-34 m/min
5 power 3.5 KW
6 Power source AC380V 50HZ

Glass Straight Line Double Edge Grinding Machine For Pencil EdgeGlass Straight Line Double Edge Grinding Machine For Pencil EdgeGlass Straight Line Double Edge Grinding Machine For Pencil Edge

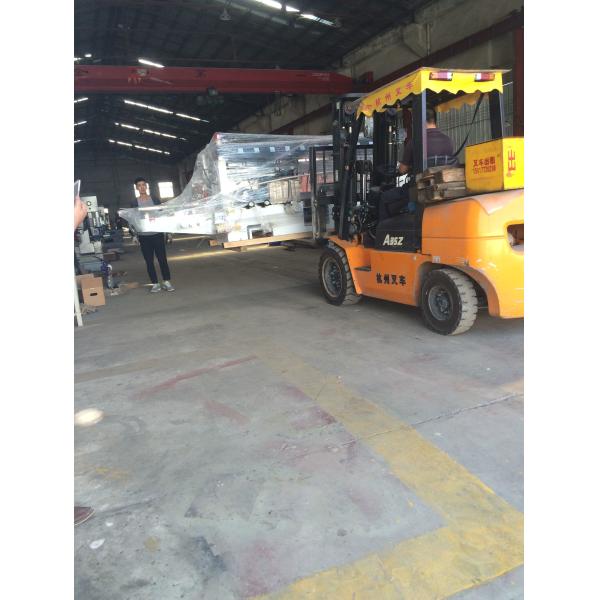

Our Factory

Glass Straight Line Double Edge Grinding Machine For Pencil Edge

Glass Straight Line Double Edge Grinding Machine For Pencil Edge

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

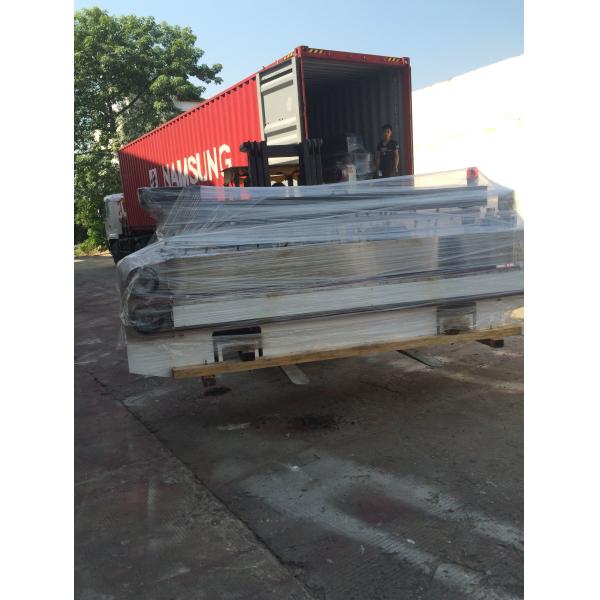

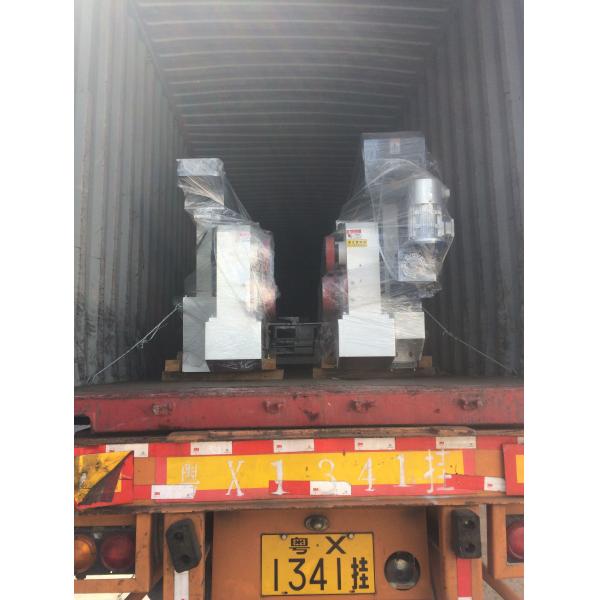

Packing & Delivery

Glass Straight Line Double Edge Grinding Machine For Pencil EdgeGlass Straight Line Double Edge Grinding Machine For Pencil EdgeGlass Straight Line Double Edge Grinding Machine For Pencil EdgeGlass Straight Line Double Edge Grinding Machine For Pencil Edge
