6 Motors Customized Glass Edging Machine With Four Diamond Wheel , High Efficiency
6 Motors Customized Glass Edging Machine With Four Diamond Wheel , High Efficiency
6 Motors Customized Glass Edging Machine With Four Diamond Wheel , High Efficiency
6 Motors Customized Glass Edging Machine With Four Diamond Wheel , High Efficiency
6 Motors Customized Glass Edging Machine With Four Diamond Wheel , High Efficiency
6 Motors Customized Glass Edging Machine With Four Diamond Wheel , High Efficiency
6 Motors Customized Glass Edging Machine With Four Diamond Wheel , High Efficiency
6 Motors Customized Glass Edging Machine With Four Diamond Wheel , High Efficiency
6 Motors Customized Glass Edging Machine With Four Diamond Wheel , High Efficiency
6 Motors Customized Glass Edging Machine With Four Diamond Wheel , High Efficiency
Specifications
Brand Name :
Saint Best
Model Number :
SBT-BYY2506-A
Certification :
CE/ISO9001:2008
Place of Origin :
China
MOQ :
1Set
Price :
USD35000/Set@1 Set;USD30000/Set@more than 2 sets
Payment Terms :
T/T
Supply Ability :
12Sets/Month
Delivery Time :
50Days after getting prepayment;
Packaging Details :
Export Standard Package
Glass Edging Machine :
glass double pencil round edge grinding machine
Glass transmission rate :
0.5~8m/min
Glass diagonal error: :
±0.5mm/㎡
Thickness of process glass :
Standard 3~12mm (meticulous 2~6mm)
Number of motors :
6
Description

6 Motors Customized Glass Edging Machine With Four Diamond Wheel , High Efficiency

Quick Details

  • Condition: New
  • Machine Type: Glass Edging Machine
  • Production Capacity: 12 sets/month
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: SAINT BEST
  • Model Number: SBT-BYY2506-A
  • Voltage: 380V/ 50Hz/3P
  • Power(W): 29Kw
  • Dimension(L*W*H): 3000*4250*1900mm
  • Weight: 4000kg
  • Certification: CE
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Grinding motor supplier: Shanghai ABB
  • Glass transmission rate: 0.5~8m/min
  • Thickness of process glass: Standard 3~12mm (meticulous 2~6mm)
  • Number of motors: 6
  • Glass diagonal error: ±0.5mm/㎡
  • 6 Motors Glass Double Pencil Round Edge Grinding Machine / Pencil Glass Double Edge Edger

Packaging & Delivery

Packaging Details: export standard package
Delivery Detail: Shipped in 50 days after payment
Product Description

Product Application

The number of motors :6 (customerization accepted)
The thickness of process glass :A type standard :3～12mm (E type meticulous:2～6mm)
The error of glass parallel: ±0.2mm/m
Glass diagonal error : ±0.5mm/㎡
Width positioning error: ±0.1mm/㎡
Glass transmission rate : 0.5～8m/min

Glass double pencil edger,6 motors glass double pencil round edge grinding machine,8 motors glass double pencil round edge grinding machine,10 motors glass double pencil round edge grinding machine,Glass double round edging machine,10 motors glass pencil round double edge grinding machine

Arrangement of grinding wheels and distribution diagram of motor power

Diamond wheel *4,Polishing wheel*2

6 Motors Customized Glass Edging Machine With Four Diamond Wheel , High Efficiency

6 Motors Customized Glass Edging Machine With Four Diamond Wheel , High Efficiency6 Motors Customized Glass Edging Machine With Four Diamond Wheel , High Efficiency6 Motors Customized Glass Edging Machine With Four Diamond Wheel , High Efficiency

6 Motors Customized Glass Edging Machine With Four Diamond Wheel , High Efficiency

Main Features

The minimal size of the common process glass is 160mm*160mm,minimal thickness 2mm.The thickest size depends on the requirements and the quality of grinding wheel.Glass double pencil edger,6 motors glass double pencil round edge grinding machine,8 motors glass double pencil round edge grinding machine,10 motors glass double pencil round edge grinding machine,Glass double round edging machine,10 motors glass pencil round double edge grinding machine.
This machine has the advanced structures,precision components,exquisite assembly technology,good fittings,stable property,excellent quality,easy operation and simply maintenance.
Processing glass diagonal error within 0.5 mm,parallelism error within 0.1mm,chamfering balance,clear angles,no collapse edge, round edge phenomenon.10 Motors Glass double pencil edger,8 motors Glass double pencil edger,6 motors Glass double pencil edger.
It is suitable for processing all kinds of high-grade sealed insulating glass and appliances glass.Can be extended the laser code then identify the automatic control.

Our factory

6 Motors Customized Glass Edging Machine With Four Diamond Wheel , High Efficiency

6 Motors Customized Glass Edging Machine With Four Diamond Wheel , High Efficiency

6 Motors Customized Glass Edging Machine With Four Diamond Wheel , High Efficiency

6 Motors Customized Glass Edging Machine With Four Diamond Wheel , High Efficiency

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

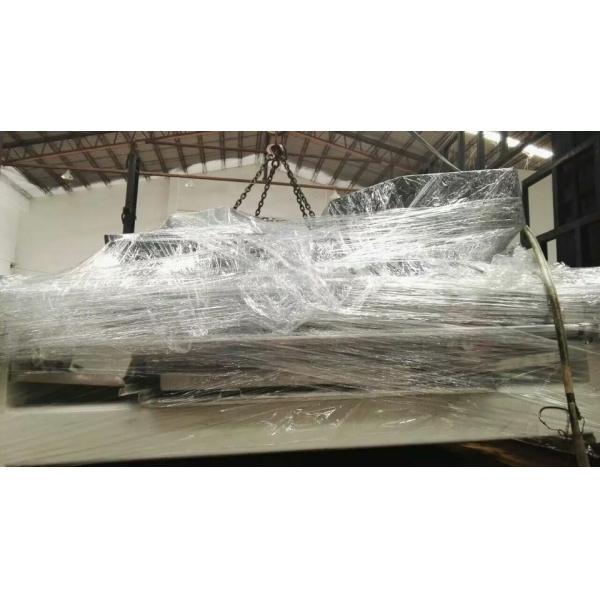

Packing & Delivery

6 Motors Customized Glass Edging Machine With Four Diamond Wheel , High Efficiency6 Motors Customized Glass Edging Machine With Four Diamond Wheel , High Efficiency6 Motors Customized Glass Edging Machine With Four Diamond Wheel , High Efficiency
