1.General Description
1.1 SBT-ZV9 glass edger is suitable for processing straight-line edge & 45°arrises of glass sheet with various sizes and thicknesses.

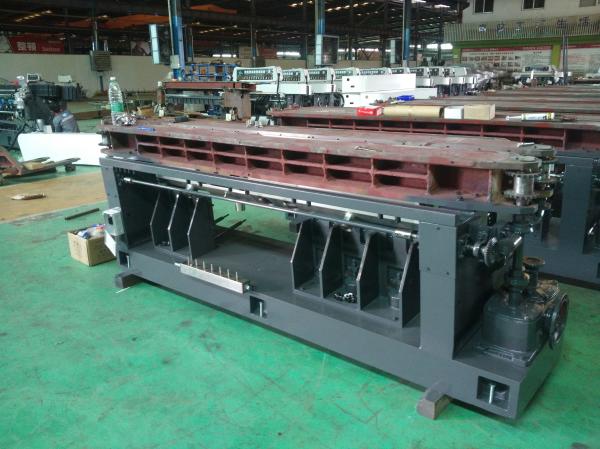

1.2 The main base of the glass edger is made of cast iron.
1.3 The glass thickness can be showed on a digital display or touch screen.

1.4 With a special design of the in-feed section for controlling the desired amount of glass removal, the operator does not need to adjust each spindle individually.
1.5 The independent felt wheel and the cerium water re-circulation system can make the flat edge more shining.
1.6 The input and output conveyor of the glass edger adopt timing belt which can improve the transmission precision.
1.7 It is easy to operate and the glass edger has good performance.

2. Technical Data
2.1 Processing glass thickness: 3-25mm
2.2 Angle of arris: 45°
2.3 Min.size of glass: 80mm×80mm / Max.size of glass:3000mm×3000mm
2.4 Processing speed: 0.5-6.0m/min
2.5 Installed power :19.08KW;
2.6 Dimension Size: 7400mm×1000mm × 2500mm(L*W*H)

2.7 Packing Size:4200mm*950mm*1600mm(L*W*H)
3. Wheels Disposal

1. Question:Are you manufacture?

Answer:

Yes,we are the professional manufacture which have more than 5 workshops.

2.Question: About this Machine,What’s the guarantee ?

Answer:

1).Our guarantee for 12 months.

2).24 hour’s technical support by email or calling

3).English manual and video tutorial

4).We will provide the consumable parts at an agency price

5).24 hours on line service each day, free technical support.

3.Question:Why your price is higher than another company or factories ?

Answer: please check, what is is the differences of the machine of parts ,service and guarantee,especially the machine inner electric parts.Miter edge Glass machine with air Polishing+ Electrical Rail Lift system,

Rough Edge grinding glass machine for Architecture Glass.

sometimes,if the machine have breakdown, the most reason is the machine inner electric parts problem,

but we use the famous and reliable parts for the machines inside.Insulating Glass Production Line

Glass Crude Grinding before Temper Furnace,Glass Crude Grinding Machine for Temper Furnace,Pneumatc

Polish arris glass machine.
