Steel Scrap Container Gantry Crane High Level Quality Rail Mounted 35m
Steel Scrap Container Gantry Crane High Level Quality Rail Mounted 35m
Steel Scrap Container Gantry Crane High Level Quality Rail Mounted 35m
Steel Scrap Container Gantry Crane High Level Quality Rail Mounted 35m
Steel Scrap Container Gantry Crane High Level Quality Rail Mounted 35m
Steel Scrap Container Gantry Crane High Level Quality Rail Mounted 35m
Steel Scrap Container Gantry Crane High Level Quality Rail Mounted 35m
Steel Scrap Container Gantry Crane High Level Quality Rail Mounted 35m
Specifications
Brand Name :
Dowellcrane
Model Number :
RMG
Place of Origin :
china
MOQ :
1 set
Price :
100000 usd
Payment Terms :
L/C, T/T
Supply Ability :
5000/year
Delivery Time :
90 days Rail Mounted gantry crane
Packaging Details :
Main beam and legs by plastic woven cloth, Electrical parts and other parts by high quality plywood box.
Certification :
CE ISO
Product name :
Container Gantry Crane
Lifting Capacity :
1-100 Ton
Span :
3-40m
Power Source :
User Requirments
Color :
Customized
Work duty :
A5~A7
Usage :
Matrtials Handling
Advantage :
Flexible Turning
Description

Steel Scrap Container Gantry Crane High Level Quality Rail Mounted 35m

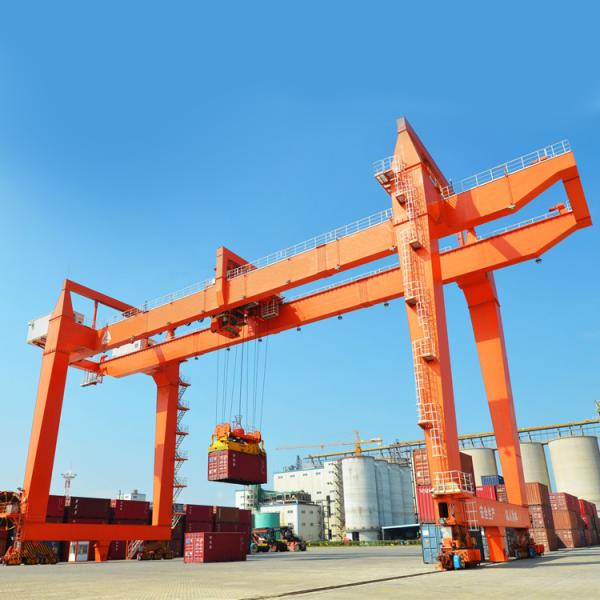

Rail Mounted gantry crane is suitable for loading and unloading of large span, frequently railway freight yard, port, open storage, container transfer station etc.. This machine adopts U type gantry, its legs headroom large (nearly 7 meters). It is suitable for heavy bulky cargo and container handling operations, with frequent high-level work, A5 ~ A8. The weight of 5 to 500 tons, the span of 18 to 35 meters, the girder can be designed have cantilever and no cantilever, the end of two main beam connected with end beams to meet the high level requirements.

Steel Scrap Container Gantry Crane High Level Quality Rail Mounted 35m

Rail mounted gantry crane technical specifications
Capacity t 35 40.5
Span m 30 22
Lifting Height m 16 12.3
Work Duty m A6 A7
Type of Container 20' 40' 45'
Speed Hoisting m/min 0~10 10/18
Crab Travelling 3.4~34 40
Trolley Travelling 2.9~29 45
Rotation r/min - 1.35
Rail P43 QU70
Power 3-Phase A.C. 380V 50Hz
