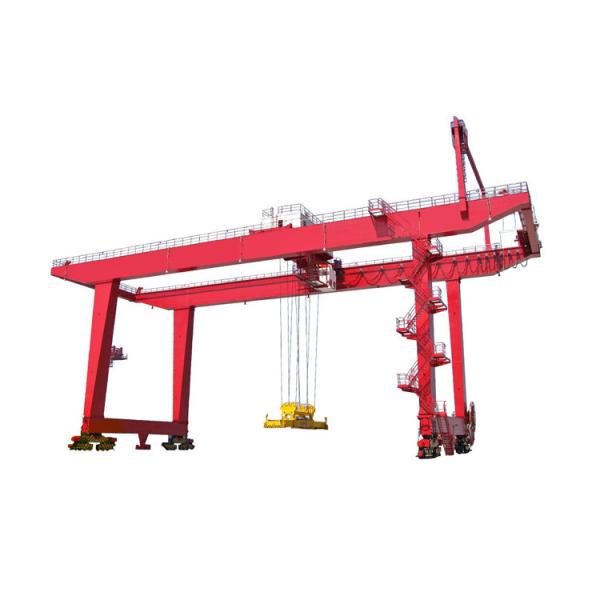

RMG Type Handling Container Gantry Crane 40 Foot Capacity
RMG Type Handling Container Gantry Crane 40 Foot Capacity
RMG Type Handling Container Gantry Crane 40 Foot Capacity
RMG Type Handling Container Gantry Crane 40 Foot Capacity
RMG Type Handling Container Gantry Crane 40 Foot Capacity
RMG Type Handling Container Gantry Crane 40 Foot Capacity
RMG Type Handling Container Gantry Crane 40 Foot Capacity
RMG Type Handling Container Gantry Crane 40 Foot Capacity
Specifications
Brand Name :
Dowellcrane
Model Number :
RMG
Place of Origin :
china
MOQ :
1 set
Price :
100000 usd
Payment Terms :
L/C, T/T
Supply Ability :
5000/year
Delivery Time :
90 days
Packaging Details :
wooden case for electric parts, others by plastic woven cloth. It can reduce abrasion when transport.
Certification :
CE ISO
Product name :
RMG Type Handling Container Gantry Crane
Lifting Capacity :
45 Ton or customized
Usage :
Matrtials Handling
Work duty :
A5~A7
Advantage :
Flexible Turning
Color :
Customized
Span :
3-40m
Lift height :
6m 9m 12m 18m
Lifting mechanism :
Electric Trolley
Description

RMG Type Handling Container Gantry Crane 40 Foot Capacity

Product Introduction:

RMG Type Handling Container Gantry Crane is one kind of heavy duty gantry crane, it is widely used in railway freight yard and coastal port. This kind of Crane is available for general service, such as loading, unloading, lifting and transferring work in outdoor yards of the factory or on railways, also works as container crane matching special hang parts. The capacity is from 30.5 to 320 tons, span is 35m, the working class is medium & heavy grade.

Product Parameters:

Lifting weight (t)
10
16
20/10
32/10
36/16
50/10
Span (m)
18~35
18~30
18~35
22
22~35
35
Lifting height (m)
Main hook
11.5
10.5,12
10.5
11.5
11.5
12
Auxiliary hook
/
/
11
12
12
13
Speed (m/min)
Main hook
8.5
7.9
7.2
7.5
7.8
6
Auxiliary hook
/
/
10.4
10.4
10.5
10.4
Trolley travel
43.8
44.5
44.5
41.9
41.9
38.13
Long travel
37.6,40
38,36
38,36
40
40,38
38
Duty classification
A5
Power source
Three-phase AC. 127~480V 50/60Hz

Detailed Images:

RMG Type Handling Container Gantry Crane 40 Foot Capacity

RMG Type Handling Container Gantry Crane comes in a variety of sizes and configurations, and can be customized to meet the needs of different applications. It is typically powered by an electric motor, and can be operated manually or automatically. It is often used to move large and heavy loads, such as containers, machinery, and construction materials.RMG Type Handling Container Gantry Crane also used in the loading and unloading of ships and other vessels. RMG Type Handling Container Gantry Crane is designed to be safe and efficient, and can be used in a variety of settings, including outdoors and indoors. It is an effective and efficient way to move large and heavy loads.

Product tags

container gantry crane

,

rail mounted container gantry crane

,

5 ton gantry crane
