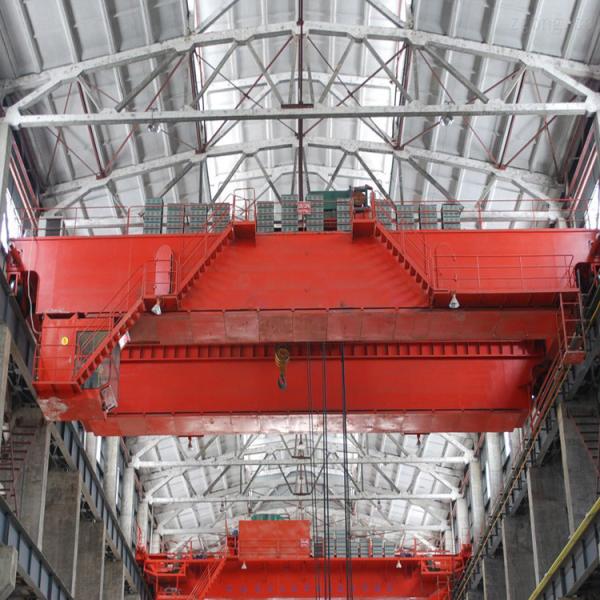

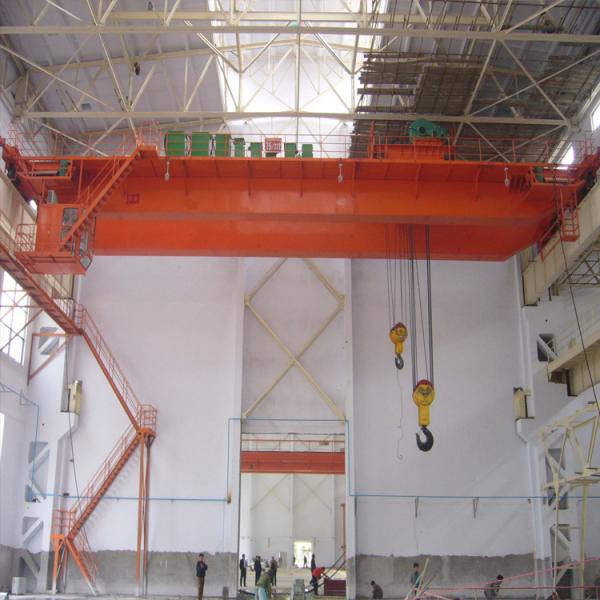

Double Girder Overhead Crane Bridge Type 40t Explosive Proof
Double Girder Overhead Crane Bridge Type 40t Explosive Proof
Double Girder Overhead Crane Bridge Type 40t Explosive Proof
Double Girder Overhead Crane Bridge Type 40t Explosive Proof
Double Girder Overhead Crane Bridge Type 40t Explosive Proof
Double Girder Overhead Crane Bridge Type 40t Explosive Proof
Double Girder Overhead Crane Bridge Type 40t Explosive Proof
Double Girder Overhead Crane Bridge Type 40t Explosive Proof
Double Girder Overhead Crane Bridge Type 40t Explosive Proof
Double Girder Overhead Crane Bridge Type 40t Explosive Proof
Specifications
Brand Name :
Dowellcrane
Model Number :
QB
Place of Origin :
china
MOQ :
1 set
Price :
60000 -80000usd
Payment Terms :
L/C, T/T
Supply Ability :
5000/year
Delivery Time :
20 days
Packaging Details :
1. Electrical parts and hoist are packed by strong plywood box, to prevent the rain soaked. 2. Main beam, end beam, platform railing and others are packed in plastic woven cloth, to prevent corrosion in seawater.
Span :
7.5~31m
Feature :
Double Girder Overhead Crane
Max. lifting height :
6m~30m
Max. lifting load :
32t
Power source :
3 Phase 380V 50hz
Application :
factory. Widly used
Control method :
Cabin,Ground Control
Working duty :
A3-A5
Description

The Double Girder Overhead Crane is a lifting equipment that is horizontally framed over the workshop, warehouse and material yard for lifting and transporting materials. Bridge crane is installed on the crane beams on both sides of the height of the plant, and the whole equipment can run horizontally on the tracks laid on the crane beam. The hook and the electric hoist are used for lifting motion to complete the lifting and moving of heavy objects.

The double girder overhead crane are widely used in warehouses, factories, docks, hydropower stations, etc.

Technical design base of double girder overhead crane

1. Loading Capacity: According to weight of lifting load, working environment, plant structure load capacity, crane wheel pressure and so on. Our double girder overhead crane can be designed up to 500t capacity.
2. Span: According to distance between runways or columns in workshop, our engneers can derive specific technical scheme. Further more, if customer can provide layout of the plant, our engineer will offer precise and economic solution. Generally, span of crane can be up to 31.5m and available for customized span.
3. Lifting height: According to distance from roof top to ground in workshop, our engneers can confirm lifting height needed. Also, height from roof top to runway will be very important for installation. If customer can provide drawing of the plant section, we can find better choice for you.

Double Girder Overhead Crane Bridge Type 40t Explosive Proof

Lifting capacity(t) 2 5 7.5 10 15 20 25 32 50
Span(m) 8-35
Max lifting height(m) 20 14 18 14
Main lifting speed(m/min) A5 12.6 12.6 8.5 8.5 7.9 7.2 8.5 7.5 5.9
A6 15.6 15.6 13.3 15.6 13.3 13 12.5 9.5 7.8
Trolley travelling speed(m/min) 37.2 37.2 43.8 37.2 43.8 44.6 44.6 42.4 38.5
Main lifting motor(m/min) a5 13 13 17 13 17 26 26 42 55
q6 15 15 22 15 22 37 45 55 75
Trolley motor(kW) 2.5 2.5 2.5 1.8 2.2 3.7 3.7 5.5 7.5
Work duty A5-A6
Power supply AC 220-690V,50Hz
