150 Ton Rubber Tyre Shipping Gantry Crane For Lifting Goods
150 Ton Rubber Tyre Shipping Gantry Crane For Lifting Goods
150 Ton Rubber Tyre Shipping Gantry Crane For Lifting Goods
150 Ton Rubber Tyre Shipping Gantry Crane For Lifting Goods
150 Ton Rubber Tyre Shipping Gantry Crane For Lifting Goods
150 Ton Rubber Tyre Shipping Gantry Crane For Lifting Goods
150 Ton Rubber Tyre Shipping Gantry Crane For Lifting Goods
150 Ton Rubber Tyre Shipping Gantry Crane For Lifting Goods
150 Ton Rubber Tyre Shipping Gantry Crane For Lifting Goods
150 Ton Rubber Tyre Shipping Gantry Crane For Lifting Goods
Specifications
Brand Name :
Dowell Crane
Model Number :
RTG
Place of Origin :
China (Mainland)
Certification :
CE ISO
MOQ :
1 Set
Price :
100000 usd
Packaging Details :
wooden case for electric parts, others by plastic woven cloth. It can reduce abrasion when transport.
Delivery Time :
90 work days
Payment Terms :
L/C, T/T
Supply Ability :
5000 Sets per Year
Product Name :
Rubber Tyre Gantry Crane
Working Duty :
A3-A7
Capacity :
1-100 Ton
Hoisting Mechanism :
Wire Rope
Ambient Temperature :
-20℃~+40℃
Lifting mechanism :
Hydraulic Lift
Span :
18-25 Meters
Lifting Height :
20-30 Meters
Description

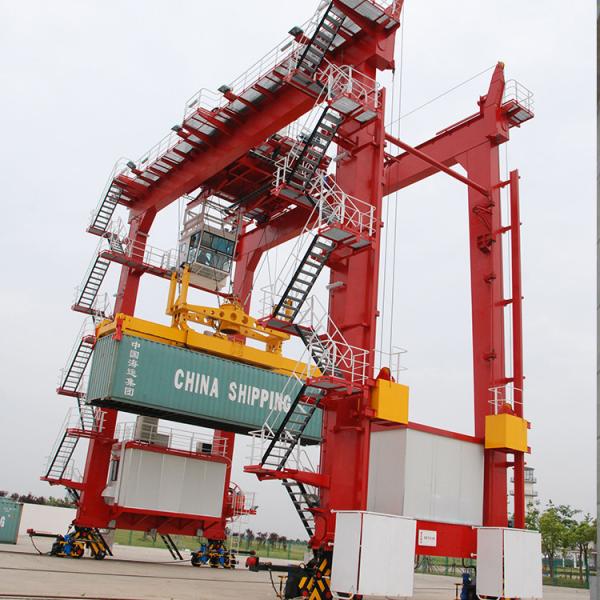

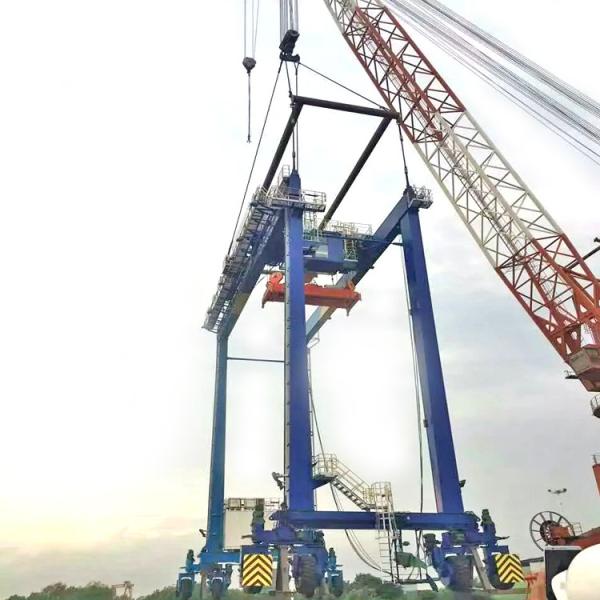

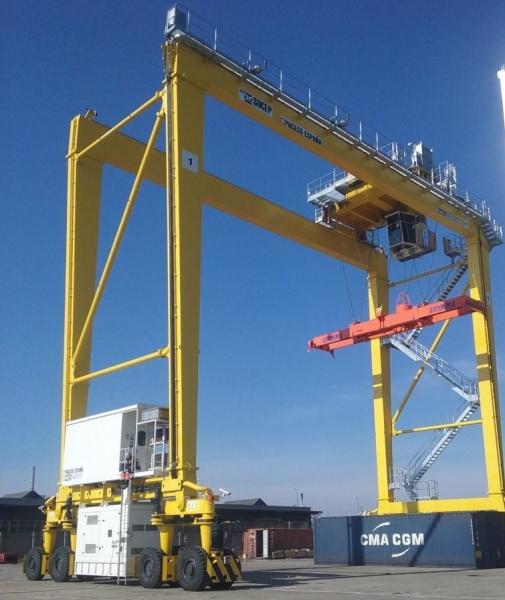

Qualified Shipping 150 Ton Rubber Tyre Gantry Crane For Lifting Goods

Product Description:

The Shipping Container Crane is a powerful and efficient piece of machinery, capable of lifting, carrying and moving shipping containers with ease. It features a hydraulic lift span of 18-25 meters, and a crane traveling speed of 20-30 m/min, making it an ideal choice for a variety of industrial applications. With a working duty of A3-A7, and an ambient temperature range of -20℃~+40℃, the Shipping Container Crane is designed to operate in even the harshest of conditions. It is highly reliable and easy to operate, offering operators a safe and efficient solution for their shipping container needs. With its heavy-duty construction and powerful hydraulic lift, the Shipping Container Crane is an excellent choice for any shipping container transport needs.

Technical Parameters:

Model

LJ35/40-23

LightType LJ40-23
Capacity(under spreader) (t) 35,40 40
Work Duty A7,A8 A6,A7
Span (m) 23.47 23.47
Lifting Height (m) 12.2~17.8 16.5
Stack Layers/Passing Layers 3/4~5/6 5/6
Container Model 20',40',45' 20',40',45'
Spreader Rotating Angle ±5° ±5°
Hoisting Speed (m/min) 13/26,23/52 12/18,18/28
Cross Travel Speed (m/min) 50,70 24
Long Travel Speed (m/min) Full Load-90,Without Load-130 Full Load-20,Without Load-40
Max.Wheel Load (kN) 310 310
Total Rating (kW) 150,230 110,150
Power Supply Electric,Diesel engine,Electric-Diesel drive

Schematic drawing:

Support and Services:

Shipping Container Crane Technical Support and Service

We provide technical support and service for our Shipping Container Crane. Our team of experienced service technicians are available 24/7 to assist you with any technical issues you may encounter. We offer on-site and remote support, as well as a variety of online resources. Our online resources include:

  • Troubleshooting guides
  • Installation instructions
  • Product manuals
  • Frequently asked questions
  • Software updates

Packing and Shipping:

The Shipping Container Crane will be securely packaged in a custom designed wooden crate, allowing for safe and secure transportation. The crate will be carefully sealed to ensure the safety of the crane during transit.

The Shipping Container Crane will be shipped via reliable freight carriers, who guarantee a safe delivery within the specified time frame. The shipping costs will depend on the final destination of the crane.

FAQ:

Q1: What is the brand name of Shipping Container Crane?
A1: The brand name of Shipping Container Crane is Dowell Crane.
Q2: What's the model number of Shipping Container Crane?
A2: The model number of Shipping Container Crane is RTG.
Q3: Where is Shipping Container Crane made?
A3: Shipping Container Crane is made in China (Mainland).
Q4: Does Shipping Container Crane has certification?
A4: Yes, Shipping Container Crane has CE ISO certification.
Q5: What's the minimum order quantity for Shipping Container Crane?
A5: The minimum order quantity for Shipping Container Crane is 1 Set.
