Electrical Bridge Overhead Crane Lifting Metal Equipment 5 Ton For Metallurgy
Electrical Bridge Overhead Crane Lifting Metal Equipment 5 Ton For Metallurgy
Specifications
Brand Name :
Dowellcrane
Model Number :
QDY Double Girder Overhead Crane
Certification :
ISO CE BV CCC GOST SGS
Place of Origin :
China (Mainland)
MOQ :
1 Set
Price :
USD 20000-80000 /Set
Payment Terms :
L/C, T/T
Supply Ability :
2000 Sets per Year
Delivery Time :
30 days
Packaging Details :
Main body packaged by high quality water-proof plastic woven cloths; spare parts are packed in high quality plywood box.
Lifting speed :
5-15M/MIN
Trolley running speed :
20-40M/MIN
Crane running speed :
50-100M/MIN
Working duty :
A3-A8
Control method :
cabin control/wire rope remote control
Power supply :
3 phase 380V 50hz or request
Description

Lifting Metal Equipment Light 5 Ton Electrical Bridge Overhead Crane

Product Description

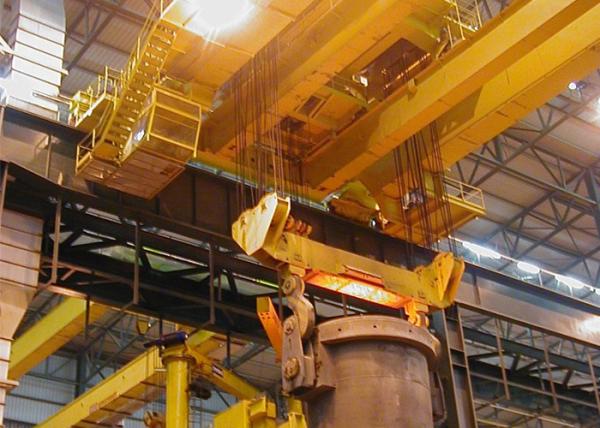

Lifting Metal Equipment Light 5 Ton Electrical Bridge Overhead Crane is mainly used for lifting and transporting molten metal in metallurgy, casting and other places. The working level of the whole machine is A7. Heat insulation layer device is installed at the bottom of main beam. Crane assembly and test in accordance with the quality inspection office special [2007] 375 issued by the general administration of quality supervision, inspection and quarantine other places for lifting molten non-metallic materials and hot solid metal may also be selected as reference. (note: in the following figure, H0 is the height of the bumper increase.)

Electrical Bridge Overhead Crane Lifting Metal Equipment 5 Ton For Metallurgy

Product Characteristics

Crane model :QDY

Lifting weight :5 t - 75 t

Span :10.5 m - 35 m

Lifting height: 6m-24m

The lifting speed is 5m/min 10m/min 12m/min

The trolley speed is 20m/min

The speed of large vehicle is 30m/min 40m/min 50m/min

Working level :a7-a8

Control mode :wireless remote control + cab control


Environmental Conditions


1. The power supply of the crane is three-phase ac, the rated frequency is 50HZ, and the rated voltage is 380V
2. The working environment temperature is 10-+60℃;
3. The relative humidity at +40℃ shall not exceed 50%;
4. If the above requirements are exceeded, the terms of the order contract shall be implemented according to the user's needs.

Parts Of Crane

Electrical Bridge Overhead Crane Lifting Metal Equipment 5 Ton For Metallurgy
