Workshop Travelling Double Girder Truss Gantry Crane
Workshop Travelling Double Girder Truss Gantry Crane
Specifications
Brand Name :
Dowellcrane
Model Number :
MG Truss Gantry Crane
Certification :
ISO CE BV CCC GOST SGS
Place of Origin :
China (Mainland)
MOQ :
1 Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
6000 Sets per Year
Delivery Time :
55 work days
Packaging Details :
Main body packaged by high quality water-proof plastic woven cloths; spare parts are packed in high quality plywood box.
cantilever length :
0-15m
Lifting speed :
5-15M/MIN
Trolley running speed :
20-40M/MIN
Crane running speed :
50-100M/MIN
Control method :
cabin control/wire rope remote control
Protection grade :
IP54
Description

Workshop Travelling Double Girder Certificated Truss Gantry Crane With Electric Hoist

Product Description

workshop travelling double girder certificated truss gantry crane with electric hoist is composed of gantry, crane crab, trolley traveling mechanism, cab and electric control system.
The gantry is of a box-shape structure, the girder is bias track double girder and the leg is divided into type A and type U according to user’s requirements.

The closed cab is employed for operation, where there are adjustable seat, insulating mat on the floor, toughened glass for the window, fire extinguisher, electric fan and auxiliary equipment such as air conditioner, acoustic alarm and interphone which can be furnished as required by users.

Product Advantages

1. Intelligent overload limiter in the hoist improves the cranes safety maximum.
2. Our polyurethane buffer is of high-class quality, durability and shock-resistance.
3. Advanced emergency shutdown system.
4. Hoisting limiter, travel limit switch of cranes promises safety work.
5. Integrative out-voltage protection and phase protection.
6. Power production capacity, professional technicians, and excellent services.
7. Strictly delivery inspection guaranteeshigh-class quality products.

Technical Data Sheet

Lifting Capacity

 T 10 16 20/10 32/10 36/16 50/10
Span m 22~35m

Speed

 Main Hook Lifting m/min 8.5 7.9 7.2 7.5 7.8 6
Aux. Hook Lifting 10.4 10.4 10.5 10.4
Traveling of Trolley 43.8 44.5 44.5 41.9 41.9 38.13
Traveling of Crane 37.6/40 38/36 38/36 40 40/38 38
Operational Model Cabin
Working Duty A5.A6
Power Supply Three-phase A.C. 380V, 50Hz or customized

If clients have special requirements, our company accept customized according to your actual need.

Control way Pendent line control, Cabin control and remote control
Electrical parts SCHNEIDER, SIEMENS, CHINT
VFD SCHNEIDER, SIEMENS, CHINT, YASKAWA
Motor XINDALI, JMU, ABM. ABB, WEG. SIEMENS or any special specified
Reducer TAILONG, TAIXING, SEW or any special specified
Working duty A5/A6/A7/A8
Overload limiter YES/NO
Audible and visual alarm YES/NO

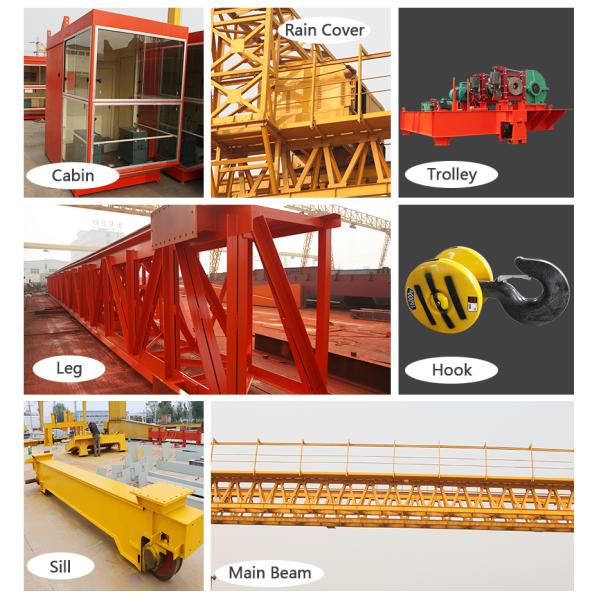

Parts Of Crane
Workshop Travelling Double Girder Truss Gantry Crane

Product packaging
Workshop Travelling Double Girder Truss Gantry Crane
Our Advantages
Workshop Travelling Double Girder Truss Gantry Crane
Exhibition
Workshop Travelling Double Girder Truss Gantry Crane

After-sale Service
Workshop Travelling Double Girder Truss Gantry Crane

FAQ
1. What do you do?
- Our products mainly include: different types of overhead crane, gantry crane, beam girder launcher, hoist, spider crane, lifting platform,etc lifting equipement.

2. Can you do OEM for us ?
- OEM are welcome for us. Customers’ brand, logo, label can be customized for the products and carton package, but based on a certain quantity.

3. Can you help us to do some change about your product?
- Yes, special drawing and design will be evaluated by our technical department, unit cost will be calculated by finance department for your final confirmation. All procedures will be informed and confirmed with you in advance.

4. Can I get a sample?
- Yes. Samples are welcome for us. But products cost and few extra cost will be charged from customer.

5. Are you a factory or trading company?
- We are a leading manufacturer and trading company in this line, the factory was established in 1955, Datong Machinery is one of the largest and historic manufacturers of hydraulic tools and other garage tools in China. The facotry has passed theISO9001:2008 quality management system. .

6. Where is your company location?
- The factory located in xinxiang city, HeNan Province.

Workshop Travelling Double Girder Truss Gantry Cranewelcome to contact us for more information!
