LDP Model Electric Warehouse Single Beam Overhead Crane 5 ton
LDP Model Electric Warehouse Single Beam Overhead Crane 5 ton
LDP Model Electric Warehouse Single Beam Overhead Crane 5 ton
LDP Model Electric Warehouse Single Beam Overhead Crane 5 ton
LDP Model Electric Warehouse Single Beam Overhead Crane 5 ton
LDP Model Electric Warehouse Single Beam Overhead Crane 5 ton
LDP Model Electric Warehouse Single Beam Overhead Crane 5 ton
LDP Model Electric Warehouse Single Beam Overhead Crane 5 ton
Specifications
Brand Name :
Dowellcrane
Model Number :
LDP
Certification :
SGS IOS CE
Place of Origin :
China (Mainland)
MOQ :
1
Price :
usd2000-20000/set
Supply Ability :
4500sets per year
Delivery Time :
40dys
Packaging Details :
Packed by plywood crate or plastic woven cloth
Product name :
LDP Model Electric Warehouse Single Beam Overhead Crane 5 ton
Condition :
New
Lifting speed :
5-15M/MIN
Application :
warehouse and so on
Working duty :
A3-A5
Rated loading capacity :
1t~20t
Warranty :
2 Years
Span :
10.5-31.5m
After-sales service provided :
Field installation,Free spare parts
Control method :
cabin control/wire rope remote control
Description

LDP Model Electric Warehouse Single Beam Overhead Crane 5 ton

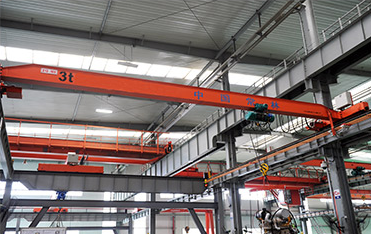

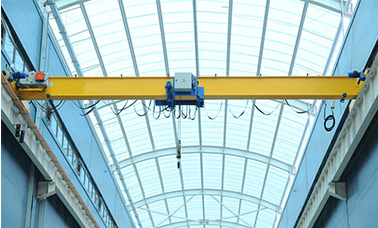

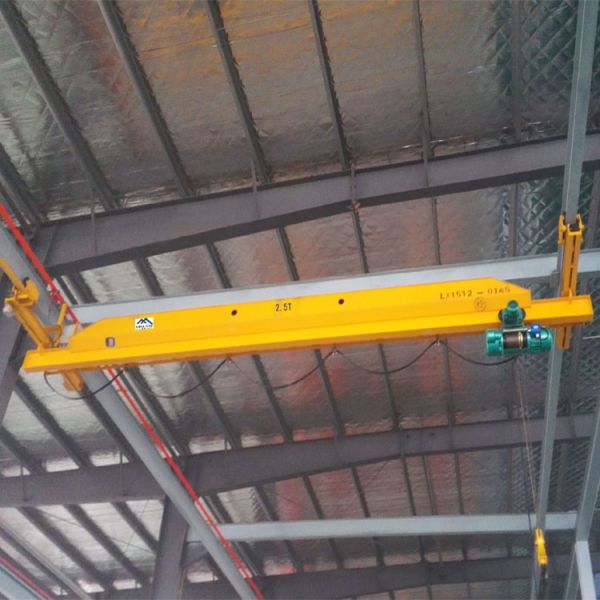

LDP Single Beam Overhead Crane basic description

LDP Model Electric Warehouse Single Beam Overhead Crane 5 ton is a super low clearance light crane, electric hoist on one side of the main beam, increasing hook service space, can reduce the factory height and cost. LDP model electric single girder overhead crane is designed and produced according to GB/T3811-2008,JB/T 1306-2008 standard and used with model CD1,MD1. It is a light duty crane with rated load of 1 to 20ton.

The product with large trolley track distance, smooth operation, compact structure, good rigidity, sensitive operation, low noise, tsafe, reliable, beautiful shape, widely used in the working environment temperature-20℃~+40℃, and the workshop's headroom is low and other places. Its rated load is 3T~20T, span is 7.5M~31.5M, working grade is A3, A4 and lifting height is 7-25m.

The main operating method is ground control(ground control+remote control). If the span and lifting height is out of the range that style lists, we can do non-standard design according to user's requirement.

Technical Parameter

Lifting Capacity T 1t 2t 3t 5t 10t 16t 20t
Span m 7.5~22.5m 7.5~31.5
Speed Lifting MD1 hoist m/min 8/0.8 (7/0.7) 3.5/0.35
CD1 hoist 8 (7) 3.5
Traveling of electric hoist 20 20
Traveling of crane 20/30 20/30
Wheel diameter Φ270 Φ370
Width of trail 37~70mm 37~70mm
Operational Model remote control; ground handle remote control; ground handle
Working Duty A3
Power Supply According to your demands

According to your demands

LDP Model Electric Warehouse Single Beam Overhead Crane 5 ton

Safe devices
1.Weight overload protection device
2.Top quality durable polyurethane buffer
3.Crane traveling limit switch
4.Low voltage protection function
5.Emergency stop system
6.Current overload protection function

Parts of bridge crane

LDP Model Electric Warehouse Single Beam Overhead Crane 5 ton

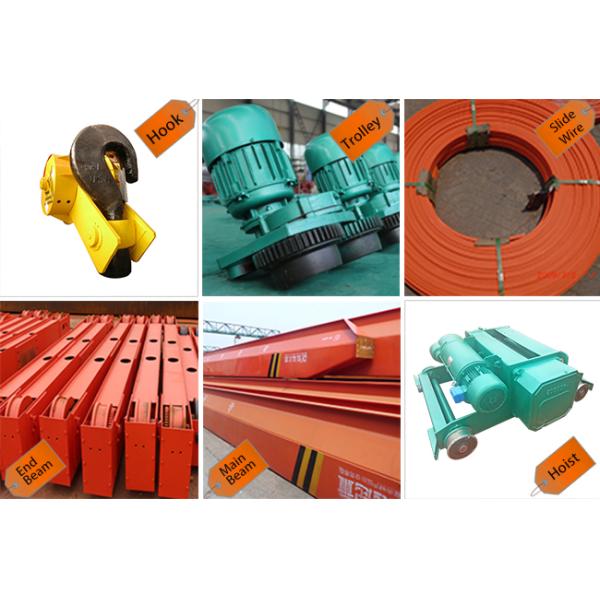

The Main part for Single girder crane
A. End carriages with driven motor B. Crane girder C. Festoon system and crane control pannels D Crane power collecter frame E Electric hoist F Troley stop G Pendent switch
