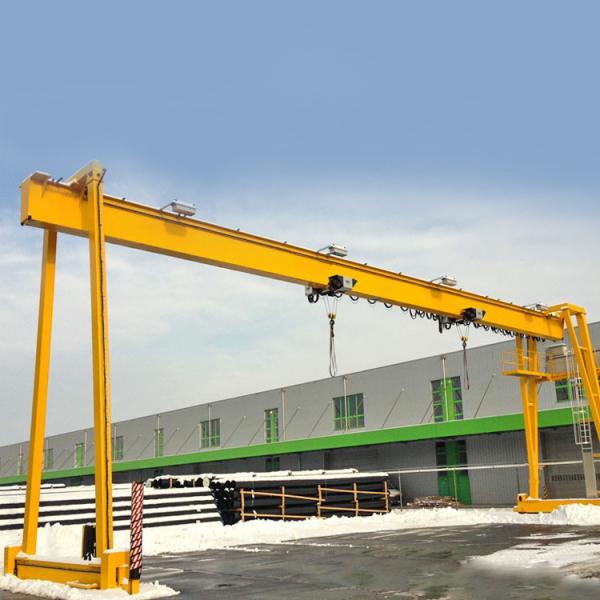

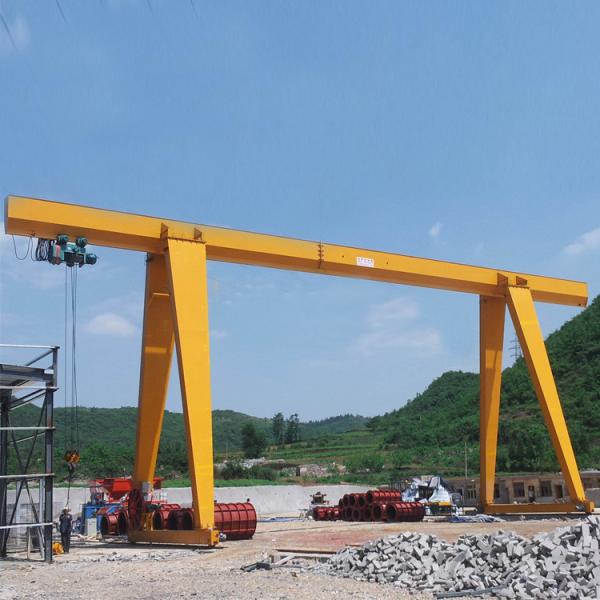

Warehouse A Frame Lifting Gantry Crane A5 With Electric Wire Rope Hoist
Warehouse A Frame Lifting Gantry Crane A5 With Electric Wire Rope Hoist
Warehouse A Frame Lifting Gantry Crane A5 With Electric Wire Rope Hoist
Warehouse A Frame Lifting Gantry Crane A5 With Electric Wire Rope Hoist
Specifications
Brand Name :
Dowellcrane
Model Number :
MH Gantry Crane
Certification :
CE,ISO
Place of Origin :
China (Mainland)
MOQ :
1 Set
Price :
$2000~30000/1 set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 Sets per Year
Delivery Time :
30 days
Packaging Details :
Main body packaged by high quality water-proof plastic woven cloths; spare parts are packed in high quality plywood box.
Product name :
Warehouse A Frame Lifting Gantry Crane with Electric Hoist
Working duty :
A3-A5
Control method :
cabin control/wire rope remote control
Condition :
New
Warranty :
2 Years
Span :
customized
Feature :
Gantry Crane
Application :
Outdoor,Warehouse,factory,workshop
Lifting mechanism :
manual hoist or wire rope hoist
Description

Warehouse A Frame Lifting Gantry Crane with Electric Hoist

Warehouse A Frame Lifting Gantry Crane with Electric Hoist Description

Single and Double girder gantry crane with hooks is applied outside warehouse or railway sideways to do common lifting and unloading works. This kind of crane is composed of bridge, support legs, crane travelling organ, trolley, electric equipment,strong lifting winch. The frame adopts box-type welding mechanism. Crane travellilng mechanism adopts separate driver. All mechanisms are operated in the driver cabin. Power is supplied by cable or slide wire. There are different capacity double beams gantry crane for your choice according to your different use..



Warehouse A Frame Lifting Gantry Crane with Electric Hoist Drawings

Warehouse A Frame Lifting Gantry Crane A5 With Electric Wire Rope Hoist

Warehouse A Frame Lifting Gantry Crane A5 With Electric Wire Rope Hoist

Warehouse A Frame Lifting Gantry Crane with Electric Hoist Parameters

Tonnage (t)
1t to 20t
Span (m)
7.5-31.5/customization
Running speed of cart (m/min)
20,30
Trolley running speed (m/min)
20,30
Motor power (KW)
0.8*2,1.5*2,2.2*2
Electric hoist type
MD1type , CD1type
Lifting speed (m/min)
MD(8/0.8 ,7/0.7,3.5/0.35)CD(8,7,3.5)
Lifting height (m)
6m-30m,customization
Working level
A3-A5
power supply
380V 50HZ/customization
Wheel diameter (mm)
Φ270,Φ400
colour
optional
Manipulation method
Remote control, driver's cab, handle
Packing
Wooden case, naked pack, waterproof cloth packing
install service
Telephone/video/on-site guidance
After-sales service
Telephone/video/on-site guidance
Origin
henan china
Warehouse A Frame Lifting Gantry Crane with Electric Hoist Features
  1. Simple and compact structure, steady performance.
  2. Easy to install and high efficiency.
  3. Overload, low voltage protective device.
  4. Pendent control and remote control.
  5. Easy maintenance.

After-sales service

  • Long warranty period, maintenance-free for life.
  • Can provide free instruction and maintenance manual.
  • Can provide free engineer video guidance.
  • In case of special circumstances, after-sales service can be provided by dispatched engineers.


Our Advantages

  1. We serve every customer seriously. In order to better serve you, you will be equipped with a professional service team: sales manager + customer service + technical engineer to ensure that any questions you have can be answered accurately in time.
  2. After obtaining the accurate plant parameters, we will make 2-3 sets of plan packages of different models (including plan drawings, product drawings, detailed crane parameters, plan advantages and disadvantages, etc.) by professional engineers according to your needs.
  3. After receiving the order, we will arrange the production and the deployment of the purchased parts as soon as possible. The production process supports online inspection and tracking at any time.


FAQ


Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. The logo and the color can be customized?
A3. Yes, we welcome you to sample custom.
Q4. Any other good service your company can provide?
A4. Yes,we can provide good after-sale and fast delivery.
