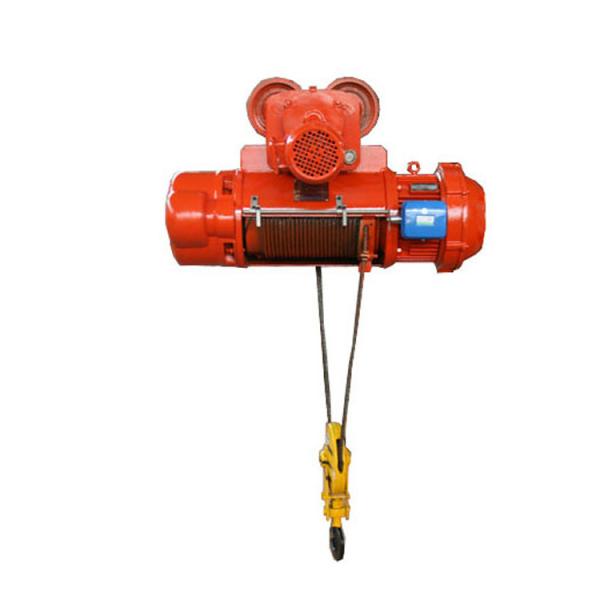

5 Ton Electric Hoist 220V Power Wire Rope Forged Hooks
5 Ton Electric Hoist 220V Power Wire Rope Forged Hooks
5 Ton Electric Hoist 220V Power Wire Rope Forged Hooks
5 Ton Electric Hoist 220V Power Wire Rope Forged Hooks
Specifications
Brand Name :
Dowellcrane
Model Number :
CD MD
Certification :
CE ISO
Place of Origin :
China (Mainland)
MOQ :
1 Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 Set/Sets per Month
Delivery Time :
15 work days
Packaging Details :
electric hoist, motor packed by water-proof film, spare parts packed by high quality plywood box
Working duty :
M3/M5
Working temperature :
-20 ~ 40 ℃
Lifting Height(M) :
6-30m
Lifting Speed :
0.8/8M/Min
Motor protection class :
IP54 IP55 IP65
Condition :
New
Color :
According to your requirement
Voltage :
380V,220v/50Hz,220V-440V
Application :
Lifting Goods,warehouses,Construction used all kinds of cranes
Capacity :
0.5T~30T
Usage :
Construction Hoist,Mining Hoist,Material Handling,portable,Household
After-sales service provided :
Engineers available to service machinery overseas,Field maintenance and repair service,Free spare parts
Description

5 ton Electric Power Wire Rope Hoist

Product description

5 ton electric power wire rope hoist is a kind of light and small lifting equipment, which can be installed on single beam crane, bridge crane, gantry crane, arm cranes ,cantilever cranes, etc. It can also be used as a winch .It is widely used in factories, mines, harbors, warehouses, cargo storage areas and shops.

Application

1,extensively used in factories, workshops, warehouses and many other occasions to hoist materials directly,

2,installed on the straight or curve I-steel beam of Single-girder Cranes to lift goods.

3,It can also be used together with Electric Hoist Double-beam, gantry crane and slewing cranes to hoist different items and so on.

4,It has so many appllication usages just for its advantages, such as: tight structure, convenient operation, light weight, wide common use and so on.

Main Advantages


• CE approved.
• Lightweight robust construction.
• Low effort to lift maximum load.
• Fully forged hooks.
• Overload protection device available upon request.
• Excellent after-sale serve.

More specification as follows

CD/MD Electric Hoist
Lifting weight(t)
1T
2T
3T
5T
10T
Lifting height (m)
6/9/12/18/24/30
6/9/12/18/24/30
6/9/12/18/24/30
6/9/12/18/24/30
6/9/12/18/24/30
Lifting speed (m/min)
8 8/0.8
8 8/0.8
8 8/0.8
8 8/0.8
7 7/0.7
Running speed (m/min)
20
20
20
20
20
Bonding number(n/hr)
120
120
120
120
120
Wire rope
Diameter
7.4m/m
11mm
13mm
15mm
15mm
Structure
D-6*37+1
D-6*37+1
D-6*37+1
D-6*37+1
D-6*37+1
I-beam models
16-28b
20a-32c
20a-32c
25a-45c
32a-63c
Motor
Hoist
Power
1.5 1.5/0.2
3 3/0.4
4.5 4.5/0.4
7.5 7.5/0.8
13 13/2.0
Speed
1380
1380
1380
1400
1400
Operation
Power
0.2
0.4
0.4
0.8
0.8
Speed
1380
1380
1380
1380
1380
Type of work
M3
M3
M3
M3
M3
Institution level
25%
25%
25%
25%
25%

Detailed Images

5 Ton Electric Hoist 220V Power Wire Rope Forged Hooks

​Product Process

Packaging&shipping

1. Hoist and electric parts will be packed by plywood crate, for avoiding the demage from goods crash and impact during the delivery.
2. Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the transportation.
3. Only the best transport solution will be taken for saving your cost uttermost on finance, security and time.

About Us

Henan Dowell Crane Co., Ltd is a China-leading group of crane businesses which was founded in 1955, And serving a broad range of customers all over the world to provide a complete set of advanced lifting project, including Gantry crane, Bridge crane, Jib crane, Accessory.
a). Henan Dowell Crane Co., Ltd has already obtained the CCC,CE,BV,SGS,ISO OHSAS certifications and has won over 60 honors.
b). Our company offers services for more than 5000 companies, and the products are polular in more than 100countries.
