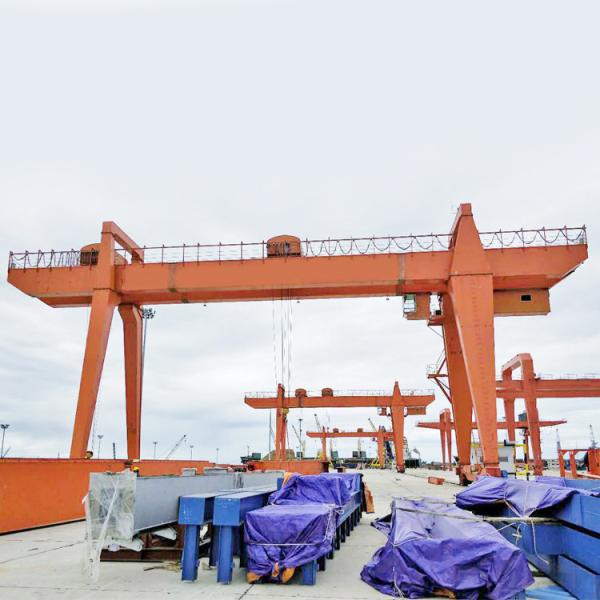

MG Type 380V Gantry Crane Steel Movable Heavy Duty
MG Type 380V Gantry Crane Steel Movable Heavy Duty
MG Type 380V Gantry Crane Steel Movable Heavy Duty
MG Type 380V Gantry Crane Steel Movable Heavy Duty
MG Type 380V Gantry Crane Steel Movable Heavy Duty
MG Type 380V Gantry Crane Steel Movable Heavy Duty
Specifications
Brand Name :
Dowellcrane
Model Number :
MG
Certification :
ISO CE BV CCC GOST SGS
Place of Origin :
China (Mainland)
MOQ :
1 Set
Price :
USD 23000-100000 SET
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 Sets per Year
Delivery Time :
35 work days
Packaging Details :
Main body packaged by high quality water-proof plastic woven cloths; spare parts are packed in high quality plywood box.
Span :
3~40m
cantilever length :
0-15m
Rated Lifting Moment :
550KN
Lifting speed :
5-15M/MIN
Trolley running speed :
20-40M/MIN
Crane running speed :
30-50M/MIN
Control method :
cabin control/wire rope remote control
Power supply :
3 phase 380V 50hz or request
Work duty :
A5~A7
Control :
remote , pendant line , cabin
Description

Heavy Duty MG Type Steel Movable Gantry Crane


Heavy Duty MG Type Steel Movable Gantry Crane Description

MG type double girder gantry crane composed of gantry, crane crab, trolley traveling mechanism, cab and electric control system, the gantry is box-shape structure, the track is at the side of each girder and the leg is divided into type A and type U according to user’s requirements. The control method could be ground control, remote control, cabin control or both, in the cab there are adjustable seat, insulating mat on the floor, toughened glass for the window, fire extinguisher, electric fan and auxiliary equipment such as air condition, acoustic alarm and interphone which can be furnished as required by users. This double girder gantry crane is beautiful design and durable and widely used in open-air warehouse, of course, also can be used indoors. According to your demands, we can design the most suitable crane for you.

Heavy Duty MG Type Steel Movable Gantry Crane Technical Parameters

Capacity T 50/10 75/20 100/20
Span m 7.5~31.5
Lifting height Main hook m 12 20 22
Aux.hook m 16 22 22
Operation method Pendent control,wireless control,cabin control
Speed Lifting Main hook m/min 5.9 5.5 3.53
Aux.hook m/min 13.2 9.23 7.2
Cross travel m/min 38.5 38.4 33.86
Long travel m/min 74.6 65 65.6
Lifting mechanism type electric winch cart
Working duty A5,A6,A7
Power supply AC 220/380/400/415/460V,50/60Hz, 3P

Heavy Duty MG Type Steel Movable Gantry Crane Drawing

MG Type 380V Gantry Crane Steel Movable Heavy Duty

Gantry Crane Details

MG Type 380V Gantry Crane Steel Movable Heavy Duty

Main Advantages of Heavy Duty MG Type Steel Movable Gantry Crane

  • Reasonable structure
  • Favorable performance
  • Smooth starting and stopping
  • Safe and reliable traveling
  • Low noise, commodious cabin and good view
  • Convenient maintenance, excellent exchangeability for parts and components
  • Saves electricity specifications

Safety Devices

  1. Overload protection;
  2. Main lifting motor with thermal protection;
  3. Hooks with latch;
  4. Protective earthing;
  5. Crane switch and travel end switch;
  6. Emergency switch can stop all movement when any dangerous happened;
  7. All cranes must be preassembled and tested before leaving factory and offer the certification of test.

Package & Delivery

MG Type 380V Gantry Crane Steel Movable Heavy Duty

Our Service

1. We have a professional sales team,can privede u a quick and professional reply.
2. Exclusive engineer support at any time, so we can design within 24 hours.
3. 2 year warranty for whole machines, providing all parts free of charge.
4. Low charge for continue maintenance when warranty is expired.
5. c an produce the largest tonnage crane,just give us your demand.
6. We can provide free training to end-users, don't worry about the installation.

Q&A

Q: How can you ensure the quality?
A: Before delivery, every product with quality certification will be tested strictly by QC teams.

Q: What's your delivery period?
A: Exact period should be based on detailed requirements and actual period.

Q: What's your warranty period?
A: 36 months for cranes accepted.

Q: Do you have engineer oversea installation service?
A: Yes, we could provide the crane supervision, installation, commissioning & training.

Q: What kinds of products do you have?
A: All kinds of industrial crane (especially non-standard); Overhead Crane; Gantry Crane, Jib Crane, Wire Rope Hoist; Electric
Winch, etc.
