Highway Railway Construction Truss Type Launching Crane

Product Description

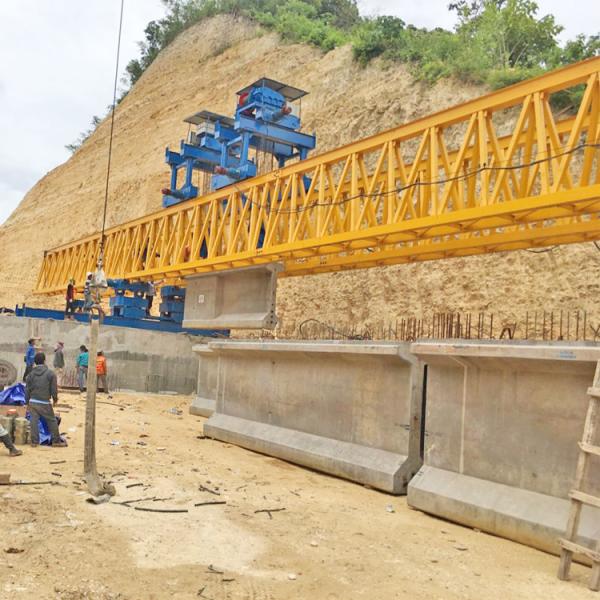

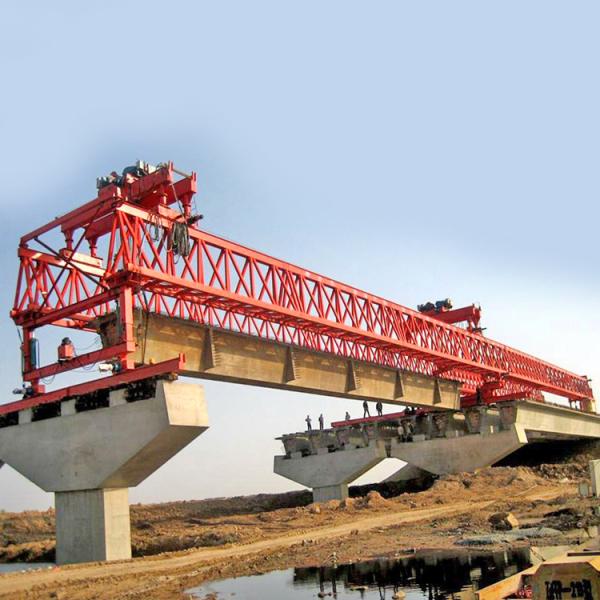

Highway Railway Construction Truss Type Launching Crane is used in the erection of precast beam bridges for span by span method of construction for precast beam girders like T beam,U beam, etc. This self beam launcher is suitable for bridge construction over river,valley or highway and so on.

Highway bridge beam launcher gantry is suitable for the construction of bridge for roads, railways and other bridge erection construction site. Its main function is to lift the prefabricated beams, then transported onto the prefabricated pier. It has big difference from the general cranes. It requests high security.

Parts Details Of Crane

Product Parameters

Product Advantages

• It's light weight, transportation, installation and removal is very convenient
• The Beam Launcher represents a good stability, high efficiency, safety and reliability, easy to adjust variable cross and easy to operate
• The legs do not through the bridge deck when longitudinal move, no need to lay vertical moving orbit, reduce the pressure on the deck
• It has three method picking up the precast beam: from rear end of the beam launcher on the deck level, from below on ground level, or from bridge side

Safety Features

• Crane traveling limit switch.
• Overload protection device.
• Lifting height limit device.
• Voltage lower protection function .
• Phase sequence protection function.
• Emergency stop function.
• Rain cover for outside hoist, driving units, electric cubicle.
• Warining indicator : flashing nights and warning sounds.

Installaton

Packing and Delivery

Our Advantages

• Help customers reduce work intensity and make material handling easier
• Help customers greatly improve work and production efficiency, and increase product output
• Solve the urgent needs of customers and provide customized special equipment
• Environmentally friendly design to help customers maximize energy saving and save money
