Top Running Overhead Travelling Bridge Crane Double Girder Electric 20 Ton
Top Running Overhead Travelling Bridge Crane Double Girder Electric 20 Ton
Top Running Overhead Travelling Bridge Crane Double Girder Electric 20 Ton
Top Running Overhead Travelling Bridge Crane Double Girder Electric 20 Ton
Top Running Overhead Travelling Bridge Crane Double Girder Electric 20 Ton
Top Running Overhead Travelling Bridge Crane Double Girder Electric 20 Ton
Specifications
Brand Name :
Dowellcrane
Model Number :
QD
Certification :
CCC CE ISO
Place of Origin :
China (Mainland)
MOQ :
1 Set
Price :
$23500-354500 /1 set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 Sets per Year
Delivery Time :
35-40 work days
Packaging Details :
Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the transportation
Product Name :
Electric Overhead Travelling Crane
Span :
10.5-31.5m
Lifting height :
5~30M or customized
Lifting speed :
5-15M/MIN
Trolley travelling :
30m/min
Working System :
A3-A5
Electric protection :
IP54,IP55
Voltage :
3PH AC 220--440 V
After-sales Service Provided :
Engineers available to service machinery overseas
Marketing Type :
New Product 2021
Color :
Customized
Condition :
New
Description

Top Running Double Girder Electric Overhead Travelling Crane 20 ton

Electric Overhead Travelling Crane Description

QD double girder overhead crane is composed with Girder frame, Crane travel device, and the trolley with lifting and moving device. There are Pave the rail for the trolley move on the main girder.

Assemble the moving table on the outside of the two main girder, one side is prepare for the assemble and maintenance the crane move device, another side is prepare for the assemble of the trolley conductor device.

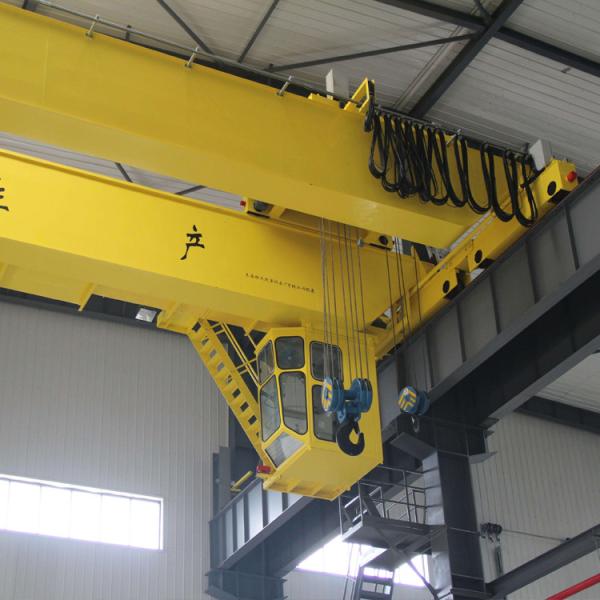

There are full field of view Cabin suspend under the main girder, there are joint control desk or single control box packed within the Cabin, assemble the sidelong ladder between the Cabin and moving table, The main girder joint with the two side end carriage which with the joint point in the middle.

Top Running Overhead Travelling Bridge Crane Double Girder Electric 20 Ton

Electric Overhead Travelling Crane Technical Data Sheet

Lifting Capacity T 5 10 16/3.2 20/5 32/5 50/10
Span m 10.5-31.5
Speed Main Hook Lifting A5 m/min 11.3 8.5 7.9 7.2 7.5 5.9
A6 15.6 13.3 13 12.3 9.5 7.8
Aux. Hook Lifting 16.7 19.5 19.5 10.4
Traveling of Crab 37.2 43.8 44.6 44.6 42.4 38.5
Traveling of Trolley A5 89.8/91.8 90.7/91.9/84.7 84.7/87.6 84.7/87.6 87/74.2 74.6
A6 92.7/93.7 115.6/116/112.5 112.5/101.4 112.5/101.4 101.4/101.8 75/76.6
Operational Model Cabin; remote control; ground handle
Working Duty A5,A6
Power Supply Three-phase A.C. 380V, 50Hz

Electric Overhead Travelling Crane Details Images
Top Running Overhead Travelling Bridge Crane Double Girder Electric 20 Ton

Features of Electric Overhead Travelling Crane

  • This type of overhead crane is most frequently used for general lifting purposes in machine shops, warehouses, storage yards, etc.
  • It is ideal for lifting heavy loads like 50 tons and can be used in more frequent operation.
  • The machine can be controlled remotely using a wireless remote control or in a cabin depending on your requirements.

Main parts

QD Double Girder Traveling Industry Overhead Crane
Top Running Overhead Travelling Bridge Crane Double Girder Electric 20 Ton


Package and Delivery

Top Running Overhead Travelling Bridge Crane Double Girder Electric 20 Ton

FAQ

Q. What's the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source other specials
you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons C: cabin(space capsule seat) control with joystick. Choose any type as you like.
Q. Can this type of work in a hazardous environment?
A: Sure! We can customize for you, acid proof or explosion-proof,
no problem with that.
Q. Safety device
A: Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
