Special Lifting Equipment Wall Mounted Jib Crane with Electric Chain Hoist

Wall Mounted Jib Crane Description

The wall-mounted jib crane is a special lifting equipment designed according to the needs of users. It has the advantages of novel structure, reasonable, simple, convenient operation, flexible rotation, light weight, flexible load movement, etc. It is an energy-saving and efficient material lifting equipment. It can be widely used in factories, mines, workshops, production lines, assembly lines, machine tools, and heavy objects lifting in warehouses and wharfs.

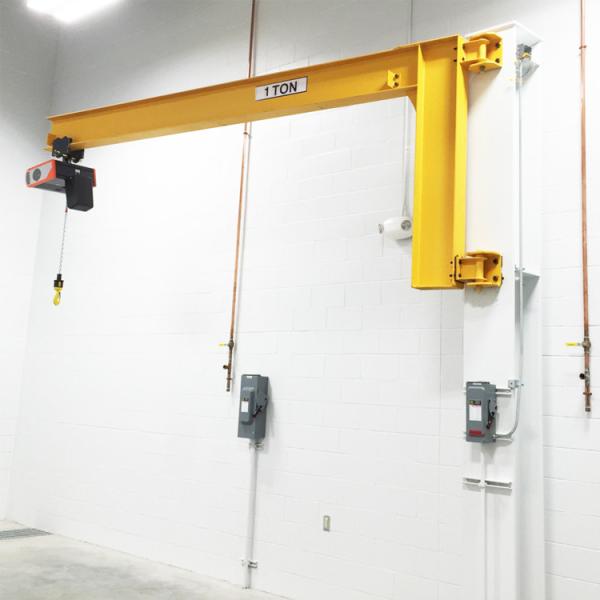

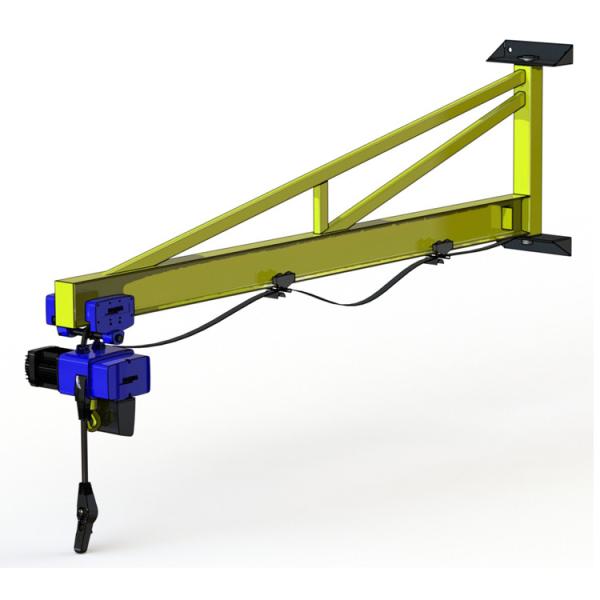

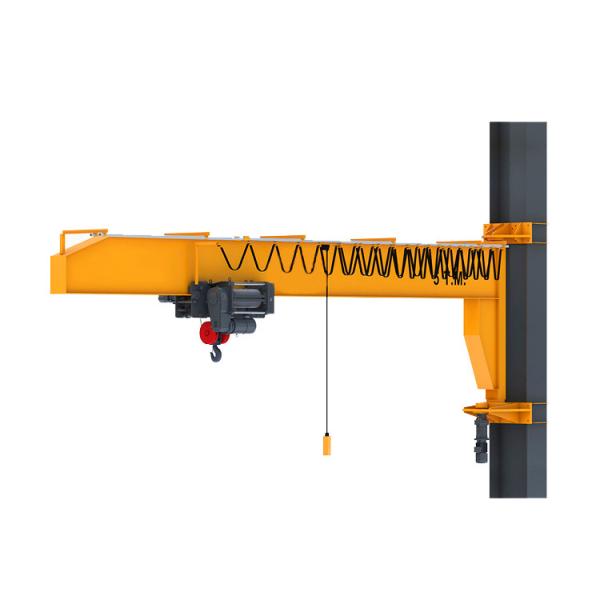

The wall-mounted jib crane (wall crane) consists of a bracket, a jib device and an electric chain hoist. The cantilever is fixed on the wall or cement column and can be rotated according to user needs. The slewing part is divided into manual slewing and electric slewing. The electric chain hoist is installed on the cantilever track for lifting heavy objects.
It is mainly composed of a cantilever, a slewing device and an electric hoist: the electric chain hoist has the functions of lifting and reciprocating on the beam. The cantilever beam can be driven by the reducer on the slewing device to drive the roller to rotate.

Wall Mounted Jib Crane Advantages

1.Convenient installation
2. Small occupied space
3. Top quality long time bearing polyurethane materials buffer
4. Crane traveling limit switch
5. Voltage lower protection function
6. Emergency stop system
7. Current overload protection system and so on

Wall Mounted Jib Crane Parameters

Wall Mounted Jib Crane Drawings and Details

Wall Mounted Jib Crane Safety System

• Overloading protection device.
• Current overload protection device
• Low voltage protection device
• Limit switch.
• Emergency stop device.

Package & Delivery

FAQ

Q1. Do you have any MOQ limit ?
A: Low MOQ, 1 set for sample checking is available

Q2. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.

Q3. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q4. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
