5m/Min Traveling 100T Concrete Box Girder Launcher Crane

Product Description of 5m/Min Traveling 100T Concrete Box Girder Launcher Crane

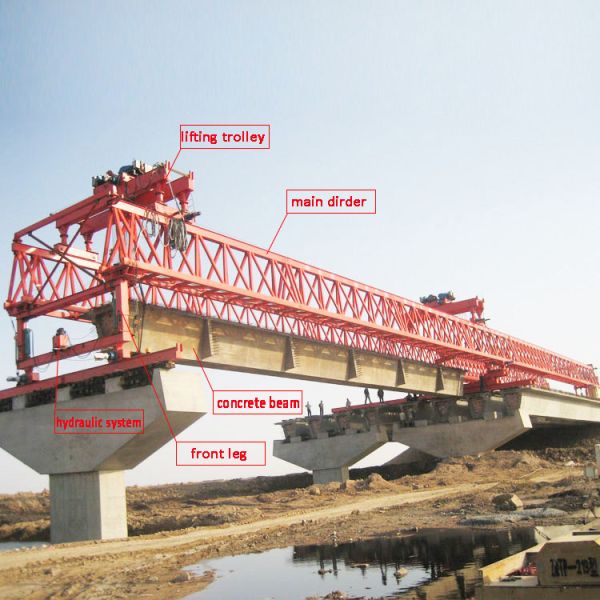

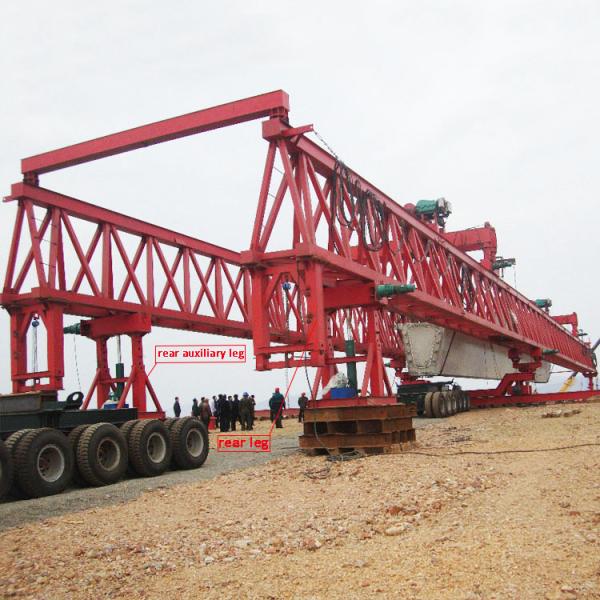

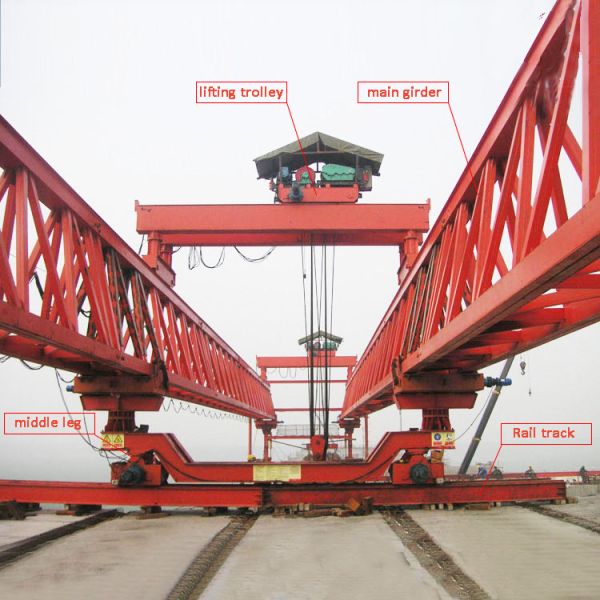

5m/Min Traveling 100T Concrete Box Girder Launcher Crane is bridge crane that places precast concrete beam into precast pier. And it consist of main girder,front leg, middle leg, rear leg, rear auxiliary leg, lifting trolley, hydraulic system and electrical device.

Double girder truss type launcher girder crane is suitable for highway and railway bridge, such as straight bridge, skew bridge, curved bridge and so on.

5m/Min Traveling 100T Concrete Box Girder Launcher Crane can be divided into highway erecting machine, railway erecting machine. Can also be divided according to the layout difference, such as: help guide beam type, transport frame, bridge machine price, through the tunnel and so on. Can also be set up according to the method of division, segment assembly, such as the whole hole. Also has according to the tonnage to divide, the highway bridge machine general tonnage is smaller than the force, generally less than 300 tons. Railway bridge erecting machine especially high-speed railway bridge erecting machine general tonnage than force, 450 tons, 900 tons, are very rare. Also some factory production of bridge erecting machine can be road and rail dual-use, erecting machine manufacturers, this kind of erecting machine is generally suitable for ordinary railway Bridges.

Schematic drawing of 5m/Min Traveling 100T Concrete Box Girder Launcher Crane

Product Advantages of 5m/Min Traveling 100T Concrete Box Girder Launcher Crane

5m/Min Traveling 100T Concrete Box Girder Launcher Crane not only can meet the standard set up, but also it can meet the cross curve erection, variable span erection, span continuous beam, composite beam, continuous steel etc. In addition to bridge erection, simply supported girder erection and point lifting, it is characterized by good stability, high efficiency, safety and reliability, variable span convenient adjustment and convenient operation and etc.

Parts Of Crane
