Industrial Single Beam European Style Overhead Crane 5 Ton

Product Description

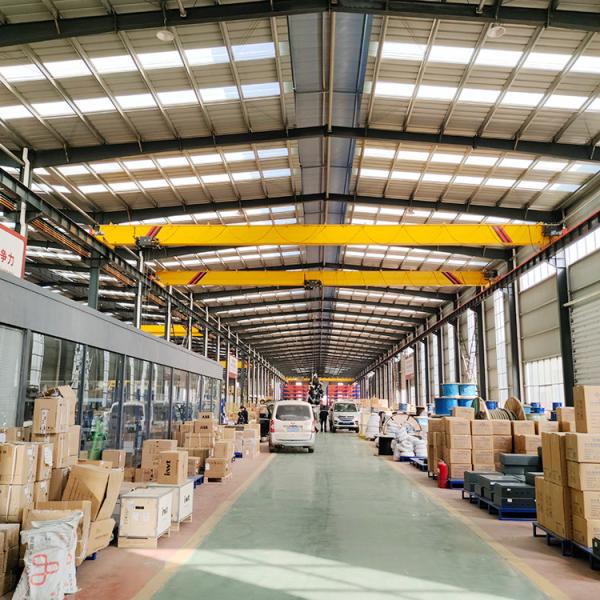

European standard single girder 10 ton overhead crane for A3 working level is consisting of the beam, electric hoist, long travelling mechanism, cabin or hand controller,and electrical control system. The electric hoist can move horizontally on the rail fitted under a beam.This type crane holds many characters of light structure, easy to install and maintain, which is typically used for either manufacturing or maintenance applications, where efficiency or downtime are critical factors, for instance, plants, warehouses, or material stocks. The beam adopts the whole type without welding, which structure is more reasonable and reliable.

Cabin, radio controller or hand controller can be used for operating. The cabin has seats inside. Floor adopts insulation pads and toughened glass for windows; extinguisher and fanareequipped. Other accessory equipments like air-condition, buzzer, interphone can be configured according to ourclient’s request! The travelling motor can be standard motor,soft stard motor or work with frequency controller to meet the different speed requirements.

Product Drawing

Product Parameters

Product Main Features

• The steel structure walks overhead, generally in the workshop
• Light weight, can save the cost of steel structure.
• Lifting and walking are very accurate.
• VVF/frequency conversion control, stepless speed change operation, very stable hoisting and walking.
• Six-way action ensures a wide enough working area.

Safety Devices

• Weight overload protection
• emergency stop system
• Overcurrent protection, short circuit protection
• Phase sequence protection
• Zero protection
• Voltage loss protection
• Limit switches and limiters for long and lateral travel of cranes
• Lifting ultra-high and ultra-low limit switch

Parts Of Crane

FAQ

Please inform us the following details while you send the inquiry:

• What is the lifting capacity?
• What is the span?
• What is the lifting height?(Lifting height=Distance from hook to ground)
• What is the lifting speed?(Single speed or double speed)
• What control mode do you need?(Pendant control or remote control or cabin)
• What is the power supply in your country?(Our standard powersupply is 380V,3Ph,50Hz)
• Is there any other special requirements?(Like need us to supply rails?how long? etc)
