T Choke DW5408 DIP Power AC Through Inductor
T Choke DW5408 DIP Power AC Through Inductor
Specifications
Brand Name :
Dowis
Model Number :
T Choke
Certification :
CE, UL, RoHs, ISO9001, 16949
Place of Origin :
CN
MOQ :
1000pcs
Payment Terms :
T/T, L/C
Delivery Time :
3-4Weeks
Packaging Details :
Carton Box
Model :
DW5408
Size :
35*35*43.5mm
Direct current resistance :
168mΩ MAX
Insulation Resistance :
100Mohm Min
Enameled wire grade :
CLASS H
Wire diameter :
QZY-2φ1.1mm 180℃
Description

T-DW5408DIP Power Inductor Manufacturer Customized T Choke

Inductors(Choke coils) Peaking/Drum 4*6, 5*7, 6*8, 8*10, 9*12, 10*12, 10*16, 14*15, 16*18, 18*20
Toroidal 6X3X2, 6X3X3, 8X5X3, 9X5X3, 9X5X4, 10X5X4,10X6X3, 10X6X3.5, 10X6X5, 13X8X6, 14X9X5, 20X12X6, 22X14X8, 25X15X10, 25X15X12, 28X14X10, 31X19X11, 31X19X13, 32X14X11,36X23X15, 38X18X13, 49X32X16
Rod 3X12, 3X15, 4X15, 4X20, 5X15, 5X20, 5X25, 5X30, 6X15, 6X20, 6X25, 6X30, 6X32, 6X35, 8X20, 8X30
EE Bobbin EE8.3(I), EE10(I), EE13(I), EE16(I)

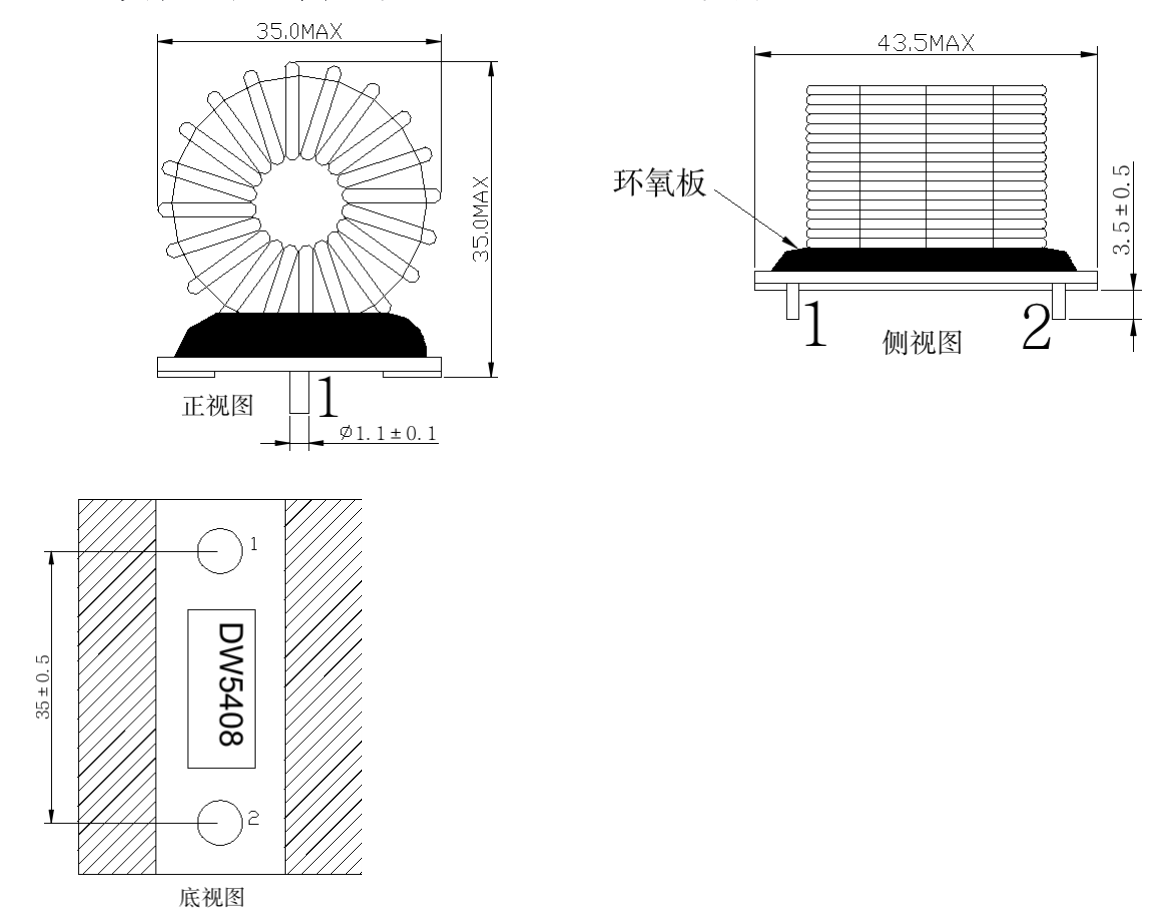

1. Drawing (Unit: mm)
T Choke DW5408 DIP Power AC Through Inductor


2. Process of Winding

Winding Start End Wire diameter TS Method of winding Insulation tape
N1 1 2 QZY-2φ1.1mm 180℃ 81 Bank winding /

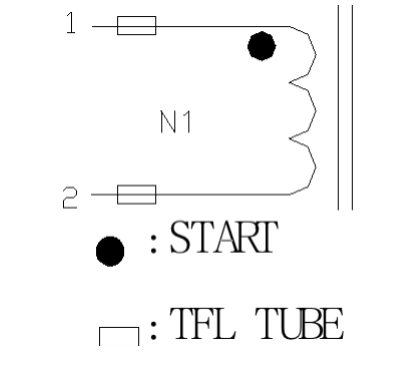

3. Schematic Diagram
T Choke DW5408 DIP Power AC Through Inductor


4. Electrical Characteristics

NO. Name Test terminal Test value Test condition Test equipment
1 Item L(1-2) 1.5mH±12% 1KHz 0.3V 25℃ TH-2816
L(1-2)DC /
2 Resistance Strength Winding to winding / 5mA 1MIN CJ2670
3 Direct current resistance DCR(1-2) 168mΩ MAX AT:25°C CH-502
4 Insulation Resistance Winding to winding 100Mohm Min DC 500V MF2511
Winding to core
5 Enameled wire grade CLASS H
6 Requirement of HSF Refer to Customer Environmental Management Material Standards List for implementation
