Specifications
Brand Name :
TIPTOP
Model Number :
DSL135
Certification :
Inspection Certificate
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
500 sets per month
Delivery Time :
5-30 days
Packaging Details :
seaworthy wooden box
Standard :
API 8C
Application :
Drilling Rig Equipment
Max. Static Load :
150 ton
Key Word :
Power Swivel
Use :
Workover and Drilling Operation
Model :
DSL100, DSL135
Description

Oil Rig Equipment Oil Well Drilling Rig Power Swivel for Workover and Drilling

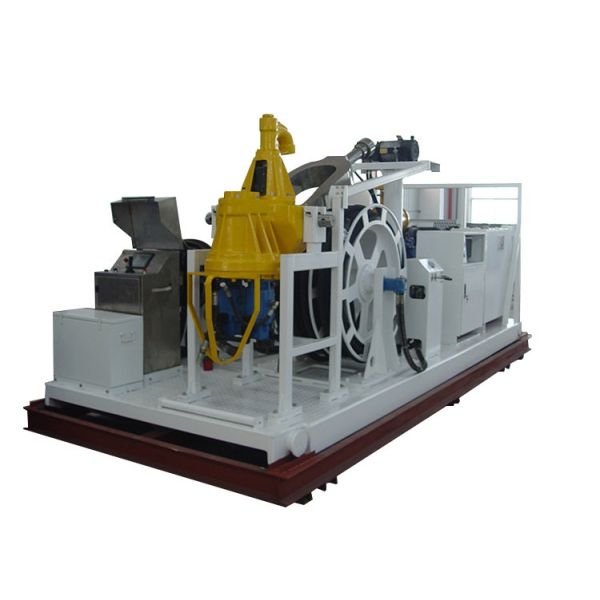

Power Swivel is the device installing on the of servicing rig, to provide rotating power. Except the use for such workover jobs as casing milling, milling, drilling cement plug and bridge plug and fishing, it is also used for sidetracking drilling, drilling open hole and coring. The product is designed and manufactured according to API 8C specifications.

Power Swivel is equipped with a hydraulic power unit with remote electric control system. All elements are set on a base seat, firm and convenient.

Features:

* Built to API 8A/8C,
* Double pin (male) alloy sub is applied as requirements
* The wash pipe and packing assembly are cartridge type and can be replaced on the floor without disconnecting the rotary hose or gooseneck
* Equipped with rotary hose joint (4 API LP)

USES:

1. Fishing and workover operations: The power unit is ideal device to supply rotary power. It is ideally suited for use for internal or external cutting of casing or drill pipe; drilling out plugs, packers, or cement; milling operations; or scraping casing. Controlled torque is essential to eliminating the potential danger of twist-offs or damage or cutting tools.

2. Drilling applications: The compact, lightweight swivel is especially suited for drilling applications including oil and gas wells, water wells, pilings for piers and foundations. Suspending the swivel from a boom or crane eliminates a great deal of set-up time or shifts to additional locations.

3. Coring operations: When use power swivel for coring operation, any length or core may be taken. Accurate and smooth torque ensures against damage to core tools or strings.

Model DSL-110 DSL-135
Max. Static Load kN 1100 1350
US ton 120 150
Dynamic Load Rating kN 600 1170
US ton 65 130
Max. Speed rpm 150 160
Max. Pressure MPa 35 35
psi 5000 5000
Torque rating N.m 6000 16270
ft .lbf 4,420 12000
Bore thru stem mm 68.26 61.91
in 2 11/16 2-7/16"
Gooseneck Connection 51/4– 4--ACME 3" NPT
Sub Connection 31/2 IF 31/2 IF
Size mm 2361X953X865 2066 X1105X550
in 93X37.5X34 81X43.5X22
Weight kg 910 1270
lb 2000 2800
