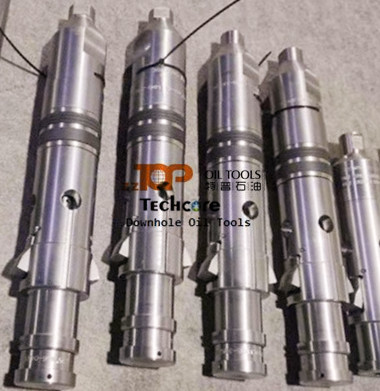

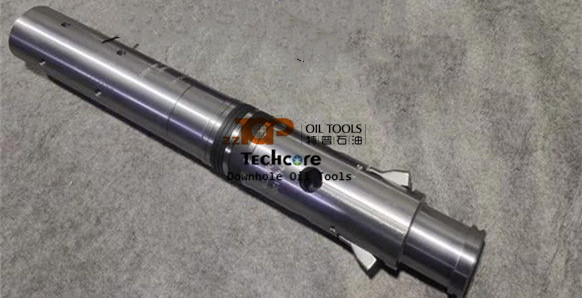

Wireline Lock Mandrel Bypass Blanking FWG Plug Anti Rust
Wireline Lock Mandrel Bypass Blanking FWG Plug Anti Rust
Wireline Lock Mandrel Bypass Blanking FWG Plug Anti Rust
Wireline Lock Mandrel Bypass Blanking FWG Plug Anti Rust
Specifications
Brand Name :
ZZ Top
Model Number :
FWG Plug
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1set
Payment Terms :
L/C, D/P, T/T, D/A, Western Union
Supply Ability :
100set/Month
Delivery Time :
4 Weeks
Packaging Details :
Plywood carton 1800x1800x400mm
Application :
Wireline Flow Control
Size :
2" - 4"
Service :
Standard/H2S
Material :
Alloy Steel
Type :
By-pass Blanking plug
Product scope :
Wireline tool string / slick line tool string
Description

Wireline Lock Mandrel FWG By-pass Blanking Plug Anti Rust FWG Plugs

The FWG plug is a kind of bypass blanking plugs which are compatible with normal wireline equipment and procedures used in wireline operation. The Bypass Blanking Plugs are designed with removable mandrels which are positive blank-off services to seal off pressure from above and below. Wireline Lock Mandrel FWG plugs are run in the by pass position to allow the passage of well fluid through the assembly, while landing the equipment in a Nipple Profile. Blanking Plugs are equipped for Bottom No-Go landing in Model “R” NonPorting Seating Nipples.

Application of FWG By-pass blanking plug

* The by-pass blanking plug is used in selected zones which can be produced or shut in.

* The FWG by-pass blanking plug is used to pressure test tubing.

* The by-pass blanking plug can be used to isolate tubing for wellhead repair or removal.

* The by-pass blanking plug can be applied for setting hydraulic actuated packers.

Specification of By-pass blanking plug / FWG plug


NO.SizeLock cylinder salvage diameterBalance bar fishing neckBalance bar fishing tool
11.875＂2＂1.375＂2＂SB
22.313＂2.5＂1.375＂2＂SB
32.813＂3＂1.375＂2＂SB
43.813＂4＂3.125＂4＂SB


Wireline Lock Mandrel Bypass Blanking FWG Plug Anti Rust Wireline Lock Mandrel Bypass Blanking FWG Plug Anti Rust

About Techore Oil Tools

With the professional Research and Development (R&D) department and skilled engineers whom were committed to the design of downhole tools for more than ten years, Techcore Oil Tools equipped with advance equipment is specialized in manufacture the oil downhole tools and its related parts in high quality.


In order to meet different requirement of downhole operation, in recent years, we joint with other factory who have accumulated abundant experiences in design and development the well completion tools, to manufacture and supply the oil well downhole tools, so that Techcore can offer one-stop purchasing service of downhole operation tools in well testing, well perforation, well completion.

Product scope:

Wireline Tool String: Rope Socket- Pear Drop, Rope Socket-Disc&Spring Type, Rope Socket- Slip Type, Swivel Joint, Heavy Duty Swivel Joint, Stem-Standard, Stem-Tungsten,Stem-Lead Filled,
Stem- Tungsten Filled, Stem-Roller, Accelerator, Link Jar, Tubular Jar, Spring Jar, Hydraulic Jar, Knuckle Jar, Breech Lock Quick Joint, BDK Heavy Duty Q.R.J, Wireline Knuckle Quick Joint, Crossover, Wireline Knuckle Joint, Heavy Duty Knuckle Joint, Spring Centralizer, Fluted Centralizer, Roller Centralizer

Wireline Pulling Tools: R Type Pulling Tool, S Type Pulling Tool, JD Type Pulling Tool, JU Type Pulling Tool, Type GO Fishing Socket, Heavy Duty Pulling Tool, GS Type Pulling Tool, GU Shear Up Adaptor, GR Type Pulling Tool, Bell Guide Se

Wireline Lock Mandrels& Running Tools
X/XN Lock Mandrel, XX Plug, PX Plug, X Running Tool, N Test Tool, X Selective Test Tool, W Lock Mandrel, S Lock Mandrel, Z Lock Mandrel, N Lock Mandrel,F Lock Mandrel, FSB Plugs, FWG Plugs,
FSG Plugs, RZG Plugs, C-1RunningTool, Soft Release Running Tool, “FB-2”Equalizing Check Valve,
“RB-2”Equalizing Check Valve, “W”Slip Lock, “D”Collar Lock, Slip Tubing Plug
