Well Testing Retrievable Bridge Plug High Pressure RBP

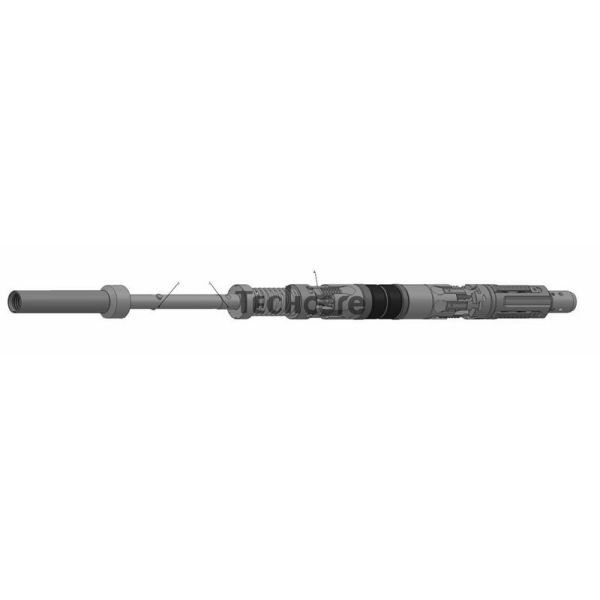

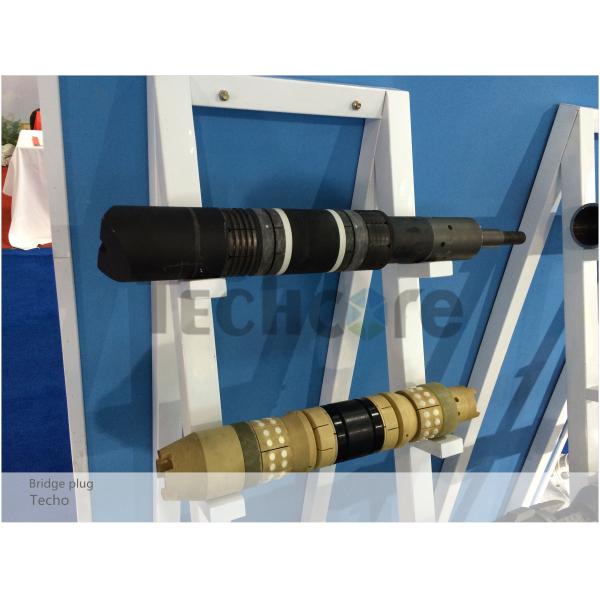

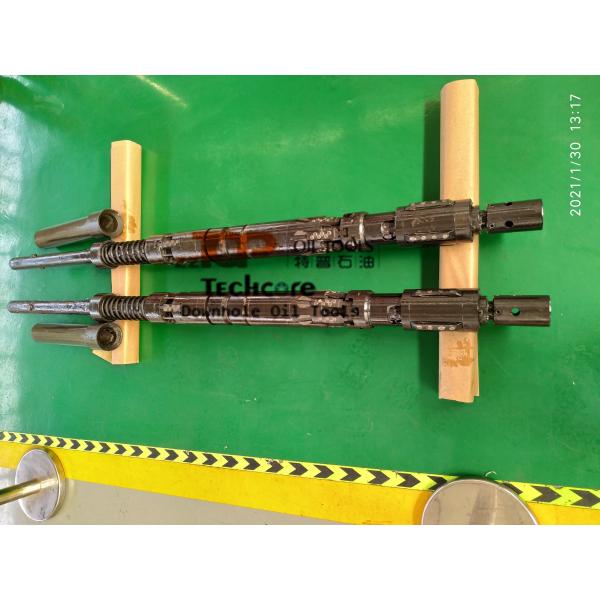

The Model 3L retrievable bridge plug is a kind of Retrievable Bridge Plug which is used in well testing operation . The retrievable bridge plugs consist of packer-type sealing elements, mechanical slips, and a large-area bypass. When setting in the hole, the Model 3L bridge plug does not move up or down the casing, regardless of pressure reversals, and the sealing elements of the retrievable bridge plug are less susceptible to damage while running in the hole because they are not in contact with the casing. With this feature, the bridge plug can be run alone on tubing or can be run below the RTTS packer or CHAMP packer.

Specification of the Model 3L retrievable bridge plug

About ZZ TOP OIL TOOLS - TECHCORE
ZZ TOP Oil Tools Co., Ltd, headquartered in Xi’an City, focused on the design and production of drill stem testing tools and wellhead equipment since 2010. With the business expanding, ZZ TOP Oil Tools jointed to build the factories for wellhead equipment under the brand " JC Wellhead" and downhole tools under the brand "Techcore".
* "JC Wellhead" was estabilished in 2010 in Yancheng city, specialized in design and manufacturing of the oilfield wellhead equipment conformed with API 6A specification.
* "Techcore Oil Tools" was re-built in 2016 in Baoji city, specialized in design and manufacturing of drill stem testing tools, coiled tubing tools, wireline tools and other downhole tools.
As the whole team, ZZ TOP is always following the principle of “ Customer First” and offers high quality products combined with excellent service, insist on “Trace-ability, Serialization” for each tools and related parts. And as the head office of JC wellhead and Techcore, focuses on marketing ,sales and after-sales, we are based on customer satisfaction.

Drill Stem Testing Tools

RTTS Serires: Full bore retrievable packer, full bore retrievable circulating valve, full bore retrievable safety joint,
Tester Valve: downhole tester valve, select tester valve, LPR- N Valve, Tubing String Tester Valve
Circulating valve: omni valve, multi-cycle circulating valve, RD Circulating valve, RD safety Circulating Valve, Hydraulic Circulating Valve
Other DST string tools: hydraulic jar, vertical shock absorber, radial shock absorber, RD safety circulating valve, high pressure retrievable packer with bypass, CHAMP packer, IPO valve, sleeve type drain valve, rupture disk sampler, super safety valve with control panel, BOP safety valve for downhole operation and so on.

Welcome to contact us for more information about the downhole tools and our best service!!
