WPCE Wellhead Pressure Control Equipment / Wireline Pressure Control Equipment Hydraulic Tool Catcher
WPCE Wellhead Pressure Control Equipment / Wireline Pressure Control Equipment Hydraulic Tool Catcher
WPCE Wellhead Pressure Control Equipment / Wireline Pressure Control Equipment Hydraulic Tool Catcher
WPCE Wellhead Pressure Control Equipment / Wireline Pressure Control Equipment Hydraulic Tool Catcher
Specifications
Brand Name :
Techcore
Model Number :
DLFP7-35
Certification :
ISO, BV
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Supply Ability :
200 sets/month
Delivery Time :
30-45 days
Packaging Details :
Polly wood, suitable for sea and air shipment
Application :
Wellhead pressure control
Material :
Alloy Steel
Working pressure :
5000 psi
Service :
Standard Oil well condiction
Standard :
NACE MR0175 & API 6A
Working Condition :
Standard
Usage :
Wireline pressure control
Connection :
ACME
Product :
HYDRAULIC TOOL CATCHER
Description

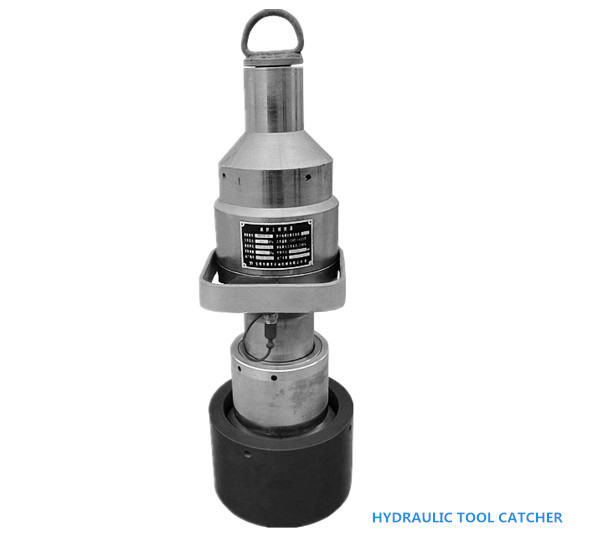

Wellhead Wireline Pressure Control Hydraulic Tool Catcher WPCE

The Hydraulic Tool Catcher is designed to engage and retain the tool top fish neck or rope socket of any tool string that has accidentally collides with the stuffing box or grease injection head, and strips off the wireline from the rope socket. It will prevent the tool string from falling downhole.

The Hydraulic Tool Catcher is released hydraulically by utilizing a hand pump

Technical parameter of ZQ-105 hydraulic tool catcher

Type:ZQ-105

Working pressure:105Mpa(15000psi)

Max. Hydraulic system working pressure:21Mpa

Cable cap size:1.25”-1.75”

Connection type: Quick Union 5 3/4”-4THD(4.000”) OTIS

Material: AISI4130/35CrMo/EE PSL3

Wokring Temp.: -29～121℃

Medium: Crude Oil, Gas, Mud, Water(H2S)


Specification of hydraulic tool catcher

Thread Seal Diameter I.D. WP (psi) To Engage Fish Neck Service
5-4ACME 3.500＂ 3.00＂ 5000 1.375＂/1.750＂ STD
5 3/4＂-4ACME 4.000＂ 3.00＂ 10000 1.375＂/1.750＂ H2S
6 1/2＂-4ACME 4.750＂ 4.00＂ 5000 1.375＂/1.750＂ STD
8 3/8＂-4ACME 5.250＂ 4.00＂ 10000 1.375＂/1.750＂ H2S

WPCE Wellhead Pressure Control Equipment / Wireline Pressure Control Equipment Hydraulic Tool Catcher

Model of the WPCE

Model DLFP3-10 DLFP3-21 DLFP5-21 DLFP6-35 DLFP7-35 DLFP8-35 DLFP10-35
Working Pressure Mpa 10 21 21 35 35 35 35
Lubricator ID mm 32 32 52 62(65) 76(78) 89 102(103)
Cable ID mm 5.6mm/8mm/11.8mm/12.7mm
Sealing Mode Grease Injection sealing + rubber element sealing+stuffing
Service Water, Crude oil, Natural gas with H2S and CO2
Working Temperature T-20(-29oC~+121oC)
WPCE Wellhead Pressure Control Equipment / Wireline Pressure Control Equipment Hydraulic Tool Catcher
About Techore Oil Tools

With the professional Research and Development (R&D) department and skilled engineers whom were committed to the design of downhole tools for more than ten years, Techcore Oil Tools equipped with advance equipment is specialized in manufacture the oil downhole tools and its related parts in high quality.

Techcore oil tools is certified by ISO, all the manufacture is strictly conformed with ISO system including Quality Control Management, Environmental Management and Occupational Health & Safety Management. For each downhole tools and each parts, we make the trace-ability from the raw material till the products. And any TPI inspection are available with us from SGS/BV/ TUV /DNV etc..

Continuous after sales service

Techcore provides the prompt after-sales service to our customers to guarantee your benefits. For the complete downhole tools, we provide the free training in our factory, and if you need the site instruction, we can appoint our technical engineer to your site for the training.

Welcome to contact us for information about the downhole tools
