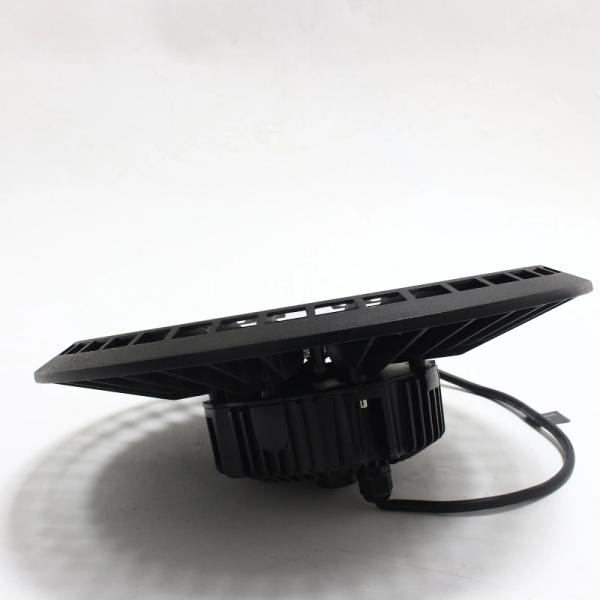

Industrial High Bay Led Light Fixture 150w Ufo 5700k Diecast Aluminium Material
Industrial High Bay Led Light Fixture 150w Ufo 5700k Diecast Aluminium Material
Industrial High Bay Led Light Fixture 150w Ufo 5700k Diecast Aluminium Material
Industrial High Bay Led Light Fixture 150w Ufo 5700k Diecast Aluminium Material
Specifications
Brand Name :
OEM
Model Number :
RNHBK005
Certification :
CE Rohs SAA
Place of Origin :
Guangdong,China
MOQ :
20
Price :
Negotiable
Payment Terms :
Western Union, T/T
Supply Ability :
500pcs/per day
Delivery Time :
7-21 work days
Packaging Details :
each lamp packed by separated inner box. than packed in 5 layers brown out Carton
Color Temperature :
Cool White
Lamp Body Material :
Aluminum Alloy
Application :
Mine, Gymnasium, Shipyard, Exhibition, Warehouse, Shopping Mall, Factory, Tunnel, Office, Workshop, Airport, Subway, Storeroom
Voltage :
110V /220~240V
Packing :
Carton,1pc/brown box
Name :
Led high bay Light
Power :
50W/100W/150W/200W/250W
Warranty :
3 years
Description

IP65/IP66/IP67 Ce/RoHS/UL 60W/80W/100W/150W/200W/250W Industrial LED High Bay Light 200W

UFO LED High Bay Light Specifications:

Power 50W 100W 150W 200W 240W
Power consumption 50W±5W 100W±5W 150W±5W 200W±5W 240W±5W
Input Voltage AC100-277V AC100-277V AC100-277V AC100-277V AC100-277V
Power Frequency 50-60Hz 50-60Hz 50-60Hz 50-60Hz 50-60Hz
Luminous Flux 7500LM (CCT=5000K) 13500LM(CCT=5000K) 22500LM(CCT=5000K) 27000LM(CCT=5000K) 27000LM(CCT=5000K)
Fixture Material Die-cast aluminum Die-cast aluminum Die-cast aluminum Die-cast aluminum Die-cast aluminum
LED Type Lumiled SMD 3030
PowerSupply Meanwell
System Efficacy 150LM/W 190LM/W (CCT=5000K)
CCT 3000K, 4000K, 5000K, 6000K, 5700K
Beam Angle 60/90/120°
CRI >80Ra
System Efficiency >90%
LED Junction Temperature <75ºC(Ta=30ºC)
Storage Temperature -40~+70ºC
Operating Temperature -30~+50ºC
Working Environment 15-90%RH
Power Efficiency >93%
Power Factor >0.93
Total Harmonic Distortion <15%
Luminaire Net Weight 3.5kg 6.2kg 8.5kg 10.5kg 10.5kg
Package Size 310*310*180mm 380*380*210mm 430*430*220mm 480*480*230mm 480*480*230mm
Certificates UL CU L DLC TUV-GS CB SAA RCM FCC CE RoHS
Life span >50000Hrs(Ta=30ºC @L70)
Ingress Protection IP65
Quality Warranty 5years
Installation Lifting, Tube, Wall Installation

Features:

1. 3030 SMD LED, 150LM/W
2. CE UL driver, 100-277VAC/100-240VAC/200-240VAC
3. Simple and elegant appearance, anodized housing, durable
4. Unique UFO shape, lighter and smaller, no reflector, saving much freight cost
5. Wide aluminium plate + large diameter PCB, heat dissipation fast and evenly
6. Two kinds of driver shape for choice: Round driver or Rectangle driver bracket
7. Optional Function: 1-10V dimmable, daylight sensor, motion sensor, microwave sensor
8. Installation Methods: suspending ring, suspending chain, supporting rod, hook, bracket (can be adjustable 180 degree)
9. Certifications: SAA, CE, RoHS
10. Warranty: Meanwell driver 5 years, UL CE driver 3 years


Technical Specifications

Size: Ф230*H155, Ф290*H158, Ф345*H160, Ф395*H165MM
LED type: Lumileds SMD 3030, LM80 TM21 certified, Up to150lm/W
Driver brand: Meanwell HBG series
Power: 50W, 100W, 150W, 200W, 240W
PF>0.95
CRI> 80
Material: Die-cast aluminum, PC lens and stainless screws
Working voltage: 100-277V
Luminous Efficiency: 150LM/W
Color temperature: 3000K, 4000K, 5000K, 6000K, 6500K
Beam Angle: 60 /90/120°
Dimmable: 0-10V dimmable
Surface color: Black/White
IP Rating: IP65
Life-span: 50, 000 hours.


Application:

Mine, Gymnasium, Shipyard, Exhibition, Warehouse, Shopping Mall, Factory, Tunnel, Office, Workshop, Airport, Subway, Storeroom


Product dispaly:

Industrial High Bay Led Light Fixture 150w Ufo 5700k Diecast Aluminium Material
