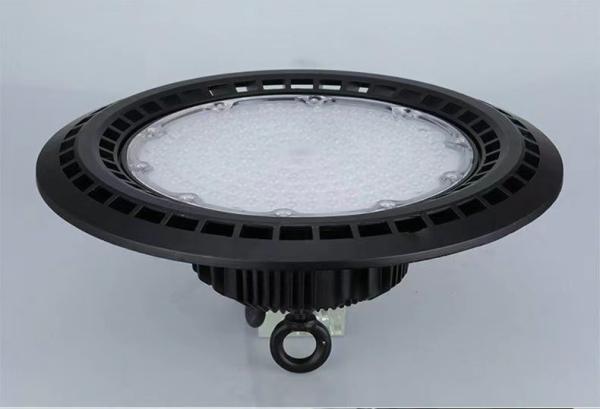

Industrial Ufo Led High Bay Light 200w 100-150lm/W SMD3030 Type
Industrial Ufo Led High Bay Light 200w 100-150lm/W SMD3030 Type
Industrial Ufo Led High Bay Light 200w 100-150lm/W SMD3030 Type
Industrial Ufo Led High Bay Light 200w 100-150lm/W SMD3030 Type
Industrial Ufo Led High Bay Light 200w 100-150lm/W SMD3030 Type
Industrial Ufo Led High Bay Light 200w 100-150lm/W SMD3030 Type
Industrial Ufo Led High Bay Light 200w 100-150lm/W SMD3030 Type
Industrial Ufo Led High Bay Light 200w 100-150lm/W SMD3030 Type
Specifications
Brand Name :
OEM
Model Number :
RNHBK003
Certification :
CE Rohs SAA
Place of Origin :
Guangdong,China
MOQ :
20
Price :
Negotiable
Payment Terms :
Western Union, T/T
Supply Ability :
500pcs/per day
Delivery Time :
7-21 work days
Packaging Details :
each lamp packed by separated inner box. than packed in 5 layers brown out Carton
Light source :
LED
Color :
Black
Material :
Aluminum
Voltage :
110V /220~240V
Packing :
Carton,1pc/brown box
Name :
Led high bay Light
Power :
50w 100W 150W 200W
Driver :
Meanwell/Done available
Description

Ufo Led Highbay IP65 For Stadium Warehouse Ufo Led Highbay 100-150lm/W High Lumen

UFO LED High Bay Light Specifications:

Power 50W 100W 150W 200W
Power consumption 100W±5W 100W±5W 150W±5W 200W±5W
Input Voltage AC100-277V AC100-277V AC100-277V AC100-277V
Power Frequency 50-60Hz 50-60Hz 50-60Hz 50-60Hz
Luminous Flux 7500LM(CCT=5000K) 13500LM(CCT=5000K) 22500LM(CCT=5000K) 27000LM(CCT=5000K)
LED Type Lumileds SMD3030
PowerSupply MeanWell/Done
System Efficacy 140-170LM/W (CCT=5000K)
CCT 4000K, 5000K, 5700K, 6000K, 6500K
Beam Angle 60 /90/120
CRI >80Ra
System Efficiency >90%
LED Junction Temperature <75ºC(Ta=30ºC)
Storage Temperature (-40~+70ºC)
Operating Temperature (-30~+50ºC)
Working Environment 15-90%RH
Power Efficiency >93%
Power Factor >0.93
Total Harmonic Distortion <15%
Dimensiones Size ¢230*H156MM ¢290*H158MM ¢345*163MM ¢395*170MM
Certificates UL CU L DLC TUV-GS CB SAA RCM FCC CE RoHS
Life span >50000Hrs(Ta=30ºC @L70)
Ingress Protection IP65
Quality Warranty 5years
Installation hanging, Lifting, Wall Installation


Features:


1. Constant Isolated driver,PF:0.9+, support no FlickeringIP65,waterproof glue sealed
2. Support 2kv,4kv,6kv,8kv,Surge prevention
3. Durable capacitor, reach 35000-50000hrs long lifespan

4. Durable stainless screw foroutdoor App
5. Big chip,high efficiency 3030 LEDsoffer 90-130lm/w,CRI:80+
6. lorizontal & vertical Air-cooled holesiesign can dissipate the heat quickly
7. Anti-UV,High light transmittancePC lens,support 60,90,120 degree
8. Two lnstallations: LED UFO high bay light can be installedin twoinstallations.option A: Ring hook, connectingstainless chain.option B: Bracket Arm, working like aflood light.

Applications:


1. Factories, industrial production workshop, warehouse;
2. Gym, stadiums, golf courses,
3. Commercial establishments, overpasses, outdoor advertising board, landmarks;
4. Stage, yard, garden, lawn, park, plaza;
5. Supermarket, shopping mall, exhibition hall;
6. Ships, airports, subways, gas station, the train station, highway toll station, dock
7. Factory, office, meeting room, conference hall, storeroom, etc.

User Manual:


Switch off power of the mains supply or respectively of the connection lead before doing any works.
Assembly must not damage or destroy conducting paths.
Make sure that the product is mounted on a stable, even and tilt-fixed background.
The complete installation must be done by an electrical expert who is familiar with the valid directives.

Quaity Control:


Stability TEST: make sure 100% of the lamps be aging test at least 48hours
Lighting TEST: make sure 100% of the lamps be lighted before packing
Drop TEST: make sure every single light have been well protected by box

Product dispaly:
