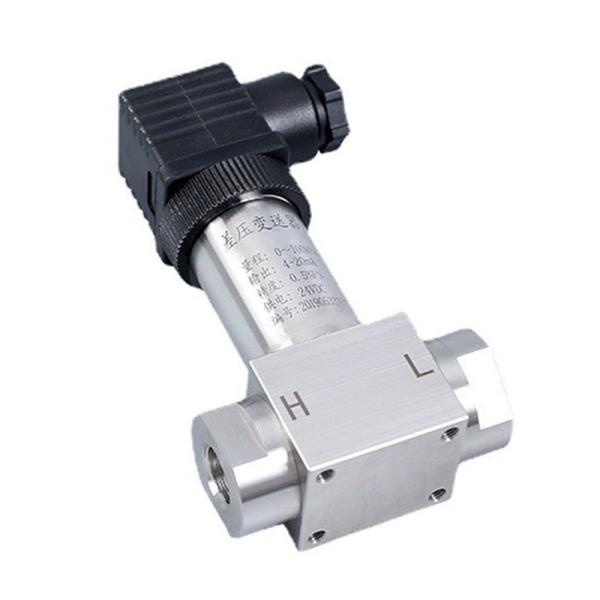

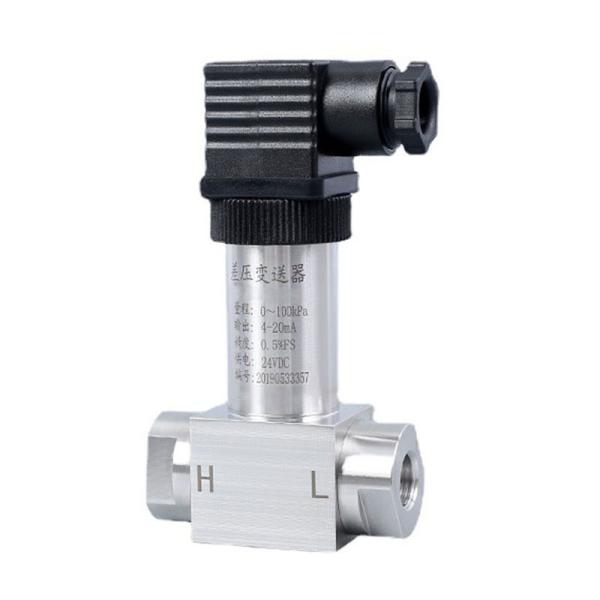

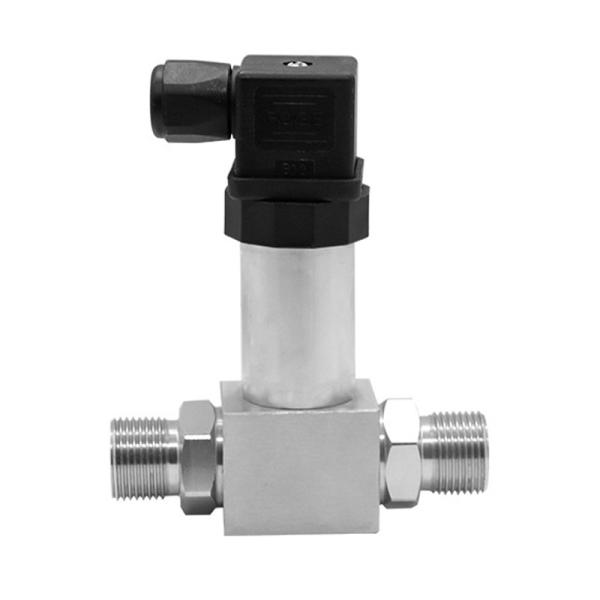

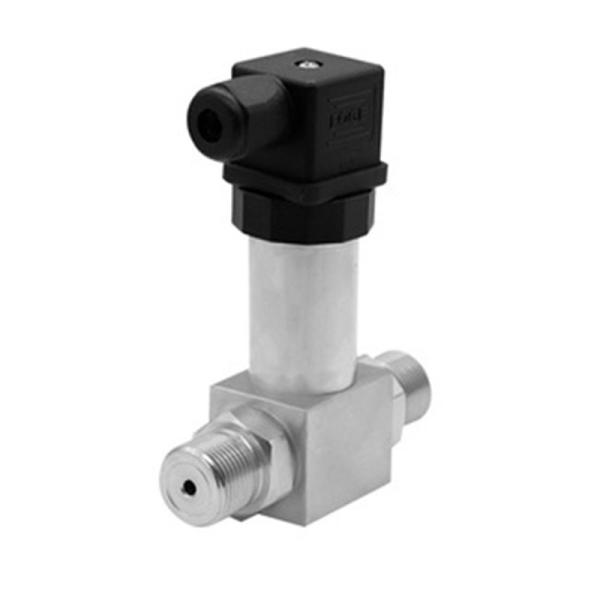

YW-150 OEM Pressure Transmitter Stainless Steel Rod Differential Pressure Sensor Transmitter
YW-150 OEM Pressure Transmitter Stainless Steel Rod Differential Pressure Sensor Transmitter
YW-150 OEM Pressure Transmitter Stainless Steel Rod Differential Pressure Sensor Transmitter
YW-150 OEM Pressure Transmitter Stainless Steel Rod Differential Pressure Sensor Transmitter
YW-150 OEM Pressure Transmitter Stainless Steel Rod Differential Pressure Sensor Transmitter
YW-150 OEM Pressure Transmitter Stainless Steel Rod Differential Pressure Sensor Transmitter
YW-150 OEM Pressure Transmitter Stainless Steel Rod Differential Pressure Sensor Transmitter
YW-150 OEM Pressure Transmitter Stainless Steel Rod Differential Pressure Sensor Transmitter
YW-150 OEM Pressure Transmitter Stainless Steel Rod Differential Pressure Sensor Transmitter
YW-150 OEM Pressure Transmitter Stainless Steel Rod Differential Pressure Sensor Transmitter
Specifications
Brand Name :
XINYI
Model Number :
YW-150
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000pcs/month
Delivery Time :
5-8 work days
Packaging Details :
carton
Product Name :
OEM Pressure Transmitter
Warranty :
1 year
customized support :
OEM, ODM, OBM
Type :
Pressure Transmitter
Material :
Stainless Steel
Output signal :
4-20mA DC
Accuracy :
0.5/0.2
Range :
0kPa~35kPa~3.5MPa
protection grade :
IP65
Description

OEM YW-150 Rod Differential Pressure Transmitter Pressure Sensor

The pressure transmitter uses a pressure resistant OEM pressure sensor with a stainless steel isolation membrane as the signal measuring element, and is automatically tested by a computer. The laser resistance adjustment process has been used to compensate for zero point and temperature performance over a wide temperature range. The signal processing circuit is located inside a stainless steel casing and converts sensor signals into standard output signals.

Diffuse silicon has a small pressure difference of 4-20mA/liquid level injection, which can replace industries such as petrochemicals, metallurgy, power, food and medicine, papermaking, and textiles. Used for detecting fluid differential pressure, pressure, liquid level, density and other parameters, and conducting tests. Convert the signal to 4-20mA. Direct current can be sent to display, calculate, regulate or control instruments, forming various automatic control systems.

1. Two-wire system, 4~20mA output
2. The parts are interchangeable, versatile and durable
3. Convenient installation, wide use occasions, outdoor and explosion-proof. Both high temperature and strong corrosive environment are acceptable.
4. The range, decimal point, unit name, high and low voltage exchange can be modified on-site, and factory settings can be restored.
5. Comply with Hart agreement.

Pressure range 0kPa ～ 35kPa…3.5MPa
Pressure type gauge pressure / absolute pressure
Power supply 12-30VDC
Output signal 4~20mA,0~5V,0~10V,485,4~20mA+hart
Operation temperature -40~85℃
Medium temperature -40~85℃
Storage temperature -40~85℃
Zero temperature drift ±0.1%FS(-20°C~85°C)
Sensitivity temperature drift ±0.1%FS(-20°C~85°C)
Overload pressure 150%FS
