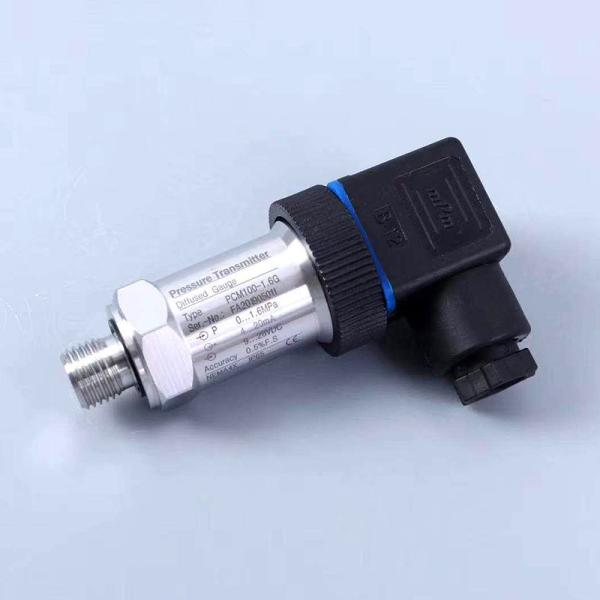

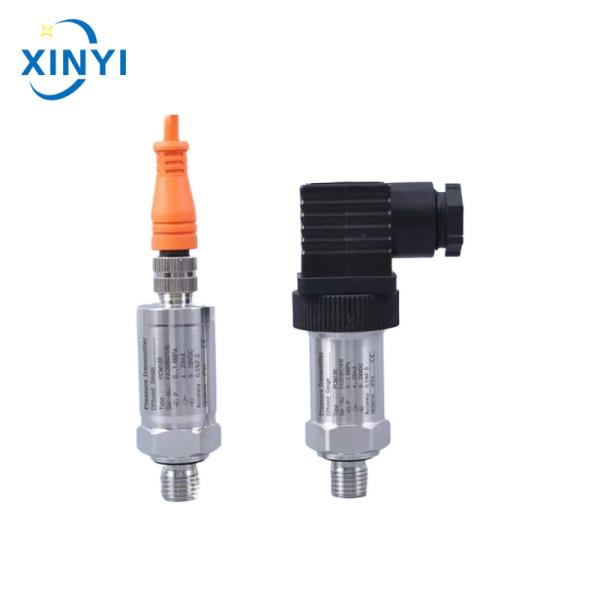

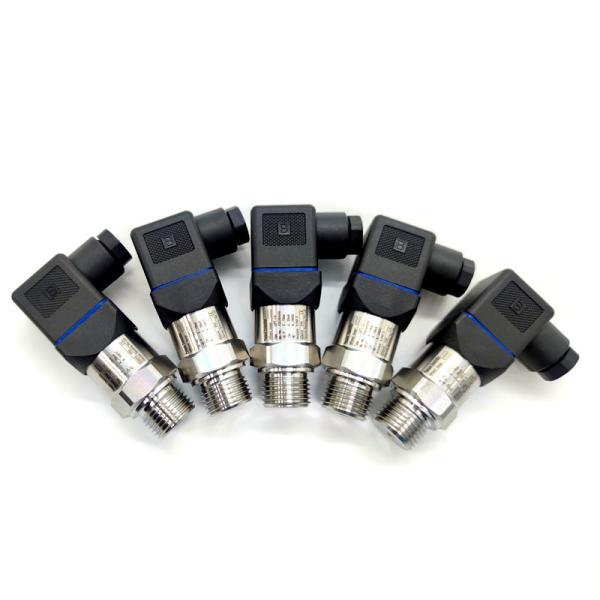

100Mpa Rod Shaped Intelligent Pressure Transmitter , Piezoresistive Pressure Transmitter 4-20ma
100Mpa Rod Shaped Intelligent Pressure Transmitter , Piezoresistive Pressure Transmitter 4-20ma
100Mpa Rod Shaped Intelligent Pressure Transmitter , Piezoresistive Pressure Transmitter 4-20ma
100Mpa Rod Shaped Intelligent Pressure Transmitter , Piezoresistive Pressure Transmitter 4-20ma
100Mpa Rod Shaped Intelligent Pressure Transmitter , Piezoresistive Pressure Transmitter 4-20ma
100Mpa Rod Shaped Intelligent Pressure Transmitter , Piezoresistive Pressure Transmitter 4-20ma
100Mpa Rod Shaped Intelligent Pressure Transmitter , Piezoresistive Pressure Transmitter 4-20ma
100Mpa Rod Shaped Intelligent Pressure Transmitter , Piezoresistive Pressure Transmitter 4-20ma
Specifications
Brand Name :
XINYI
Model Number :
YW-130
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000pcs/month
Delivery Time :
5-8 work days
Packaging Details :
carton
Product Name :
Differential Pressure Transmitter
Output signal :
4~20mA
Accuracy :
0.5/0.2
Pressure type :
Gauge pressure/absolute pressure/sealed gauge pressure
Housing :
Stainless steel
sealing ring :
VITON
protection grade :
IP65
compensation temperature :
-10℃ - +80 ℃
Description

100 MPa Rod shaped Pressure Transmitter YW-130HSM Pressure Sensor

The YW-130 piezoresistive pressure transmitter uses a piezoresistive OEM pressure sensor with a stainless steel isolation membrane as the signal measuring element, and is automatically tested by a computer. Laser resistance adjustment technology has been used to achieve zero point and temperature performance compensation over a wide temperature range. The signal processing circuit is located inside a stainless steel casing and converts sensor signals into standard output signals. The entire product has undergone rigorous testing and aging screening of components, semi-finished products, and finished products, with stable and reliable performance. This product is widely used for pressure measurement and control in industrial processes such as petroleum, chemical, metallurgical, power, and hydrology due to its excellent reliability, flexibility, and diversity.

1. Reliable performance, safe and convenient use；
2. Equipped with short-circuit protection and reverse polarity protection；
3. Can measure gauge pressure, absolute pressure, and sealing reference pressure；
4. Essentially safe products that comply with the requirements of Exia Ⅱ CT6 in the national GB3836.4 standard ；

5. Explosion proof products that meet the requirements of the national GB3836.2 standard and have obtained explosion-proof certificates；
6. The product provides a one-year warranty service；

Measurement Range
-0.1~0~0.01~100MPa
Proof pressure
≤1.5X rated pressure or 110MPa which ever is less
Long term stability
±0.1%F.S/year(typical)
±0.2%F.S/year(Max.)
Temperature Error- Zero
±0.03%F.S/℃(≤100KPa)
±0.02%F.S/℃(＞100KPa)
Temperature Error -Span
±0.03%F.S/℃(≤100KPa)
±0.02%F.S/℃(＞100KPa)
Storage Temperature Range
-40℃~120℃
Power supply
15～30VDC
Output signal
4～20mA
0～10/20mA
0/1～5/10VDC
Pressure port
M20×1.5,G1/2 or customize
Housing material
1Cr18Ni9Ti stainless steel
Diaphragm material
316L
O-ring
Fluororubber
Cable
polyethylene
Insulation resistance
100MΩ,100VDC
