Specifications
Price :
Discuss
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
500pcs/month
Delivery Time :
5-8 work days
Packaging Details :
carton packing 25*15*10cm
customized support :
OEM, ODM, OBM
brand name :
XINYIYB
material :
SS
permitted Overload :
permitted Overload Up to 1.5 times the rated range
Long term stability :
± 0.2% F.S/year (>20mH2O) ± 20mm (≤ 20mH2O)
warranty :
1 Yesr
working temperature :
-20℃~80℃
place of origin :
Shanxi, China
Storage temperature :
-40℃~120℃
Power supply :
15-30VDC (intrinsic safety type powered by safety barrier)
output signal :
4~20mA 0~10/20mA 0/1~5VDC
Shell material :
Aluminum cast, stainless steel 1Cr18Ni9Ti
Diaphragm material :
316L stainless steel
O-ring seal :
O-ring seal
Cable :
Polyethylene ventilation cable
Description

●Low-Cost LCD Display Level Transmitter | 4-20mA Input | YWKT-1B Model, OEM Available

Overview

YWKT-1B input level transmitter uses high-performance diffusion of silicon pressure sensor as a measurement element, it measures the hydrostatic pressure which is proportional to the depth of the liquid and Convert to standard current or voltage by signal processing circuit.

This transmitter is suitable for liquid level measurement in petrochemical, metallurgy, electric power, pharmaceutical, water supply and drainage systems and other industries.

●Feature

  • A variety of range options
  • Real-time liquid level display
  • Convenient to debug zero and full-scale
  • High-precision, high stability, high reliability

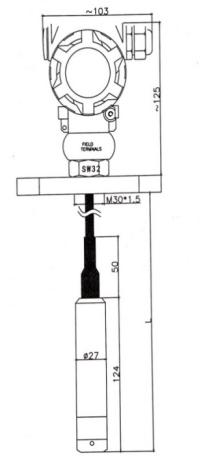

●Outline structure:(Unit: mm)

0-200m 304 0r 316L Stainless Steel H20 Liquid Level Pressure Sensor

Pressure parameter

Range

0m H2O～1m H2O…200 mH2O

Overload

2 times FS,5 times FS when less than 5 mmH2O

Electrical parameter

Output type

12～30V DC

Power supply

4mA～20mA DC(2 wire)

Load resistance

≤(U-12)/0.02Ω(2 wire)

Structural parameter

Housing

SS

Sensor

SS 316L

Sealed-ring

Viton

Cable

∅7.5mm Polyethylene special cable

Protection class

IP65(sensor)

IP68(housing)

Ambient parameter

Media applicability

Fluid which has no corrosion to Stainless steel 316L and viton

Compensation temperature

-10℃～80℃

medium temperature

-30℃～85℃

Storage temperature

-40℃～125℃

Performance index

Accuracy

±0.1％FS(Mix.)

±0.25％FS(Typ.)

±0.5％FS(Max.)

Zero temperature coefficient

±0.05％FS/℃(≤5 mH2O)

±0.02％FS/℃(＞5 mH2O)

Full temperature coefficient

±0.05％FS/℃(≤5 mH2O)

±0.05％FS/℃(＞5 mH2O)

Long term stability

±0.2%FS/year(Max)
