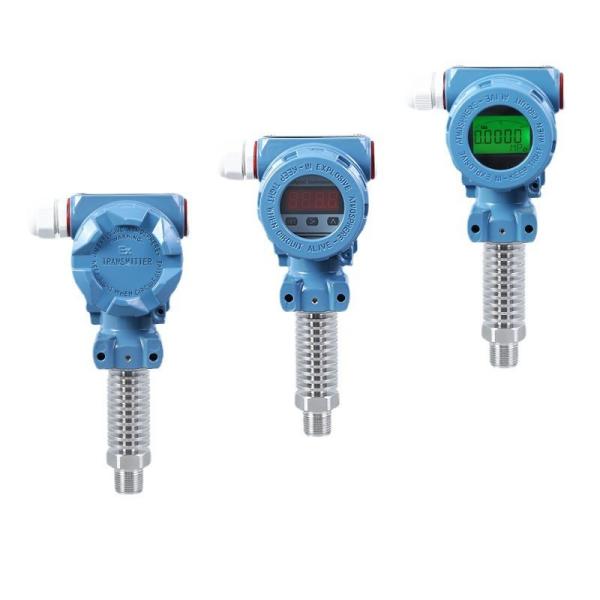

YW-140G Stainless Steel High Temperature Pressure Transmitter With Digital Display
YW-140G Stainless Steel High Temperature Pressure Transmitter With Digital Display
YW-140G Stainless Steel High Temperature Pressure Transmitter With Digital Display
YW-140G Stainless Steel High Temperature Pressure Transmitter With Digital Display
YW-140G Stainless Steel High Temperature Pressure Transmitter With Digital Display
YW-140G Stainless Steel High Temperature Pressure Transmitter With Digital Display
YW-140G Stainless Steel High Temperature Pressure Transmitter With Digital Display
YW-140G Stainless Steel High Temperature Pressure Transmitter With Digital Display
Specifications
Brand Name :
XINYIYB
Model Number :
YW-140G
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000pcs/month
Delivery Time :
5-8 work days
Packaging Details :
carton
Type :
High Temperature Pressure Transmitter
material :
Stainless Steel
Product Name :
Pressure Transmitter
Output signal :
4~20mA
Measuring range :
-0.1-0-60mpA
Overload pressure :
1.5x
Display method :
5-digit LCD
compensation temperature :
-10 ℃~80 ℃
connect :
M20 * 1.5 (other threads optional)
power supply :
18V~32VDC
Description

YW-140G High Temperature Digital Display LCD Intelligent Pressure Transmitter

The high-temperature pressure transmitter uses a high-temperature resistant pressure sensor as the signal measurement component. The pressure of the measured medium is transmitted to the sensor through the heat dissipation structure on the pressure transmitter. The high-precision signal processing circuit is located inside the stainless steel housing and converts the sensor output signal into a standard output signal. The entire product has undergone strict testing and aging screening of components, semi-finished products, and finished products, with stable and reliable performance, enabling the product to work stably for a long time when used for high-temperature pressure measurement. Widely used in harsh outdoor environments such as petroleum, chemical, boiler, sterilization tank, etc., it can also display on-site pressure and reset to zero.

316L stainless steel isolation membrane;
Select imported high-temperature resistant chips;
Durable and well sealed aluminum alloy junction box for outdoor installation and use;
LED digital tube and LCD display are optional;
LED digital tube and LCD display are optional;
Designed with heat sink, high temperature resistance, suitable for media up to 300 ℃;

Range of measurement -100kPa... 0~1kPa... 100MPa
Output signal 4~20mA,0~5V,0~10V
Power supply 12~24VDC (typical)
Accuracy class 0.5%FS,0.2%FS,0.1%FS
Compensation temperature -10~70℃
Operation temperature -20~250℃
Zero temperature drift 0.5%FS(MAX)
Sensitivity temperature drift 0.5%FS(MAX)
Mechanical Shock 20g(20~5000HZ)

Long term stability

 ≤ 0.2% FS/year
