Static Perimeter P 16mm LED Display Billboard Adjustable standing with 2R1G1B Epistar LED
Static Perimeter P 16mm LED Display Billboard Adjustable standing with 2R1G1B Epistar LED
Static Perimeter P 16mm LED Display Billboard Adjustable standing with 2R1G1B Epistar LED
Static Perimeter P 16mm LED Display Billboard Adjustable standing with 2R1G1B Epistar LED
Static Perimeter P 16mm LED Display Billboard Adjustable standing with 2R1G1B Epistar LED
Static Perimeter P 16mm LED Display Billboard Adjustable standing with 2R1G1B Epistar LED
Static Perimeter P 16mm LED Display Billboard Adjustable standing with 2R1G1B Epistar LED
Static Perimeter P 16mm LED Display Billboard Adjustable standing with 2R1G1B Epistar LED
Specifications
Place of Origin :
China
Brand Name :
Dreamway
Certification :
CE,ROHS
Model Number :
P16
MOQ :
negotiable
Price :
negotiable
Packaging Details :
Flight case
Delivery Time :
20 days after receiving the deposit
Payment Terms :
T/T
Supply Ability :
2000sq.m/Month
Description

Perimeter LED Display of 16mm Pixel Pitch with 2R1G1B Epistar LED

Quick Detail:

1. 2R1G1B LED composition;

2. RGB is Epistar chip;

3. MBI5024 LED drive IC;

4. 16×8 dots per module;

5. 256×128 mm for size;

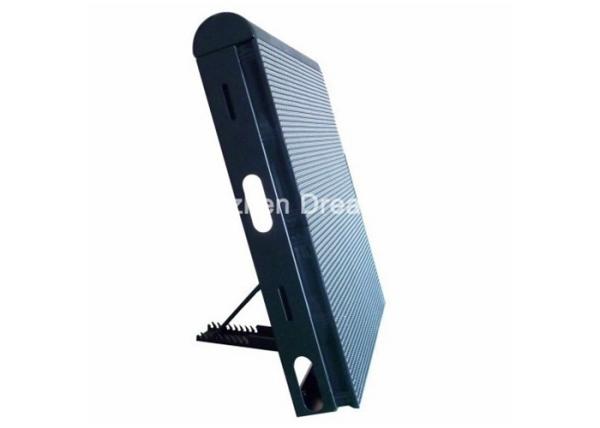

6. Adjustable standing support.

Detail Description:

Over 7500 nits per square meter ensures good view effect even from far away;

Tender material above the cabinet to protect the cabinet;

Power distribution box could be offered if needed.

Application:

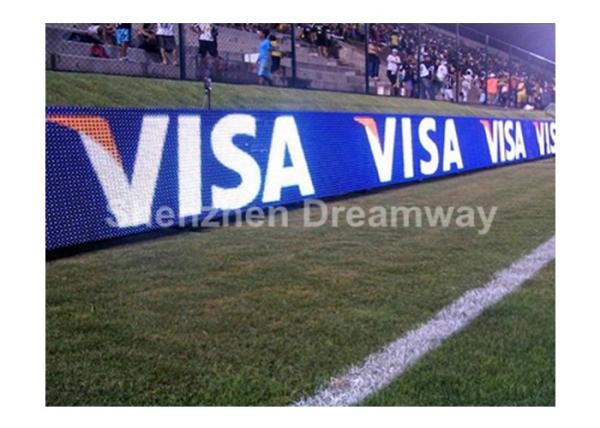

It is for showing ads around the stadium.

Specifications:

Model

PH16

LED Composition

2R1G1B

LED Chip

EPISTAR

Pixel

3,906 dots/sq.m

Module Pixel

W 16 × H 8

Module Size

W 256 × H 128 mm

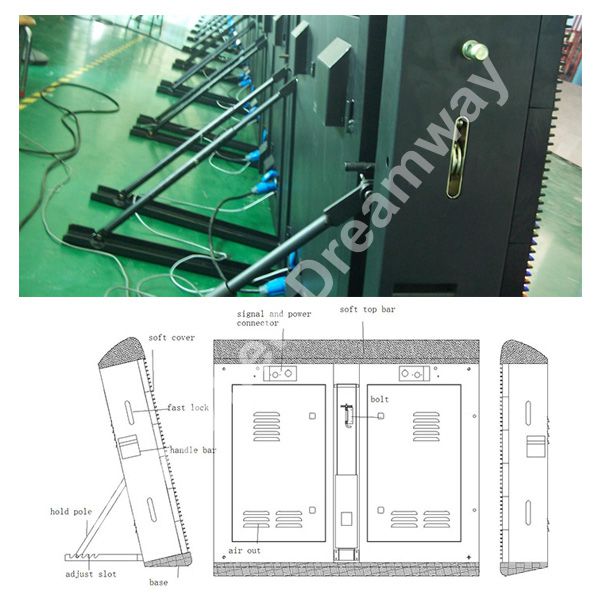

Cabinet Material

Steel cabinet, with support standing

Driving Method

Static scanning

Brightness

≥7500 nits/sq.m

Refresh Rate

1200~4000 Hz

Driving IC

MBI5024

Earth Leakage Current

＜2mA

MTBF

＞5,000 hours

LED Life Span

＞100,000 hours

Power Supply

110V/60HZ and 220V/50HZ interchangeable

Humidity

10%~90%

Control Method

Synchronous control

Input Signal

DVI, COMPOSITE VIDEO, S-VIDEO, HDMI


Static Perimeter P 16mm LED Display Billboard Adjustable standing with 2R1G1B Epistar LED
