P16 Soccer Stadium LED Display DIP 546 MBI5024 , Live Broadcast Sport LED Display Boards
P16 Soccer Stadium LED Display DIP 546 MBI5024 , Live Broadcast Sport LED Display Boards
P16 Soccer Stadium LED Display DIP 546 MBI5024 , Live Broadcast Sport LED Display Boards
P16 Soccer Stadium LED Display DIP 546 MBI5024 , Live Broadcast Sport LED Display Boards
P16 Soccer Stadium LED Display DIP 546 MBI5024 , Live Broadcast Sport LED Display Boards
P16 Soccer Stadium LED Display DIP 546 MBI5024 , Live Broadcast Sport LED Display Boards
P16 Soccer Stadium LED Display DIP 546 MBI5024 , Live Broadcast Sport LED Display Boards
P16 Soccer Stadium LED Display DIP 546 MBI5024 , Live Broadcast Sport LED Display Boards
Specifications
Place of Origin :
China
Brand Name :
Dreamway
Certification :
CE,ROHS
MOQ :
negotiable
Price :
negotiable
Packaging Details :
Plywood case
Delivery Time :
20 days after receiving the deposit
Payment Terms :
T/T
Supply Ability :
2000sq.m/Month
Model Number :
P16
Description

P16 Soccer Stadium LED Display DIP 546 MBI5024 , Live Broadcast Sport LED Display Boards

Quick Detail:

1. 16×16 dots;

2. 256×256 mm LED module size;

3. 2R1G1B LED;

4. OPTO / SILAN;

5. MBI5024 driving IC;

6. More than 8000 nits / sq.m.

Detail Description:

Steel water resistance cabinet;

Video processor used to process video, and obtain input signals like S-VIDEO, HDMI, DVI, etc;

Automatic brightness control could be achieved.

Application:

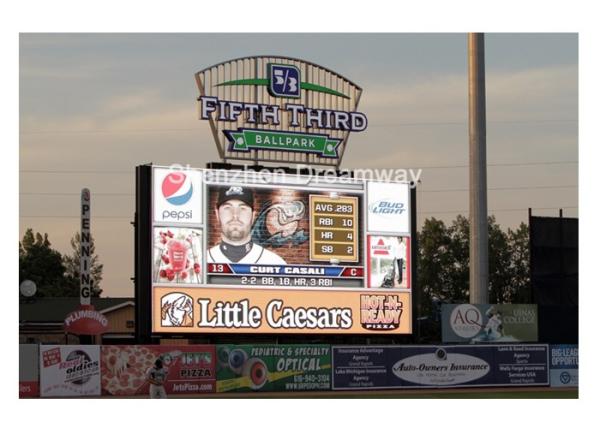

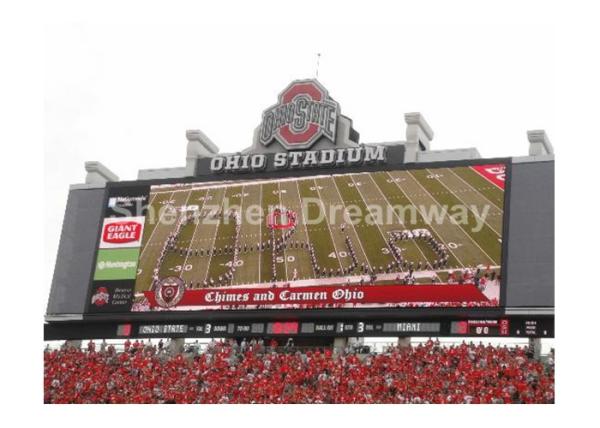

It is used for stadium advertising of live broadcast generally.

Specifications:

Pixel Pitch

16mm

LED Composition

2R1G1B

LED Type

DIP546

Resolution

3,906 dots/sq.m

LED Module Pixel

W 16 × H 16

LED Module Size

W 256 × H 256 mm

Cabinet Material

Steel waterproof cabinet

Driving Method

Static scan

Brightness

≥8000 nits/sq.m

Refresh Rate

≥1200 Hz

Out of Control Dot Rate

＜0.0001

Earth Leakage Current

＜2mA

MTBF

＞5,000 hours

LED Life Span

＞100,000 hours

Power Supply

110V/60HZ and 220V/50HZ interchangeable

Humidity

10%~90%

Control Method

Synchronous control with PC on

Input Signal

DVI, COMPOSITE VIDEO, S-VIDEO, HDMI


P16 Soccer Stadium LED Display DIP 546 MBI5024 , Live Broadcast Sport LED Display Boards
