P 16mm Football Stadium LED Display Advertisement 8000 nits With S-VIDEO / HDMI
P 16mm Football Stadium LED Display Advertisement 8000 nits With S-VIDEO / HDMI
P 16mm Football Stadium LED Display Advertisement 8000 nits With S-VIDEO / HDMI
P 16mm Football Stadium LED Display Advertisement 8000 nits With S-VIDEO / HDMI
P 16mm Football Stadium LED Display Advertisement 8000 nits With S-VIDEO / HDMI
P 16mm Football Stadium LED Display Advertisement 8000 nits With S-VIDEO / HDMI
P 16mm Football Stadium LED Display Advertisement 8000 nits With S-VIDEO / HDMI
P 16mm Football Stadium LED Display Advertisement 8000 nits With S-VIDEO / HDMI
Specifications
Place of Origin :
China
Brand Name :
Dreamway
Certification :
CE,ROHS
Model Number :
P16
MOQ :
negotiable
Price :
negotiable
Packaging Details :
Plywood case
Delivery Time :
20 days after receiving the deposit
Payment Terms :
T/T
Supply Ability :
2000sq.m/Month
Description

P 16mm Football Stadium LED Display Advertisement 8000 nits With S-VIDEO / HDMI

Quick Detail:

1. Red is OPTO, green and blue is SILAN;

2. MBI5024 LED drive IC;

3. Static scan driving mode;

4. Auto brightness control could be available;

5. Synchronization control;

6. 2 years quality warrant.

Detail Description:

IP65 grade waterproof cabinet;

Auto luminance change is according to external environment;

Spare parts would be provided based on quantity.

Application:

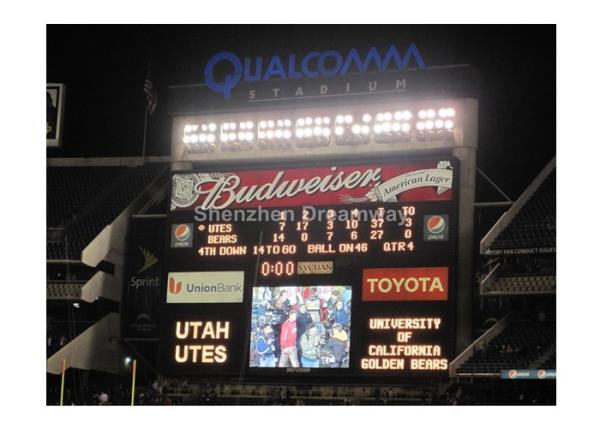

It is installed for football stadium advertising.

Specifications:

Model

P 16

LED Composition

2R1G1B

LED Type

DIP546

Resolution

3,906 dots/sq.m

Module Pixel

W 16 × H 16

Module Size

W 256 × H 256 mm

Cabinet Material

Steel waterproof cabinet

Driving Method

Static scan

Brightness

More than 8000 nits/sq.m

Refresh Rate

More than 1200 Hz

Out of Control Dot Rate

＜0.0001

Earth Leakage Current

＜2mA

MTBF

＞5,000 hours

LED Life Span

＞100,000 hours

Power Supply

110V/60HZ and 220V/50HZ interchangeable

Humidity

10%~90%

Control Method

Synchronous control with PC on

Input Signals

DVI, COMPOSITE VIDEO, S-VIDEO, HDMI

Advertising Stadium LED Display, Live Broadcast Stadium LED Display, High Quality Stadium LED Display
