8000 nits PH16 Electronic Outdoor Advertising LED Display IP65 Water Resistance For School
8000 nits PH16 Electronic Outdoor Advertising LED Display IP65 Water Resistance For School
8000 nits PH16 Electronic Outdoor Advertising LED Display IP65 Water Resistance For School
8000 nits PH16 Electronic Outdoor Advertising LED Display IP65 Water Resistance For School
8000 nits PH16 Electronic Outdoor Advertising LED Display IP65 Water Resistance For School
8000 nits PH16 Electronic Outdoor Advertising LED Display IP65 Water Resistance For School
Specifications
Place of Origin :
China
Brand Name :
Dreamway
Certification :
CE,ROHS
Model Number :
P16
MOQ :
negotiable
Price :
negotiable
Packaging Details :
Plywood case
Delivery Time :
20 days after receiving the deposit
Payment Terms :
T/T
Supply Ability :
2000sq.m/Month
Description



8000 nits PH16 Outdoor Advertising LED Display with IP65 Water Resistance


Quick Detail:

1. OPTO / SILAN;
2. Not less than 8000 CD/sq.m;
3. MBI5024 IC;
4. 16 by 16 pixels for one LED module;
5. Composed of 1R1G1B;
6. Black steel waterproof cabinet with IP65.


Detail Description:

Taiwan OPTO / SILAN LED, MBI LED driver, long using life;
Could still work under severe cold weather like in Russia;
Large LED display brings more profit for your advertising.


Application:

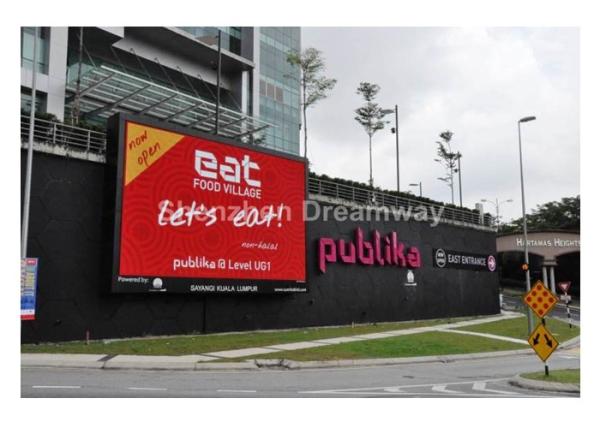

It is mounted on wall, ground, shopping mall, commercial plaza, school for outdoor advertising.

Specifications:

Pixel Pitch

16mm

LED Composition

2R1G1B

LED Type

DIP546

Resolution

3,906 dots/sq.m

Module Pixel

W 16 × H 16

Module Size

W 256 × H 256 mm

Standard Cabinet Size

W 1024 × H 768 mm

LED Box Color

Black

LED Box Material

Steel waterproof box

Drive Mode

Static scan

Brightness

≥8000 CD/sq.m

Refresh Rate

≥800Hz

Out of Control Dot Rate

＜0.0001

Earth Leakage Current

＜2mA

MTBF

＞5,000 hours

LED Life Span

＞100,000 hours

Power Supply

110V/60HZ and 220V/50HZ interchangeable

Humidity

10%~90%

Control Method

Synchronization control with PC on

Operation System

Win2000 / XP / Vista
