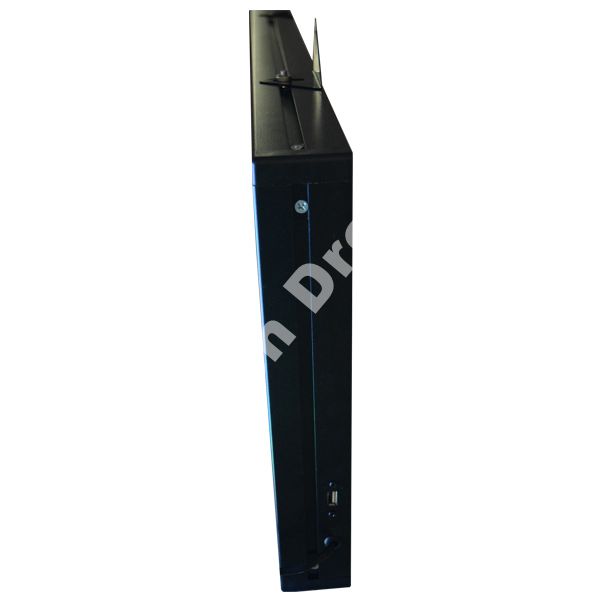

USB Control PH5 Indoor Full Color LED Moving Display Board with 192×64 pixels
USB Control PH5 Indoor Full Color LED Moving Display Board with 192×64 pixels
USB Control PH5 Indoor Full Color LED Moving Display Board with 192×64 pixels
USB Control PH5 Indoor Full Color LED Moving Display Board with 192×64 pixels
USB Control PH5 Indoor Full Color LED Moving Display Board with 192×64 pixels
USB Control PH5 Indoor Full Color LED Moving Display Board with 192×64 pixels
USB Control PH5 Indoor Full Color LED Moving Display Board with 192×64 pixels
USB Control PH5 Indoor Full Color LED Moving Display Board with 192×64 pixels
Specifications
Brand Name :
Dreamway
Model Number :
P5
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
2000sq.m/Month
Delivery Time :
20 days after receiving the deposit
Packaging Details :
Plywood case
Model :
P5
LED Type :
SMD2121
Module Pixel :
64 × 32 dots
Module Size :
320 × 160 mm
Screen Size :
960 × 320 mm
Width :
55 mm
Control Method :
USB
Package :
Plywood case
Description


USB Control PH5 Indoor Full Color LED Moving Display Board with 192×64 pixels


Quick Detail:

1. 960 × 320 mm screen size;
2. 3 × 2 pcs LED modules;
3. 192 × 64 pixels in total;
4. Aluminum profile with composite panel at the back;
5. Standard plug would be provided;
6. Easy installation.


Detail Description:

This is P5 type, SMD2121, with 960 by 320 mm screen size, 192 by 64 pixels;
It is controller by USB, and could be also by WIFI;
The aluminum profile is designed specially for customers to install easily.


Application:

Such LED moving message display board is for indoor or on the doorway to show text, graphic, etc.


Specifications:

Type

PH5

LED Type

SMD2121

Screen Size

W 960 × H 320 × T 55 mm

LED Module Quantity

W 3 × H 2 = 6 pcs

LED Module Pixel

W 64 × H 32

LED Module Size

W 320 × H 160 mm

Resolution

W 192 × H 64

Cabinet Material

Aluminum profile

Driving Method

1/16 scan

Luminance

≥1,200 CD/㎡

LED Composition

1R 1G 1B

Out of Control Dot Rate

＜0.0001

Earth Leakage Current

＜2mA

MTBF

＞5,000 hours

Life Span

＞100,000 hours

Power Supply

Chuanglian

Standard

CE

Control Method

USB / WIFI

Warranty

2 years


USB Control PH5 Indoor Full Color LED Moving Display Board with 192×64 pixels

P5 Indoor LED Moving Message Display Board, LED Text Display, Moving LED Board
